CBM-3 Installation Mic



Rated 0 out of 5
(be the first to review)

Galaxy Audio’s extremely versatile 57-inch Carbon Boom Microphone is an aesthetically sleek miking system for choirs, presentations, orchestras, ensembles, plays, drum overheads, and ambient instrument / audience miking. The CBM-324 includes three easy-replace interchangeable mic elements: Omni, Cardioid, and Super Cardioid. Simply change the mic element for use in multiple performance applications. Galaxy Audio’s condenser elements offer transparent, smooth, articulate sound reproduction. The cardioid polar pattern is a popular choice because they are sensitive enough to capture the voices of up to 20 singers per microphone. In addition the mic end has a 2.5 inch flexible gooseneck so you can point the mic exactly where you need it.

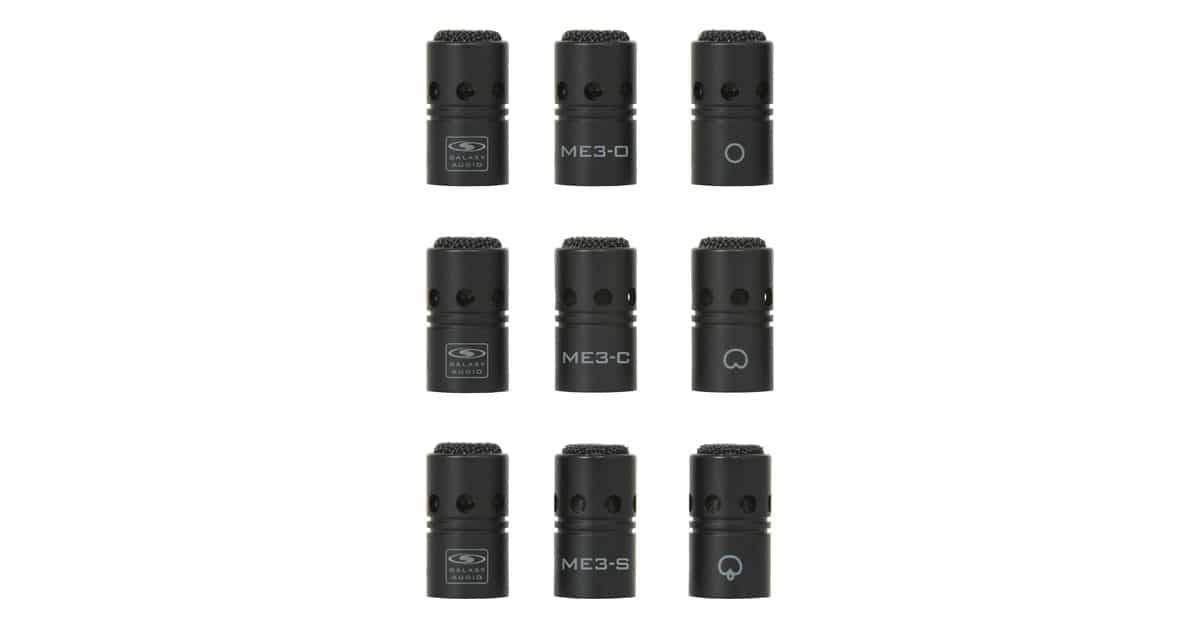

The CBM-3 is available in four models, the CBM-324 with a 24″ tall mic stand, the CBM-362 with a 62″ tall mic stand and the Dual Boom models with included Carbon Boom Microphone T-Bar, CBM-324D & CBM-362D. The CBM-3 back electret condenser microphone includes 3 interchangeable elements, Omni-Directional (ME3-O) Cardioid (ME3-C), and Super Cardioid (ME3-S).

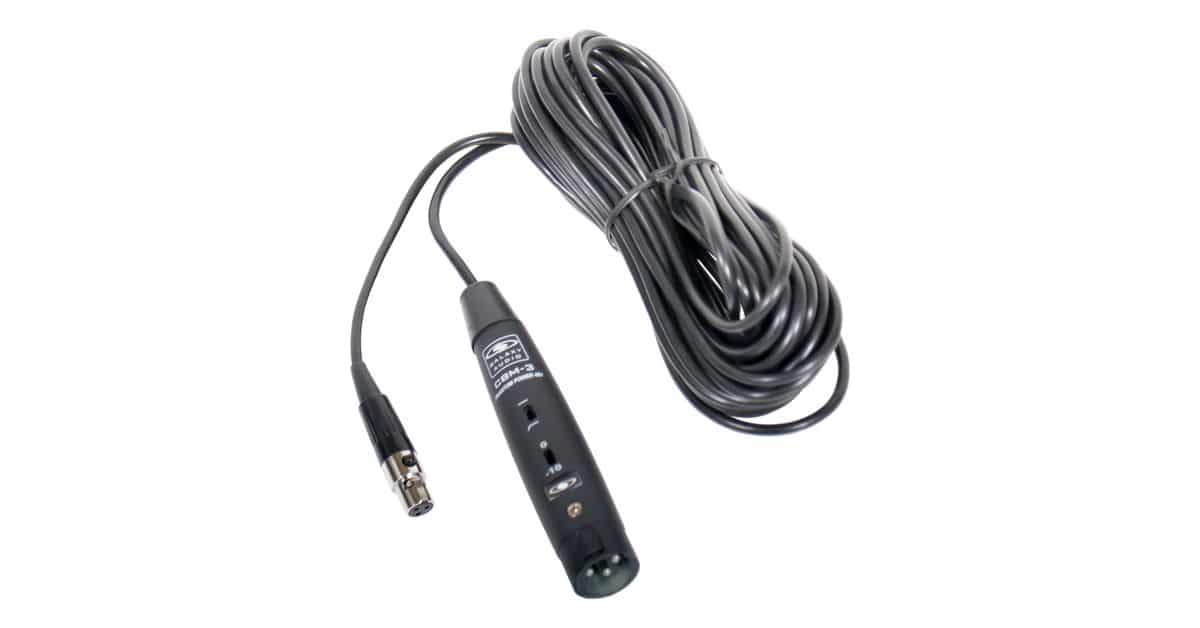

The flexible light weight carbon boom makes remote miking easy. The included mini XLR to XLR cable has a recessed 10dB pad and 80Hz Low Frequency Roll Off Switch.

The CBM offers more flexibility and ease of use than permanently installed hanging choir mics, where mic positioning may change over time due to a relaxing cable or air currents from ventilation systems.

Applications: choirs, presentations, orchestras, ensembles, plays, drum overheads, ambient instrument / audience miking.


Life Saver Sand/Water Bag LSR38

The Galaxy Audio Life Saver is a unique equipment stand stabilizer that may be used in a variety of ways in Audio, Video, Lighting, and Theatre applications. Any mic or speaker stand may become unstable because of a top-heavy center of gravity, a boom extended laterally, or simply because the stand is set on an uneven surface. When filled with Sand or Water the Life Saver provides enough weight at the bottom to stabilize most mic and speaker stand applications. The doughnut shape of the LSR38 ensures that the Life Saver will stay on the base of the stand, even if the stand is pushed or bumped. The LSR38 weighs 38lbs. when filled with sand, and 22lbs. when filled with water. The durable reinforced vinyl material and easy-fill water tight design allow the user to transport the Life Saver empty, and fill with water on location. The LSR38 dimensions are: 16" O.D. x 6" I.D. x 3" Thick. The Life Saver will pay for itself the first time it prevents your expensive mics or speakers from hitting the floor. (Sand/water not included)

  • May be filled with sand or water
  • Protects mics and speakers from damage
  • Helps keep microphone, speaker and lighting stands upright
  • Sand/Water not included
  • Unique doughnut shape keeps bag on the stand

Saddle Bag Sand/Water Bag SDB40

The Saddle Bag Sand/Water Bag is designed to help improve the stability of speaker, keyboard, mic, lighting stands and many other types of stands. Also great as a boom counterweight. The Saddle Bag is constructed of a durable reinforced vinyl. When filled with sand (not included) the Saddle Bag weighs approximately 45lbs and 28lbs when filled with water. The filled Saddle Bag will help stabilize a top- heavy stand.

Works great on keyboard, speaker, mic, lighting, and many other types of stands.

Great for: bands, churches, theater, broadcast, recording & video production

  • Dual wing design
  • Nylon handle with clip
  • May be filled with sand or water
  • Helps protect equipment from damage and keeps stands upright and stable

Sand can be acquired at most home improvement centers, concrete supply warehouses, landscaping supply houses or a sand blasting supply company. Tip: Coarse dry commercial sand works best. Use a funnel for faster fills. Equipped with large 1-inch inner diameter plugs for ease of filling.

1. We are not responsible for any damage caused by the use or misuse of the bag.
2. The water filled bag should not be used near electrical wiring.
3. Only dry sand should be used in a dry bag.
4. Water should not be left in the bag for long periods.
5. Do not subject the bag to freezing weather when filled with water.
6. The bag is not intended as a flotation device.

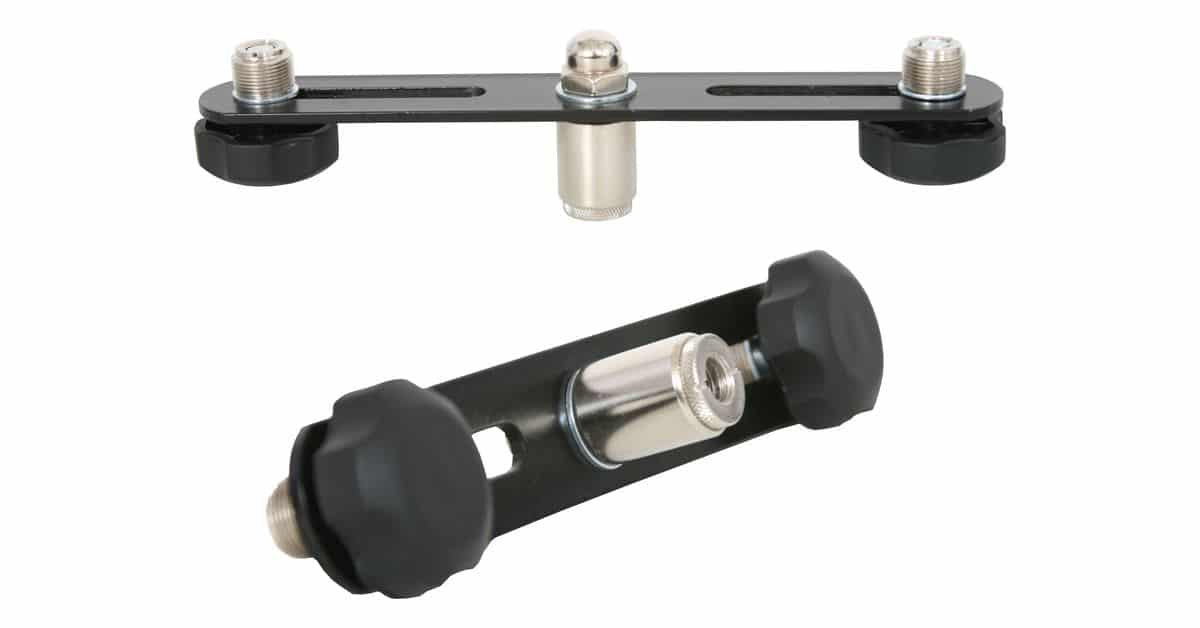

T-Bar for use with Galaxy Audio Carbon Boom Microphones. Will hold 2 Carbon Boom Mics at one time. Mounts to most mic stands.

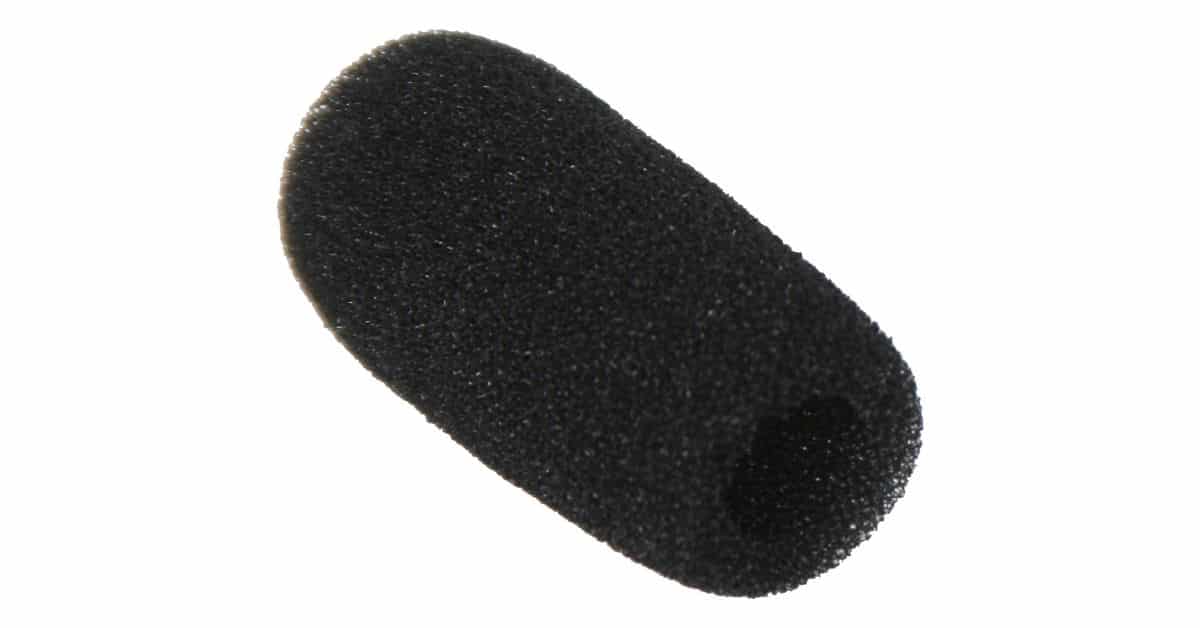

CBM3 Windscreens WS-CBM3

Replacement Windscreen for the CBM-3 Mic.

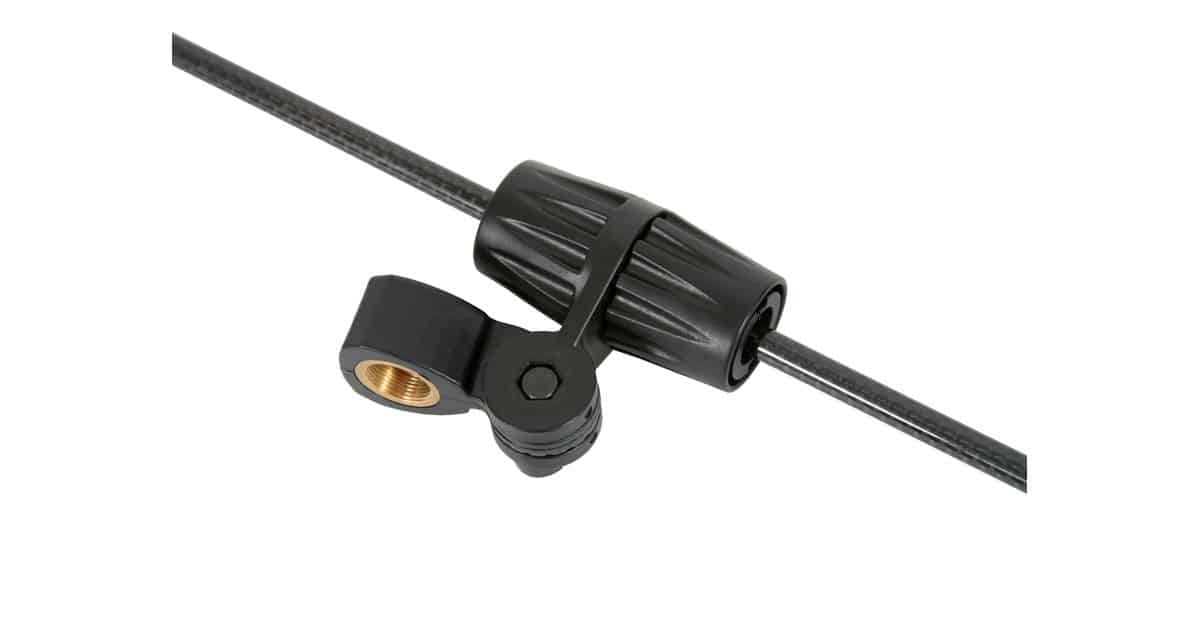

Mic Stand Adaptor CBM-MSA

Microphone Stand Adaptor for use with Galaxy Audio Carbon Boom Microphones. Works with the CBM-3 & CBM-5 models.


24-inch extendable boom mic stand with base for use with Galaxy Audio Carbon Boom Microphones. Extends from 14.5" - 24.0" tall.


Adjustable microphone stand for use with Galaxy Audio Carbon Boom Microphones. Extends from 35.0" - 62.0" tall.


Type Back Electret Condenser
Boom length including Mic Capsule 56.9" Total - Includes Mic Capsule and 2.5" Flexible goose neck for better aiming the mic capsule
Impedance 200 ohms
Frequency Response 15Hz~18kHz
Sensitivity -36dB (15.8mV/Pa) 0dB=1V,1kHz

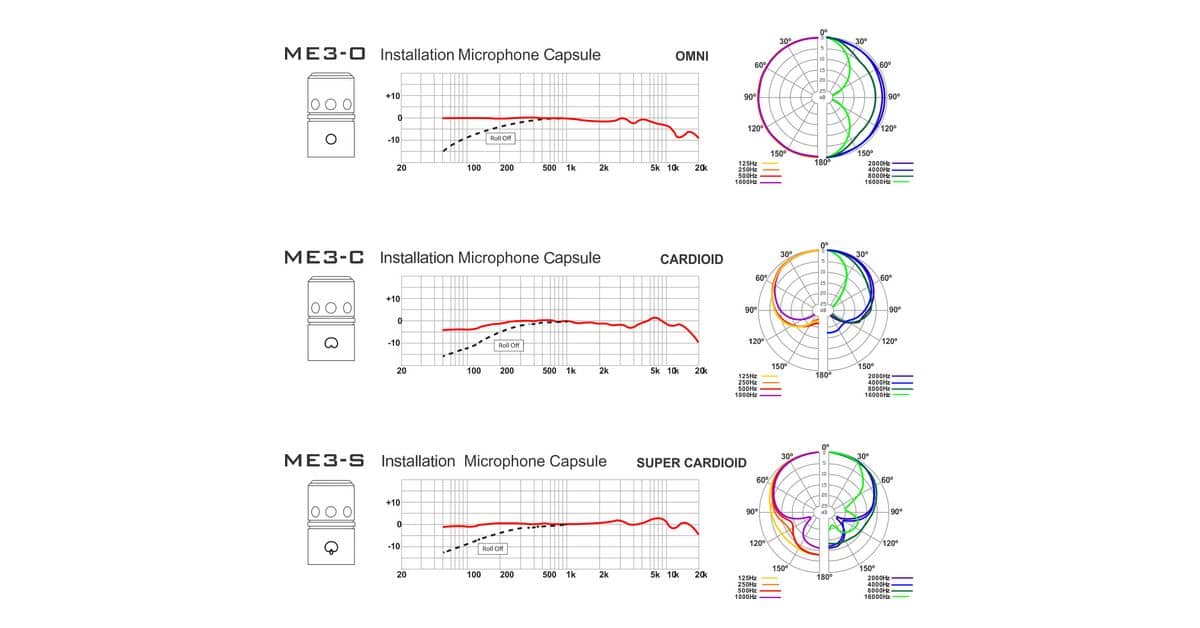

Polar Pattern Cardioid, Supercardioid & Omnidirectional
Max SPL for 1% T.H.D. 125dB
Connector 3 pin mini XLR (M)

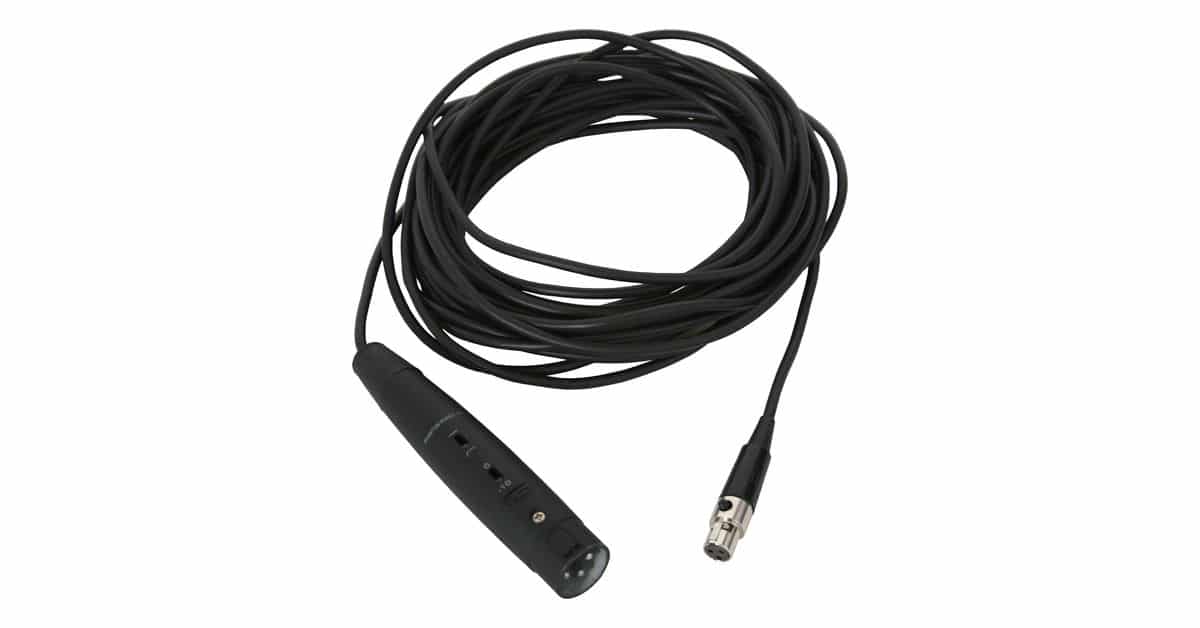

Cable Length 26.25' (8m)
Cable Connector Input: 3 pin mini-XLR (F)
Output: 3 Pin XLR (Power Module)
Power Supply 9-48 VDC phantom power
Mic Stand Either 24" (14.5 to 24" adjustable) or the 62" (35" to 62" adjustable)
Manual ( PDF - 5.57 MB )
Cut Sheet ( PDF - 0.37 MB )
