ASD-700

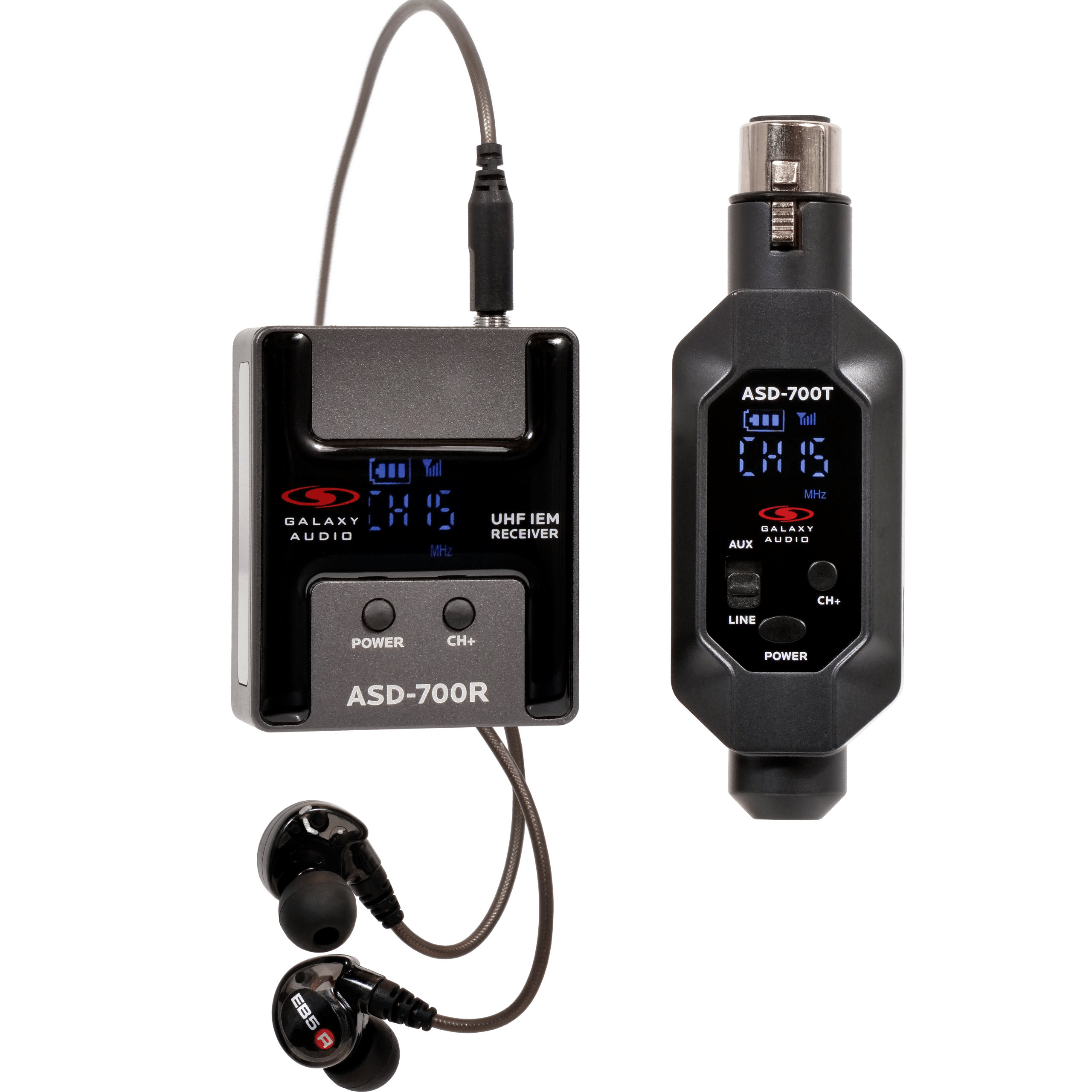

DIGITAL UHF Plug & Play Wireless In-Ear Monitor System

Description

Introducing the Galaxy Audio ASD-700 Plug and Play Digital UHF Wireless In-Ear Monitor System—your ideal solution for a reliable, ultra-compact wireless IEM system designed to meet the needs of performers on the move. With 15 UHF channels, this affordable in-ear monitor system is small enough to fit in your pocket yet powerful enough to deliver a pristine personal mix that is easy for a band on the move to set up and perform at their best.

Because, as a musician, protecting your hearing from loud stage volumes is essential to your musical future and life in general. The Galaxy Audio ASD-700 helps you reduce stage volume, protect your hearing, and hear your music more clearly, reducing vocal fatigue and ensuring a cleaner, more accurate mix. Made for any stage performer, whether you’re a singer, vocalist, guitarist, or drummer, this system is tailored to help you easily hear your own personal mix on stage.

The ASD-700 wireless in-ear monitor system is designed for live sound gigs, allowing you to freely move around the stage without the hassle of wires or the bulkiness of heavy monitors. Space matters, and the ASD-700 gives you more of it by reducing the equipment you need to set up at each gig. Plus, it’s easy to use, making it an excellent choice for both seasoned professionals and beginners alike.

The Galaxy Audio ASD-700 is more than just a compact digital UHF wireless in-ear monitor system—it’s an investment in your musical success going forward and backed by a Galaxy Audio 3-Year Warranty for added peace of mind.

ASD-700 Wireless In-ear Monitoring System Features:

  • Easy Plug & Play Ultra Compact IEM System
  • Over 150 feet of operating range
  • 15 Channel UHF Wireless
  • Crystal-clear audio with 24-bit/48kHz resolution for professional sound quality
  • Works with Ear Buds or Headphones. High-Definition Ear Buds Included.
  • Up to 8-Hour Battery Life
  • Affordable and Durable

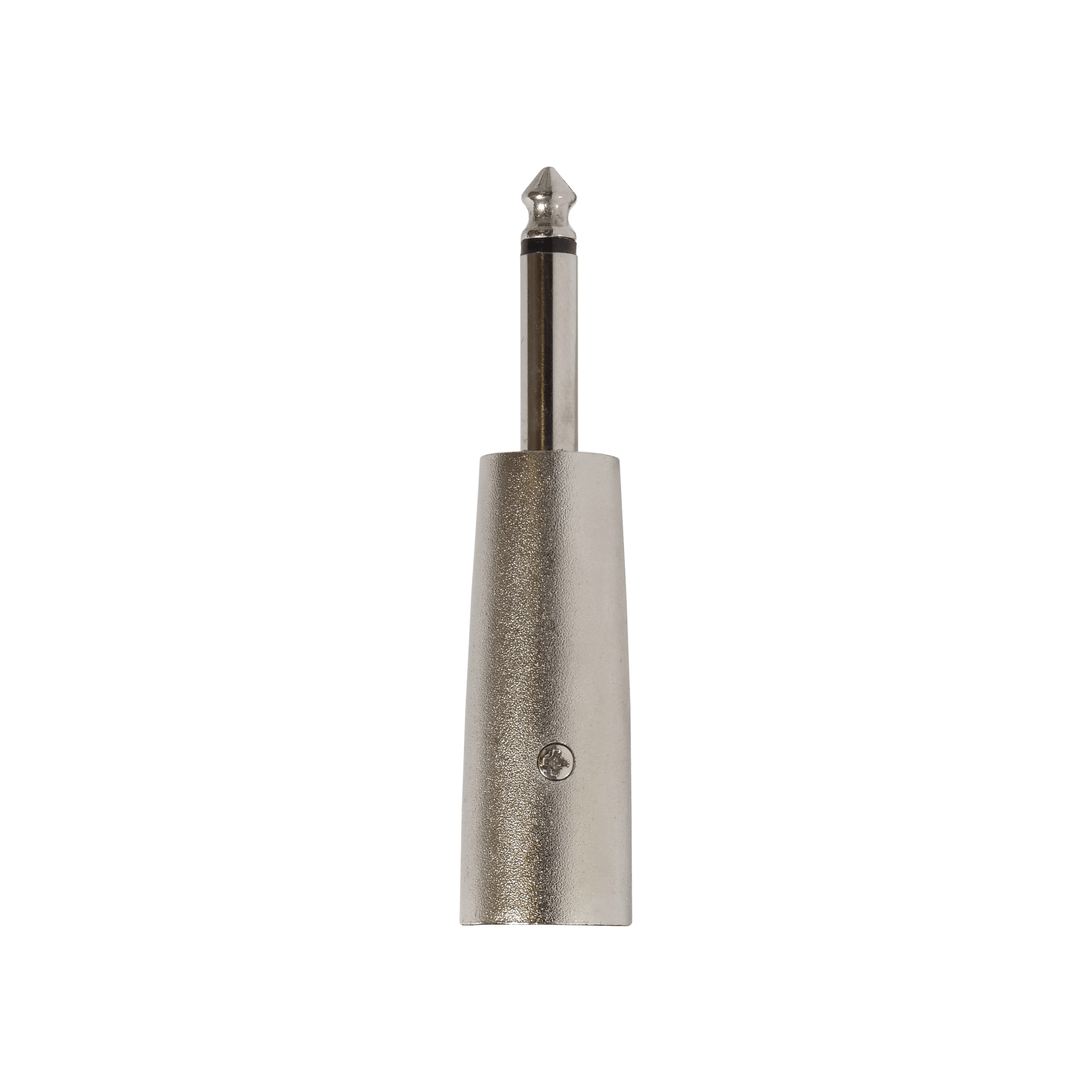

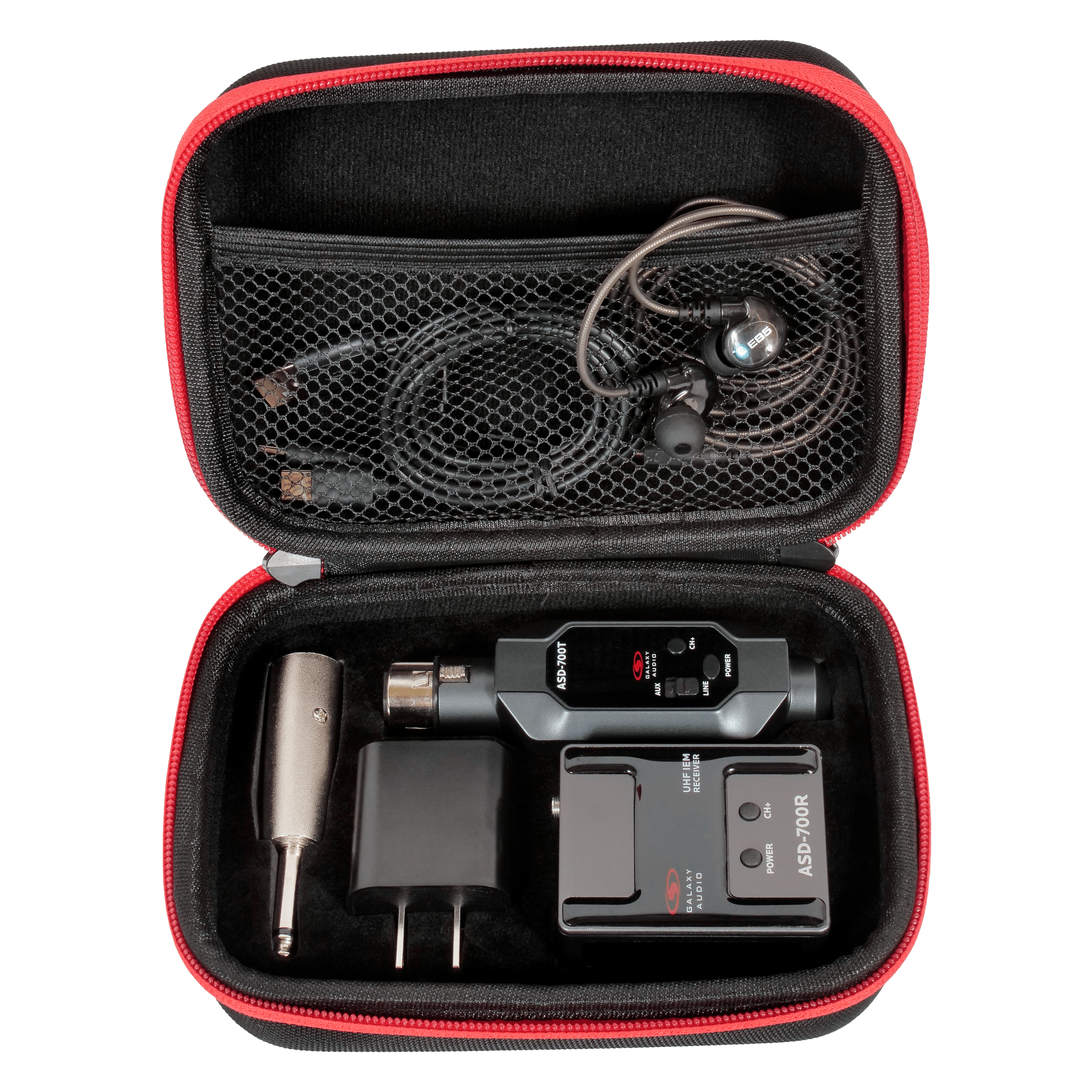

  • Includes Ear Buds, Earbud Pouch, XLRM to 1/4″ Adapter, Dual USB-C Charging, & Soft Shell Hard Case.
  • 3-Year Warranty
Accessories

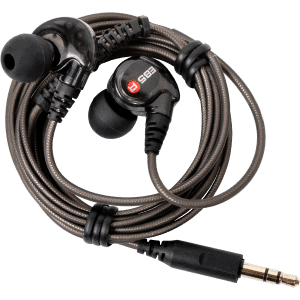

EB5 Stereo Personal Monitoring Earbuds / Earphones Coiled Image

EB5

The EB5 Earphones/Earbuds for the Galaxy Audio Wireless Personal Monitors. The EB5 includes three pairs of Silicon sleeves (small, medium, and large) for fit and comfortable use. The EB5 Earbuds have a standard 3.5mm stereo jack, allowing them to be used with any Wireless Personal Monitor or MP3 Player brand.

  • Stereo Personal Monitoring Earphones/Earbuds
  • Full Range Single Drivers
  • High Fidelity with Extended Bass
  • Light and Comfortable
  • Durable 47″ Cable

EB6

The EB6 features a single driver delivering full frequency performance. The Galaxy Audio EB6 has a cable over 4 feet long and the ear buds weigh 6g (less than 0.25 oz; excluding cable). The EB6 in-ear wired single driver earphones include a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).

  • Wideband Dyna Driver ear buds reproduce the full frequency range with natural mids, full highs, and rich bass.
  • They allow musicians to monitor their mix with full detail.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Ergonomic mechanical structure ensures long time, low fatigue use.

EB10

GALAXY AUDIO EB10 PROFESSIONAL DUAL DRIVER EARBUDS: Upgrading your earbuds can be a great improvement to your wireless monitor system or media player. The Galaxy Audio EB10 is a professional dual driver earbud system. It has two built-in transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise to yield accurate audio reproduction. The EB10 has a standard 3.5mm stereo jack, allowing it to be used with any brand of Wireless Personal Monitor or Digital Media Player.

The Galaxy Audio EB10 incorporates dual performance drivers and built-in crossover. The EB10's lightweight ergonomic design assures excellent sound isolation and maximum comfort during periods of extended wear. The EB10 comes with a Silver Plated cable with a Gold Plated connector.  The EB10 has a MAX Power Input of 150mW and a Sensitivity of 120 dB/mW. The EB10 has a cable over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable). The EB10 includes zippered carrying case with a cleaning rod and three pairs of Silicon Sleeves (small, medium and large).

  • Professional Dual Driver Earbuds
  • Allows musicians to monitor their mix with full detail.
  • Design assures excellent sound isolation and maximum comfort during periods of extended wear.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Nylon Soft Case Included









Specifications

ASD-700 System

Band: UHF

15 Channels.

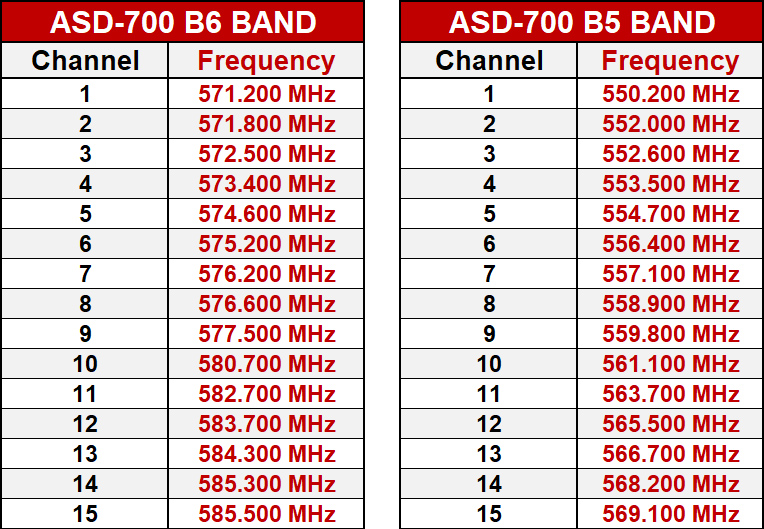

Frequency Range: CODE B5 550-569MHz, Frequency CODE B6 571-585MHz

Sample Rate: 24bit/48kHz

Operating Range: Under Typical Conditions 150' (45m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics

Audio Frequency Response: +/-3dB 20Hz~20kHz

Dynamic range: 101dB

S/N: 98.d dB

Operating Temperature Range: 14ºF to 122ºF (-10º C to +50º C) Note: battery characteristics may limit this range

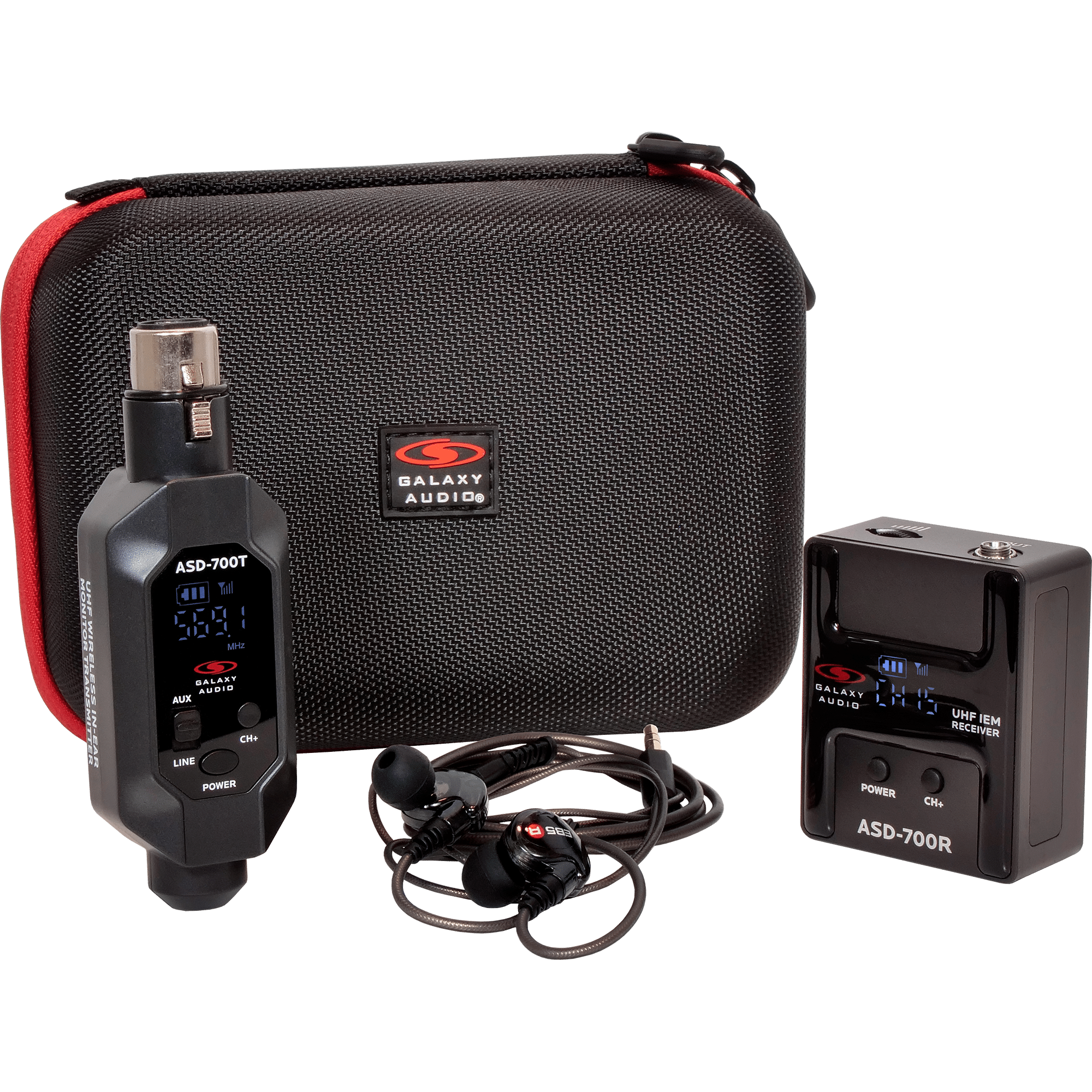

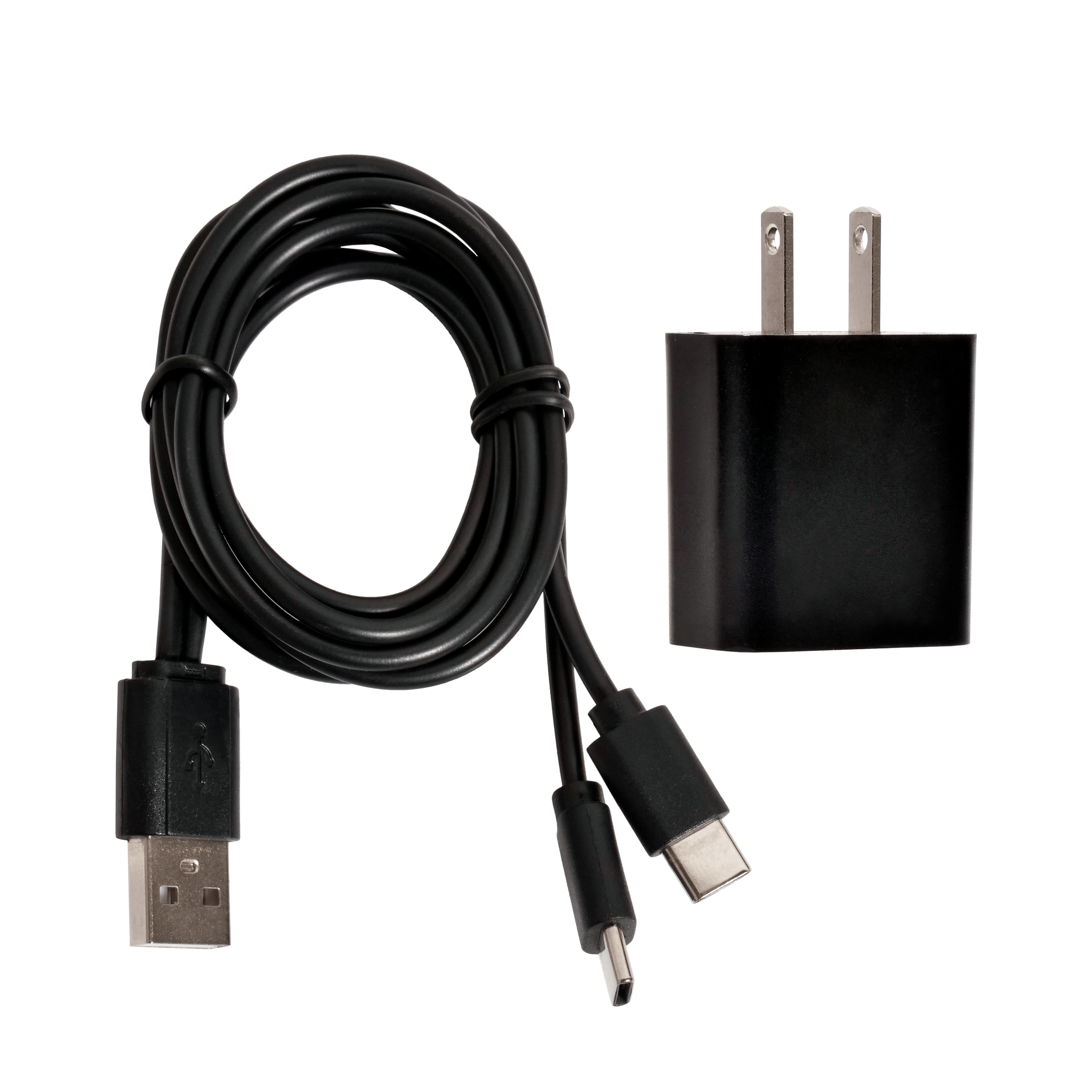

Included Accessories: EB5 Earbuds, XLRM to 1/4" Adapter, Dual USBC Charge Cable, Power Block, Soft Shell Hard Case, Quick Start Guide



ASD-700T Transmitter

Transmitter Output Level: 10 mW

Max Audio Input Level: Aux +10dBu, Line +19dBu

Controls: Power, channel select, input sensitivity

Display: Channel, frequency, battery level

XLR Input: Impedance balanced

Pin: 1 Ground (cable shield)

Pin: 2 Audio +

Pin: 3 No Audio -

Dimensions: 4.18" x 1.4" x 1" (106 x 35 x 25 mm)(HxWxD)

Weight: 2 oz (55 g)

Power Supplied By: 3.7V 800mA Lith-Ion internal battery

Battery Life: Up to 8 hours

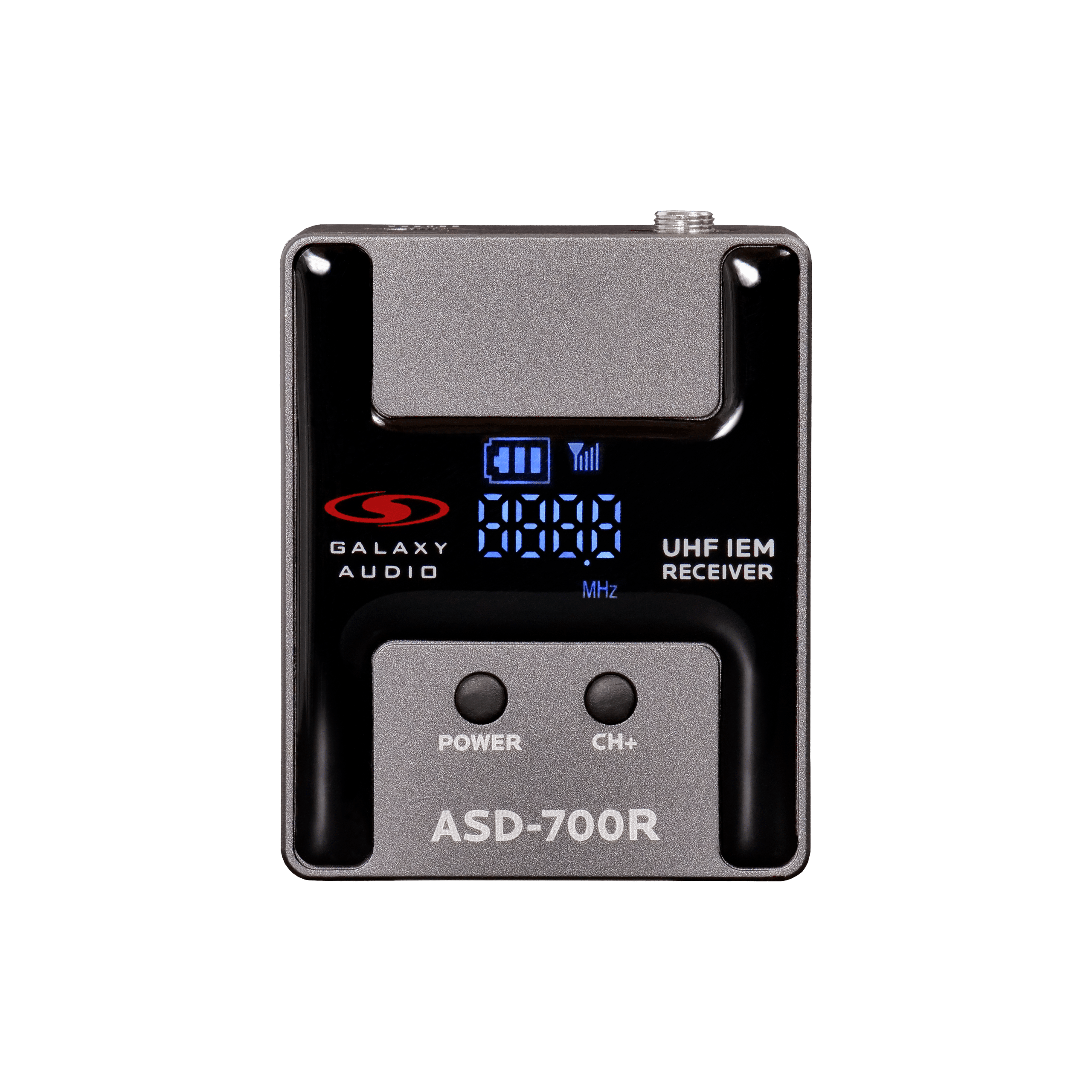

ASD-700R Body Pack Receiver

Audio Output Level: 50mW x 2
Output Connector: 1/8" (3.5mm) Stereo Earphone Connector

Controls: Power, Volume, Channel Up/Down

Display: Channel, frequency, RF level, battery level

Dimensions: 2.36" x 1.93" x 1.47" (60 x 49 x 37.33 mm)(HxWxD)

Weight: 3.6 oz (105 g)

Power Supplied By: 3.7V 1000mA Lith-Ion internal battery

Battery Life: Up to 8 hours



Downloads

Quick Start Guide
Manual
Cutsheet
Frequency Codes
