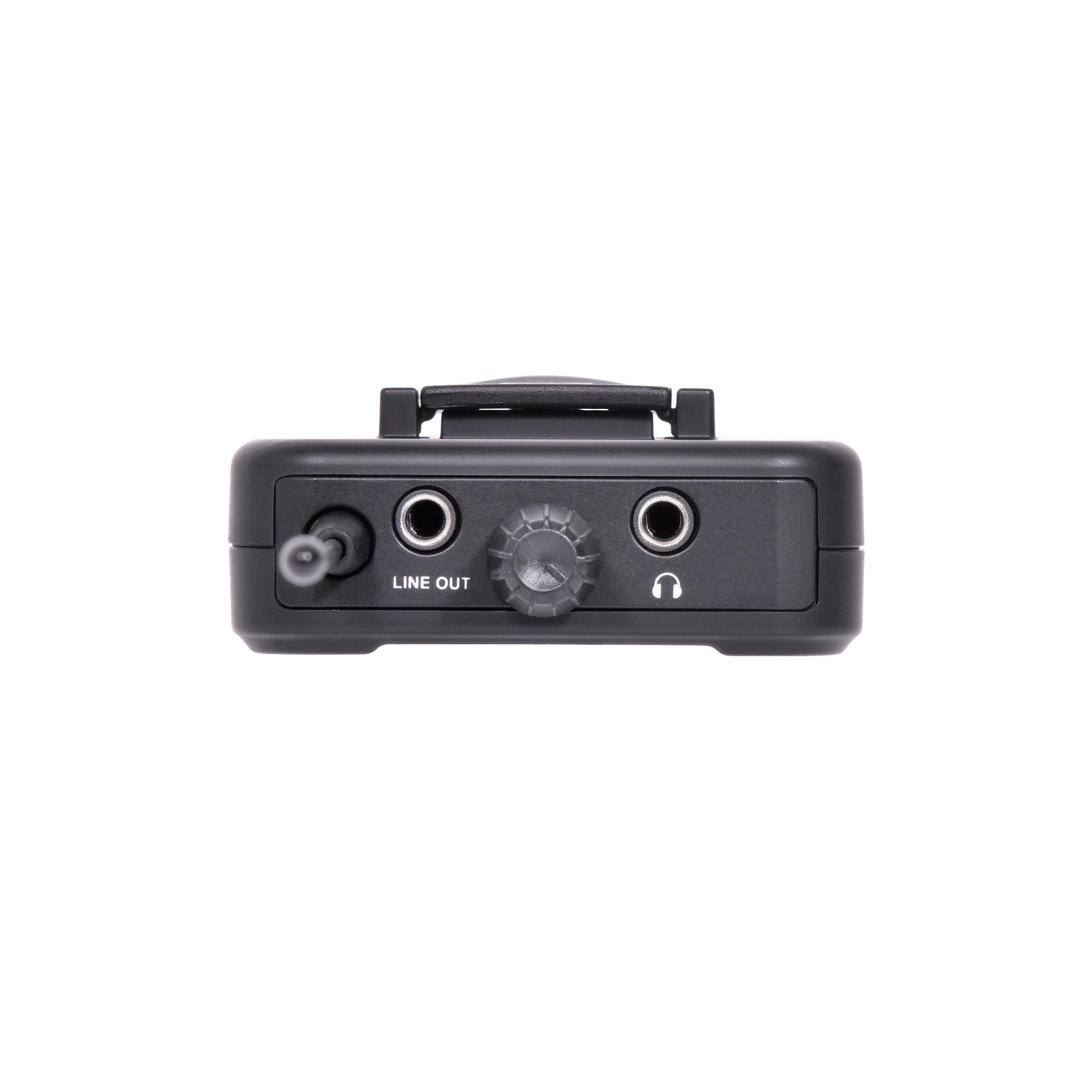

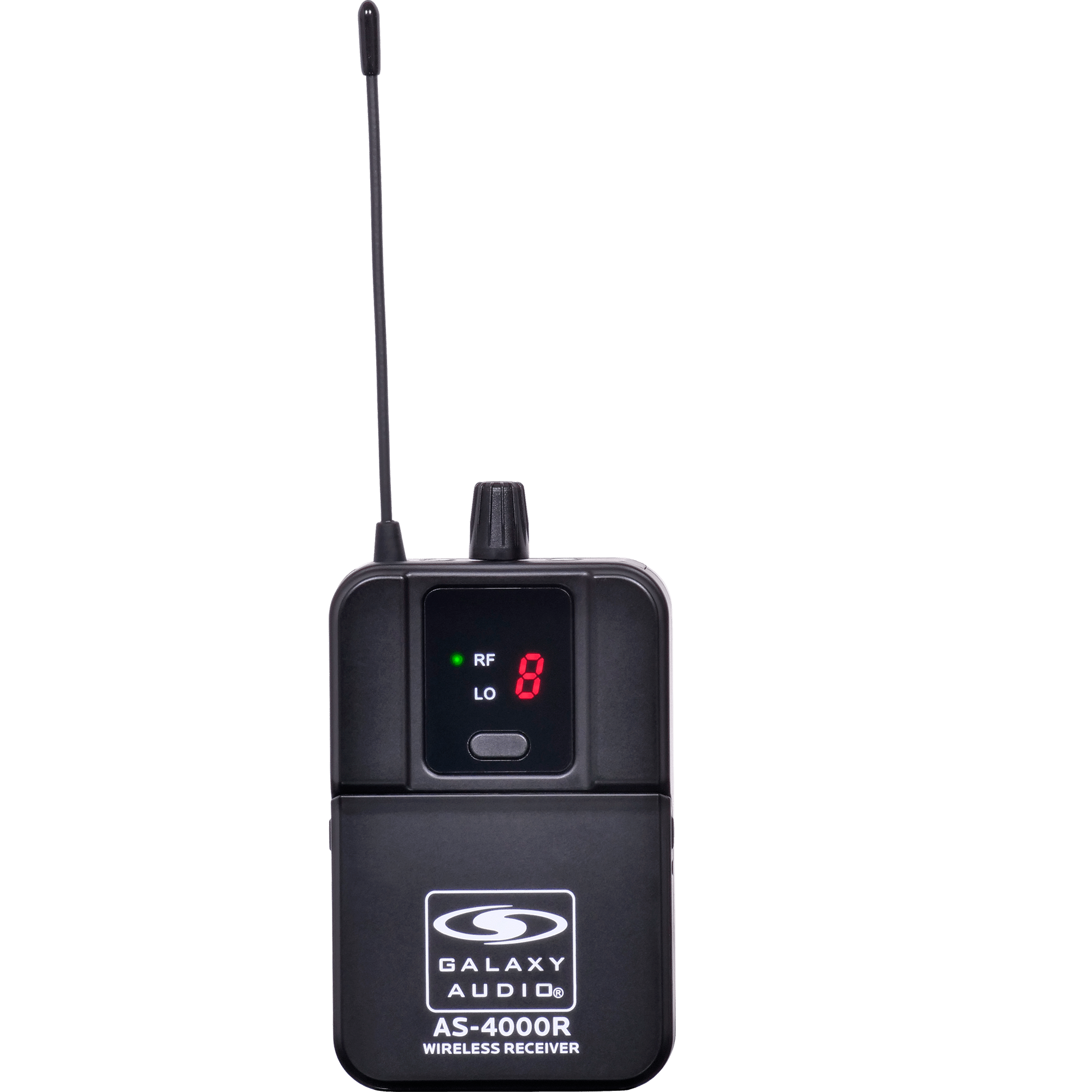

AS-4000R Wireless Personal In-Ear Monitor Receiver Top

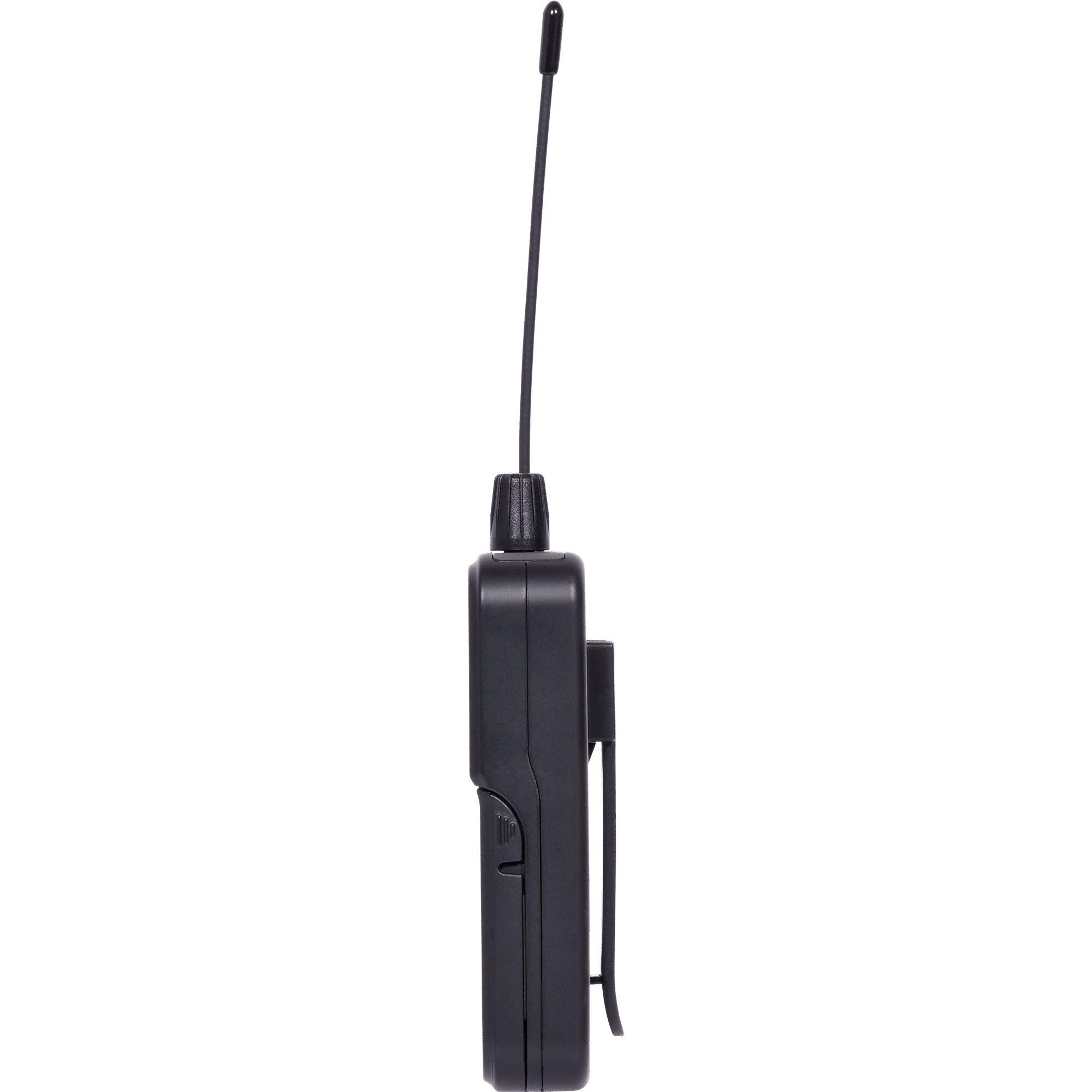

AS-4000R Wireless Personal In-Ear Monitor Receiver Profile

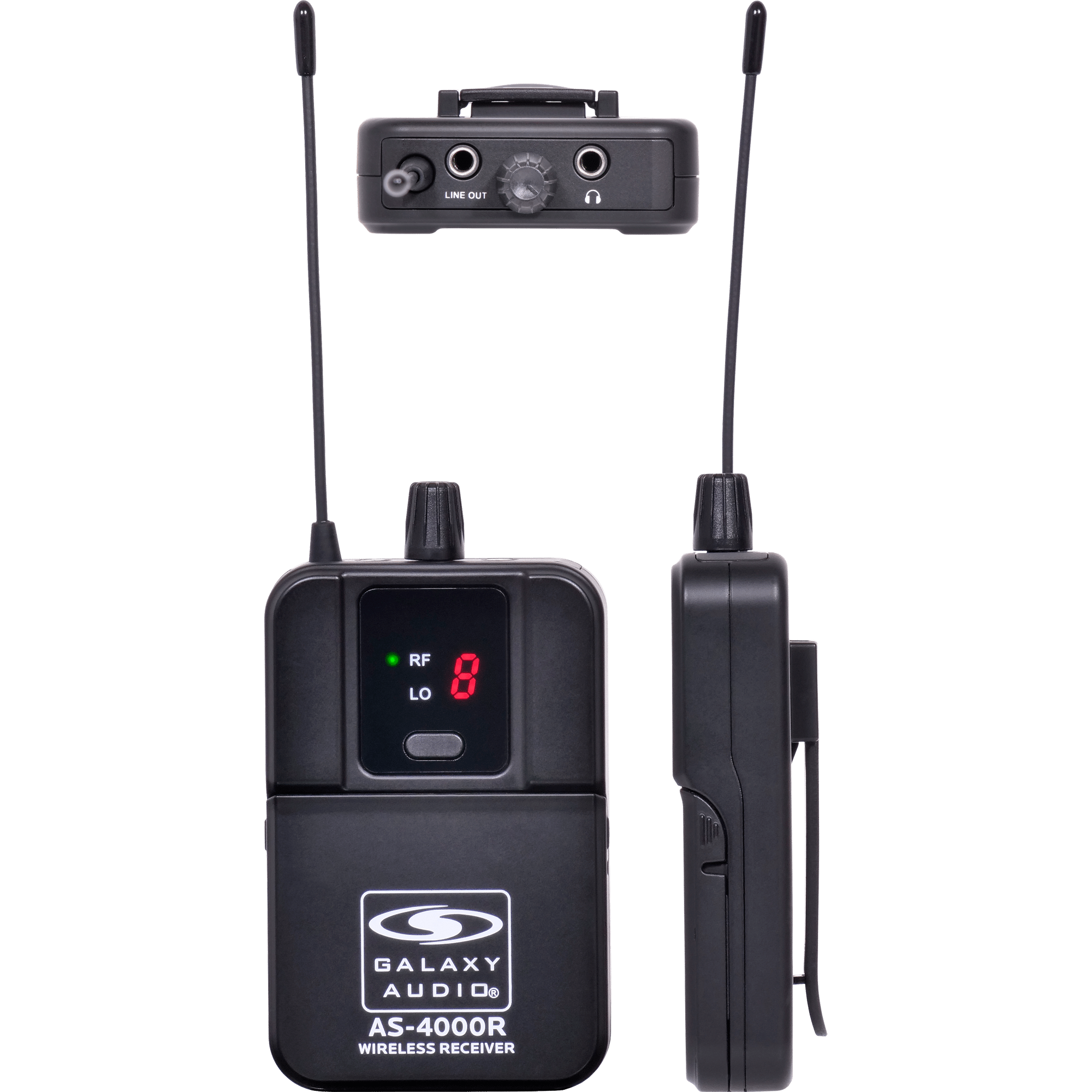

AS-4000R Wireless Personal In-Ear Monitor Receiver Front – Profile - Top

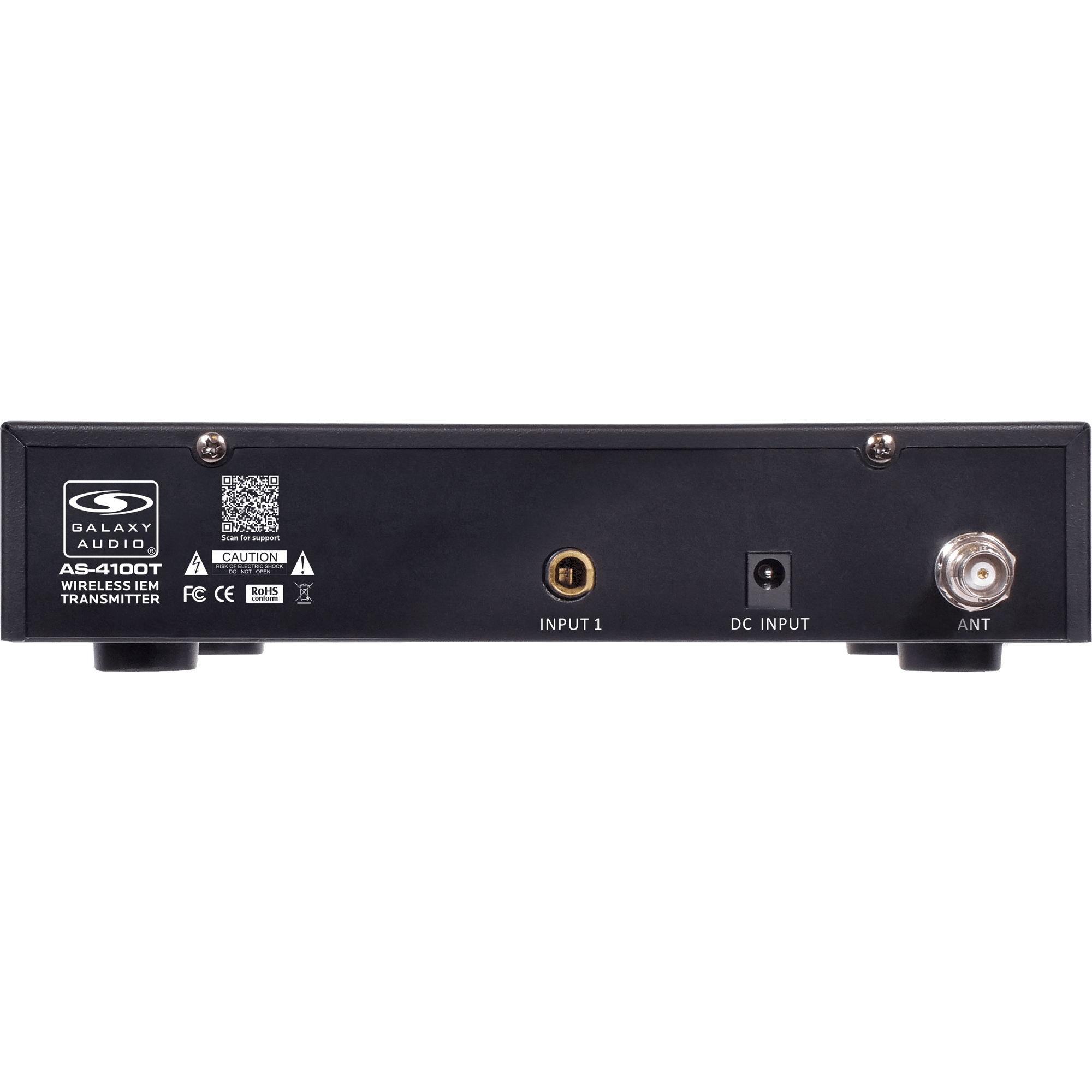

AS-4100T Wireless Personal In-Ear Monitor Transmitter Back
AS-4000R Wireless Personal In-Ear Monitor Receiver

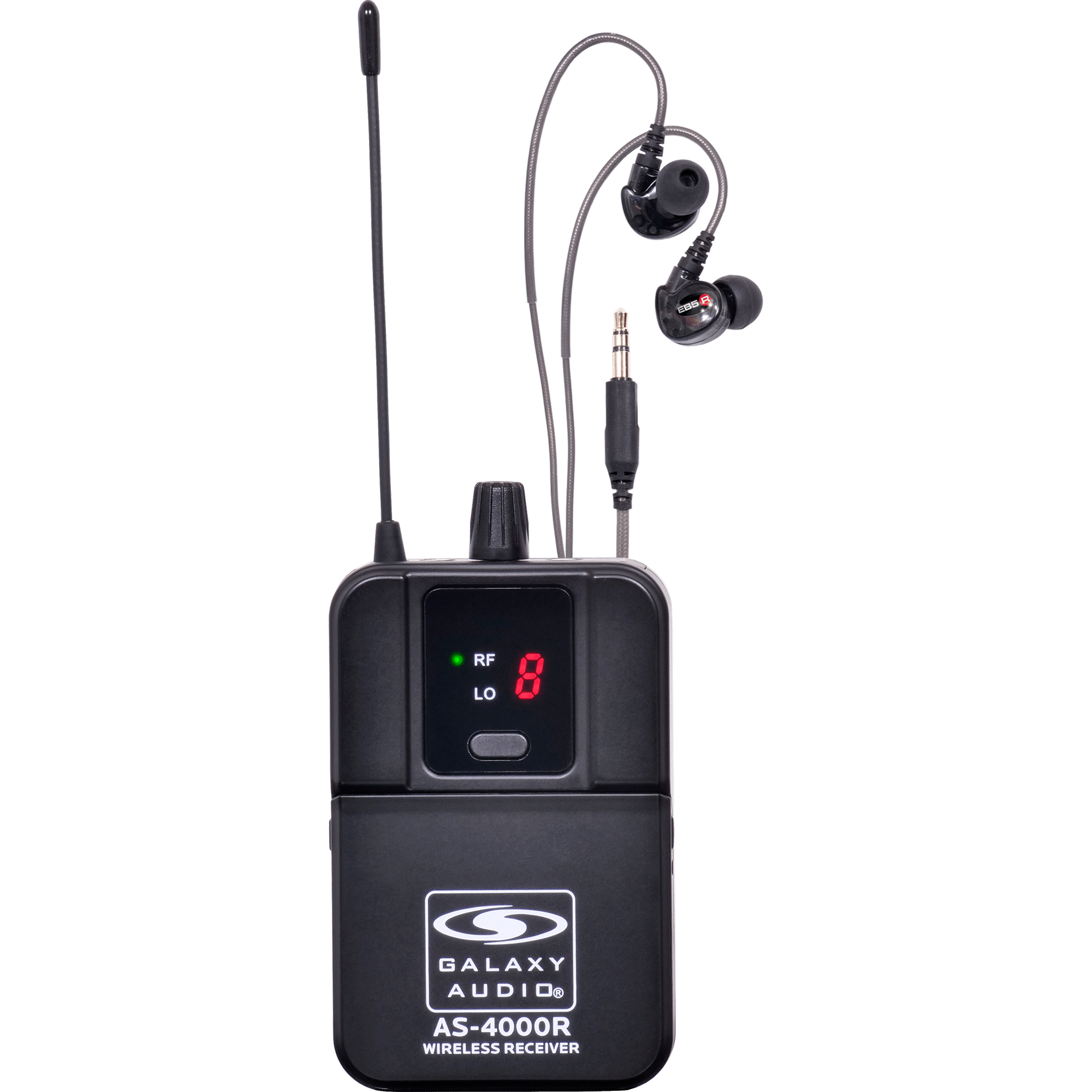

AS-4000R Wireless Personal In-Ear Monitor Receiver with EB5 Ear Buds

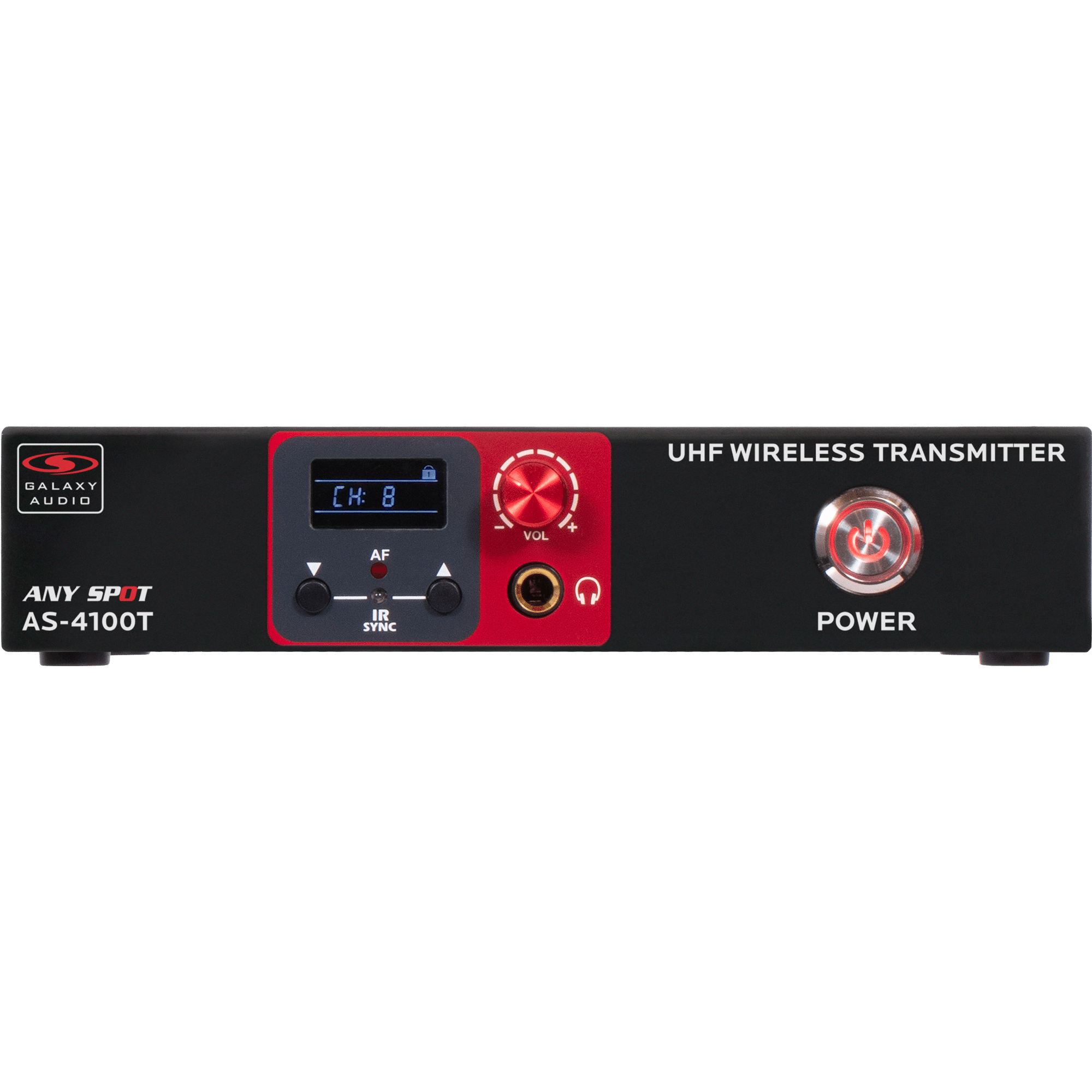

AS-4100T Wireless Personal In-Ear Monitor Transmitter Front

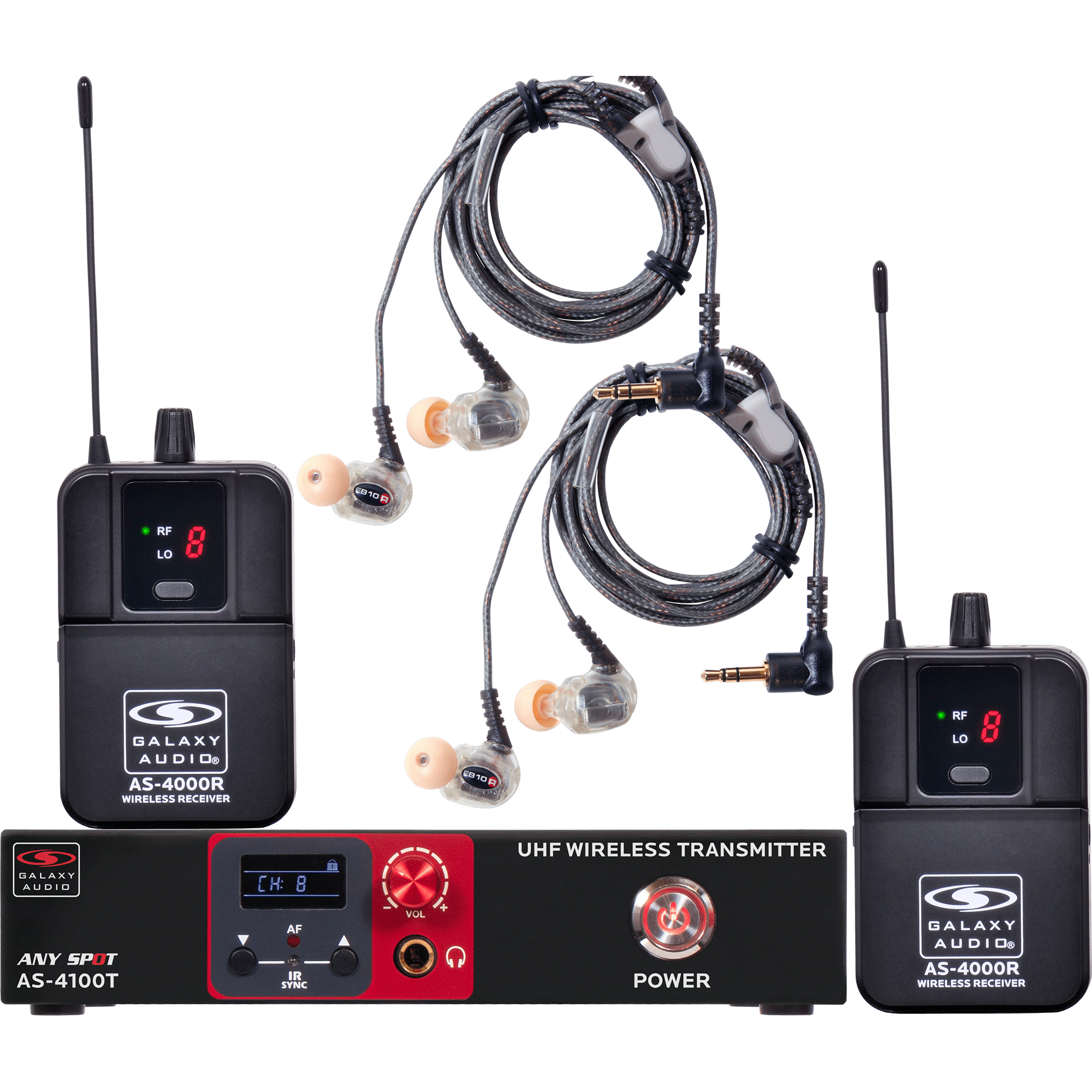

AS-4110-2 Twin-Pack Wireless Personal In-Ear Monitor EB10 Ear Bud Upgrade System

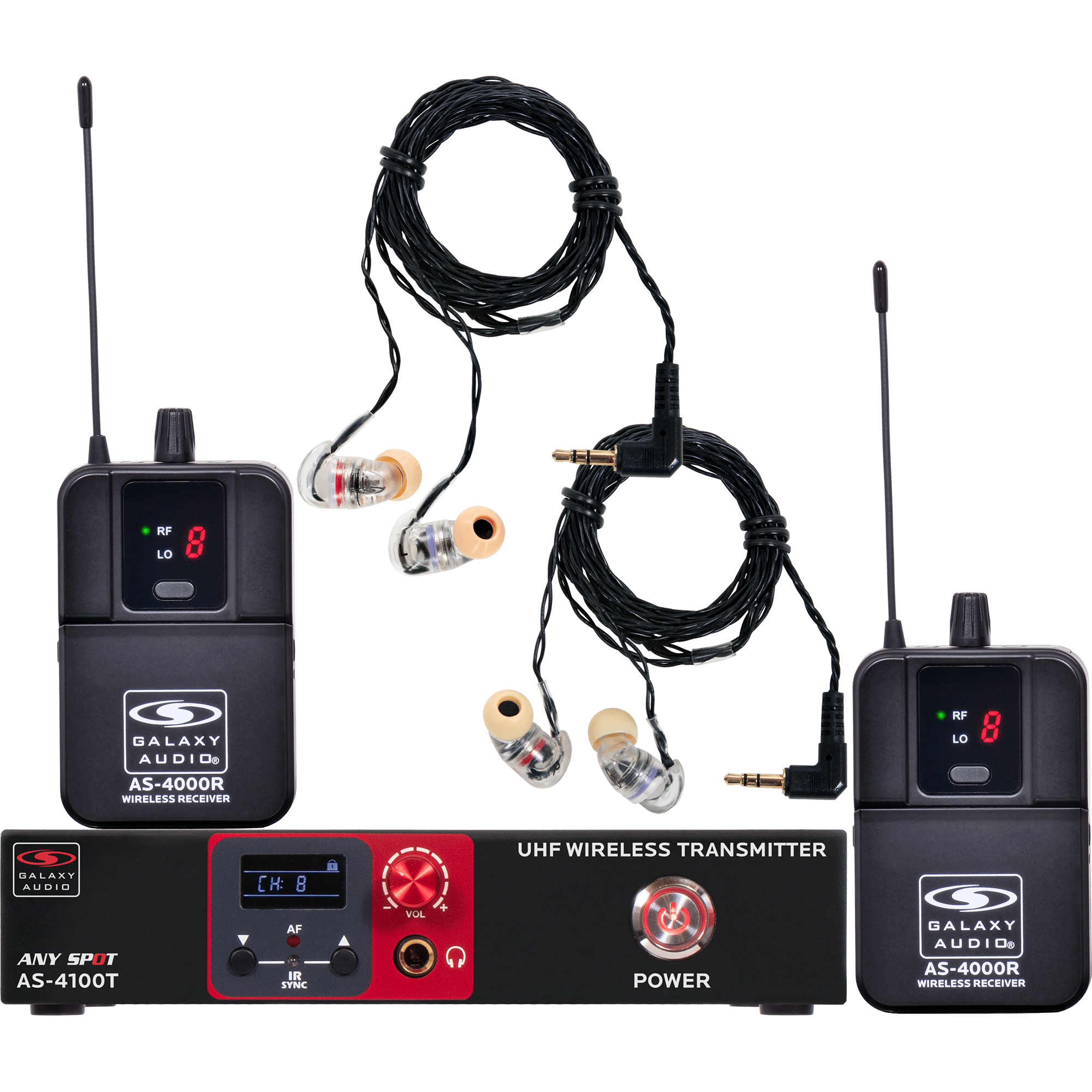

AS-4106-2 Twin- Pack Wireless Personal In-Ear Monitor EB6 Ear Bud Upgrade System

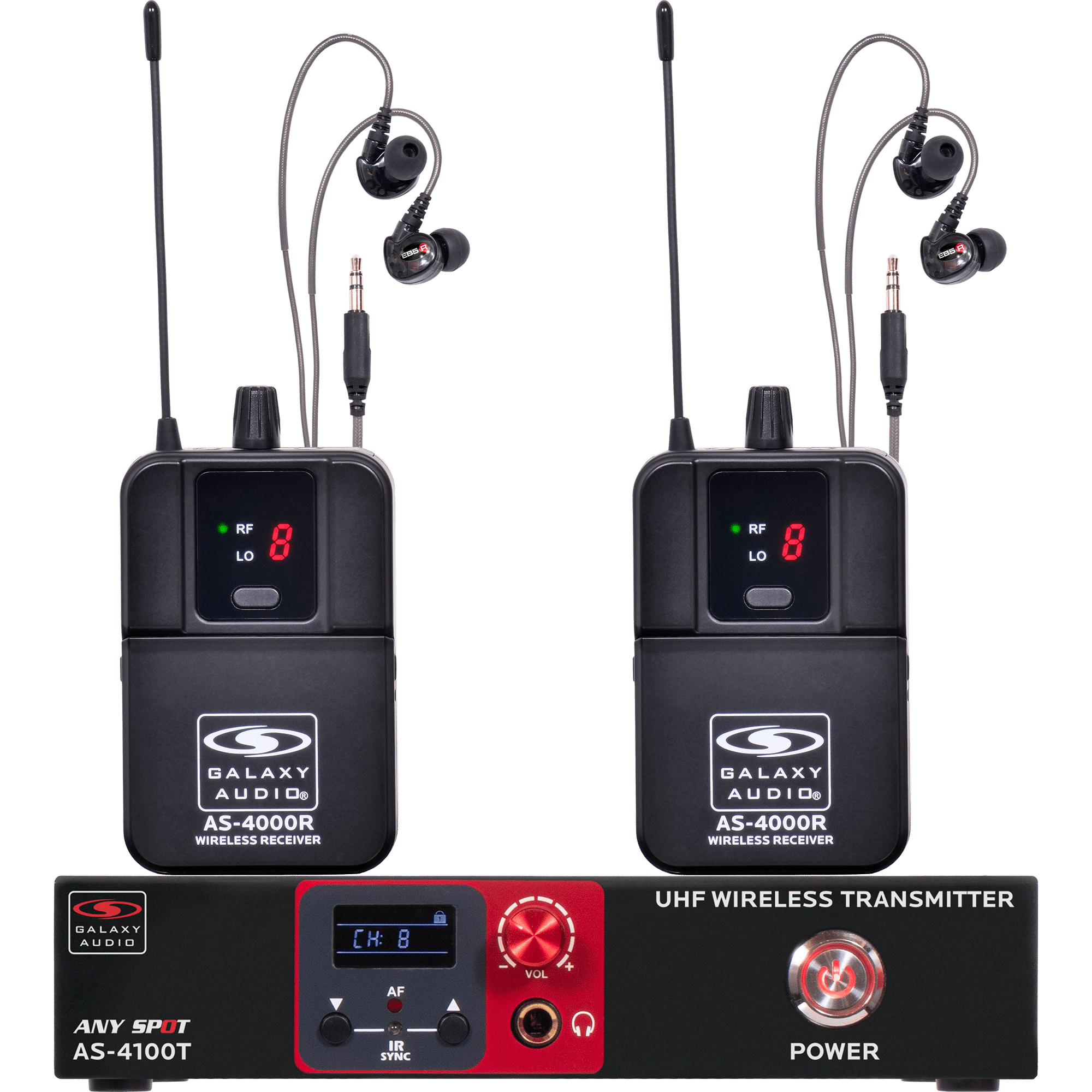

AS-4100-2 Twin-Pack Wireless Personal In-Ear Monitor System

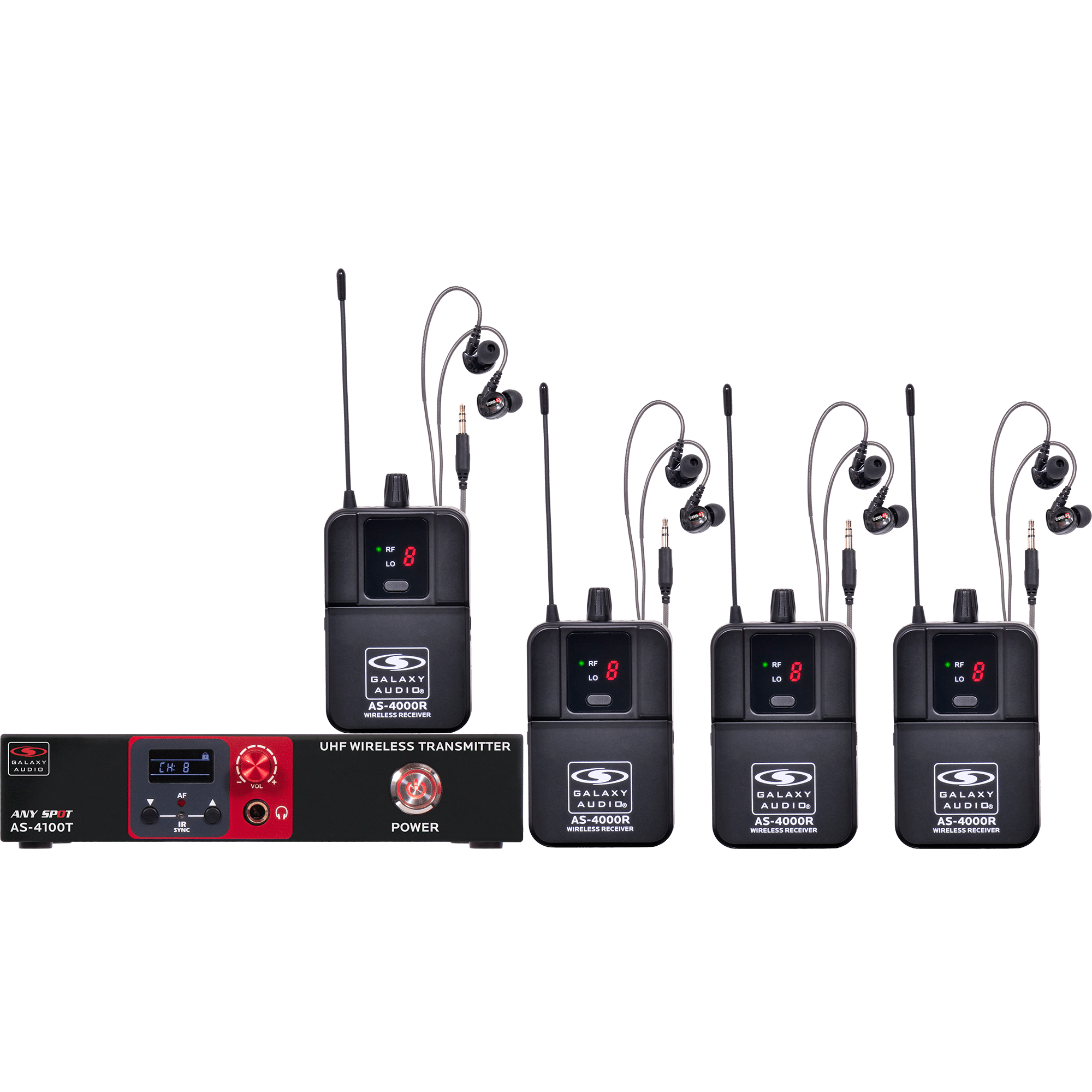

AS-4100-4 Band-Pack Wireless Personal In-Ear Monitor System

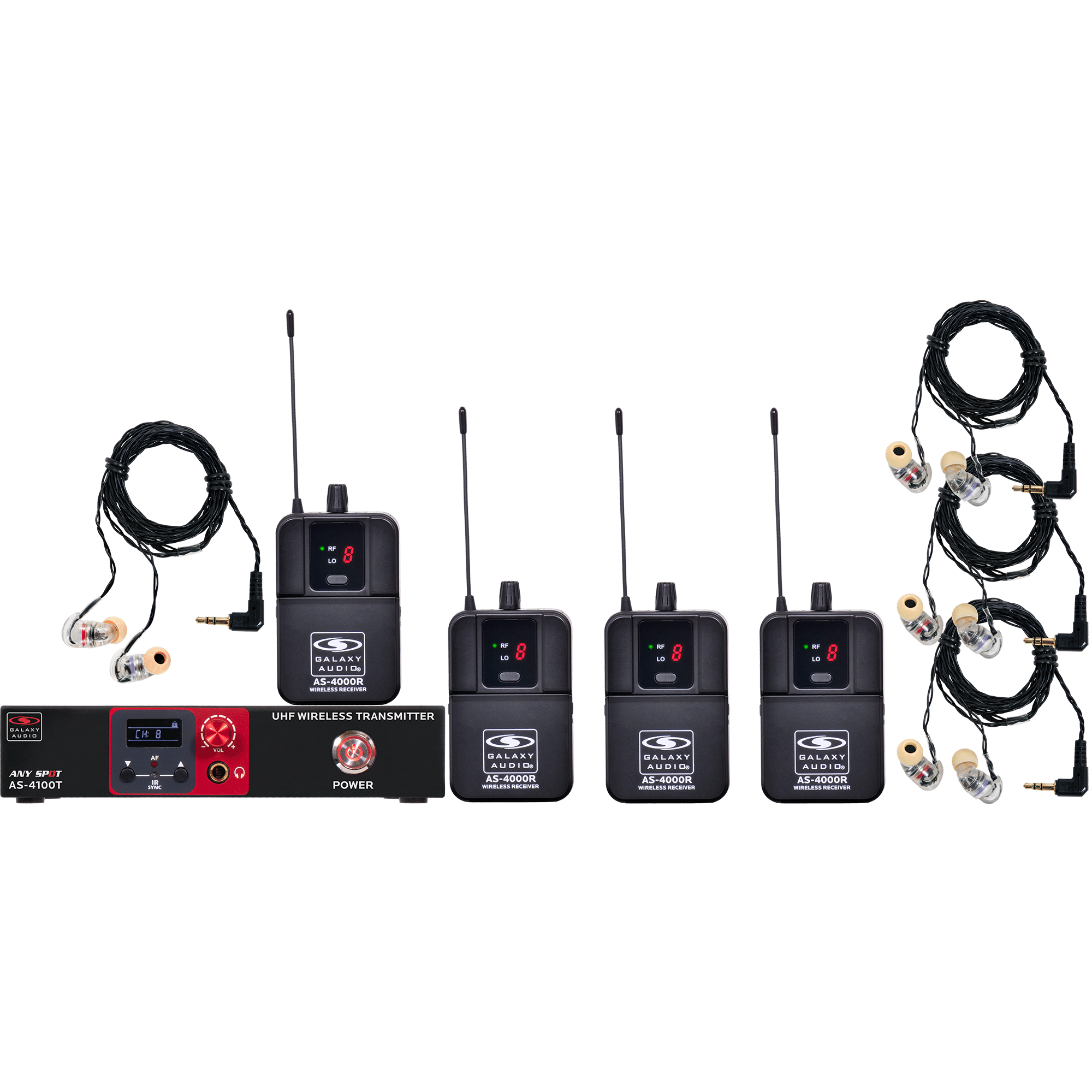

AS-4106-4 Band-Pack Wireless Personal In-Ear Monitor EB6 Ear Bud Upgrade System

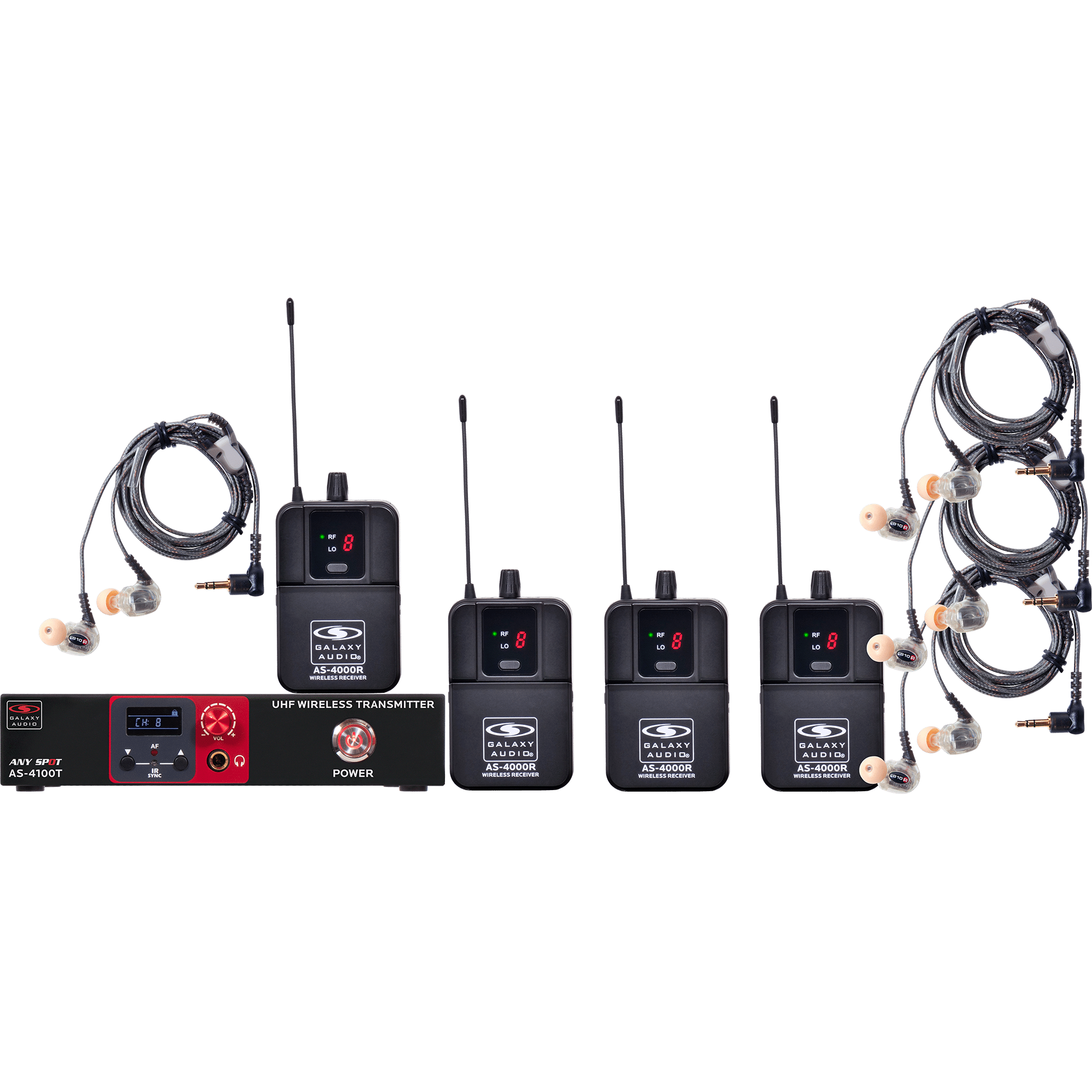

AS-4110-4 Band-Pack Wireless Personal In-Ear Monitor EB10 Ear Bud Upgrade System

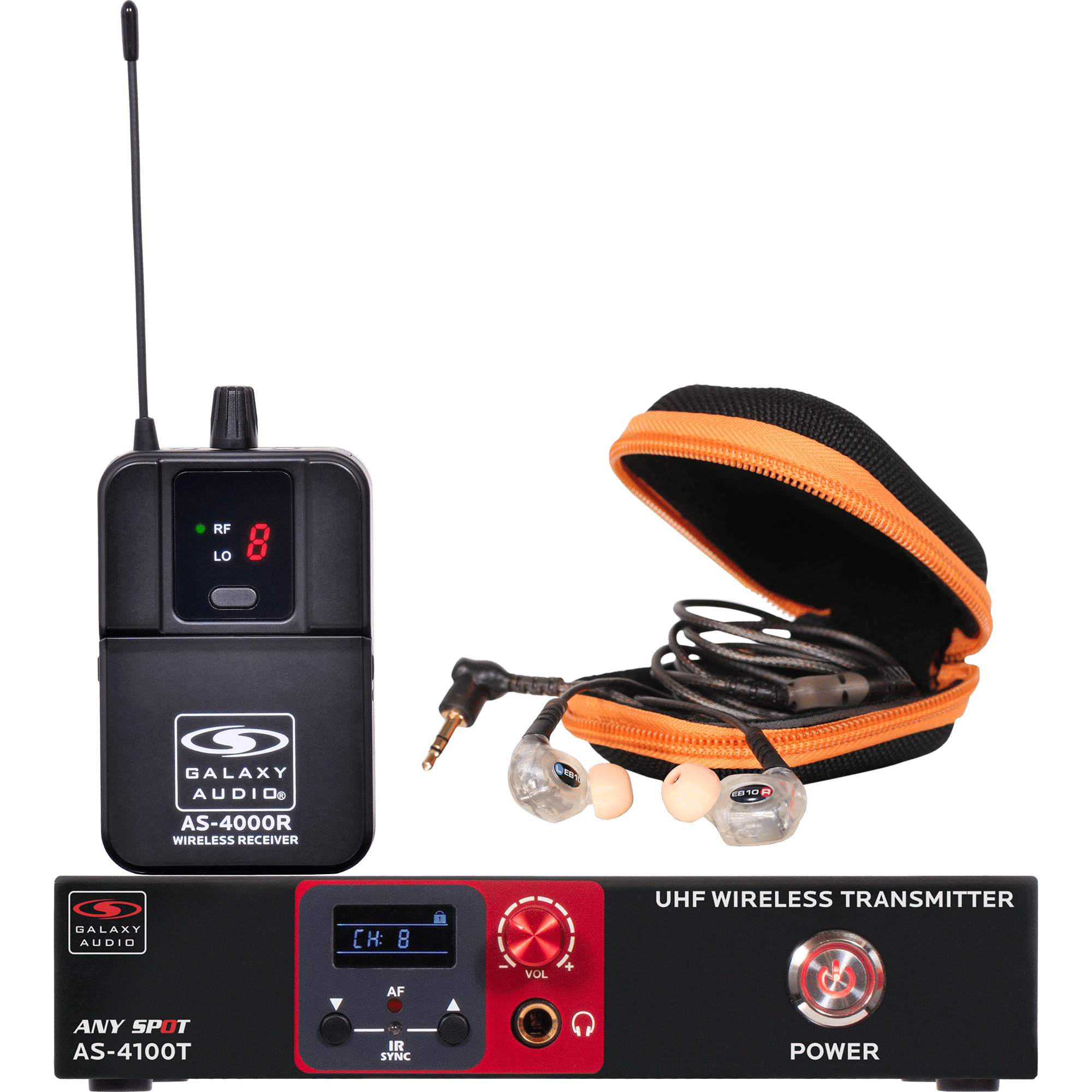

AS-4110 Wireless Personal In-Ear Monitor System with EB10 Ear Bud Upgrade

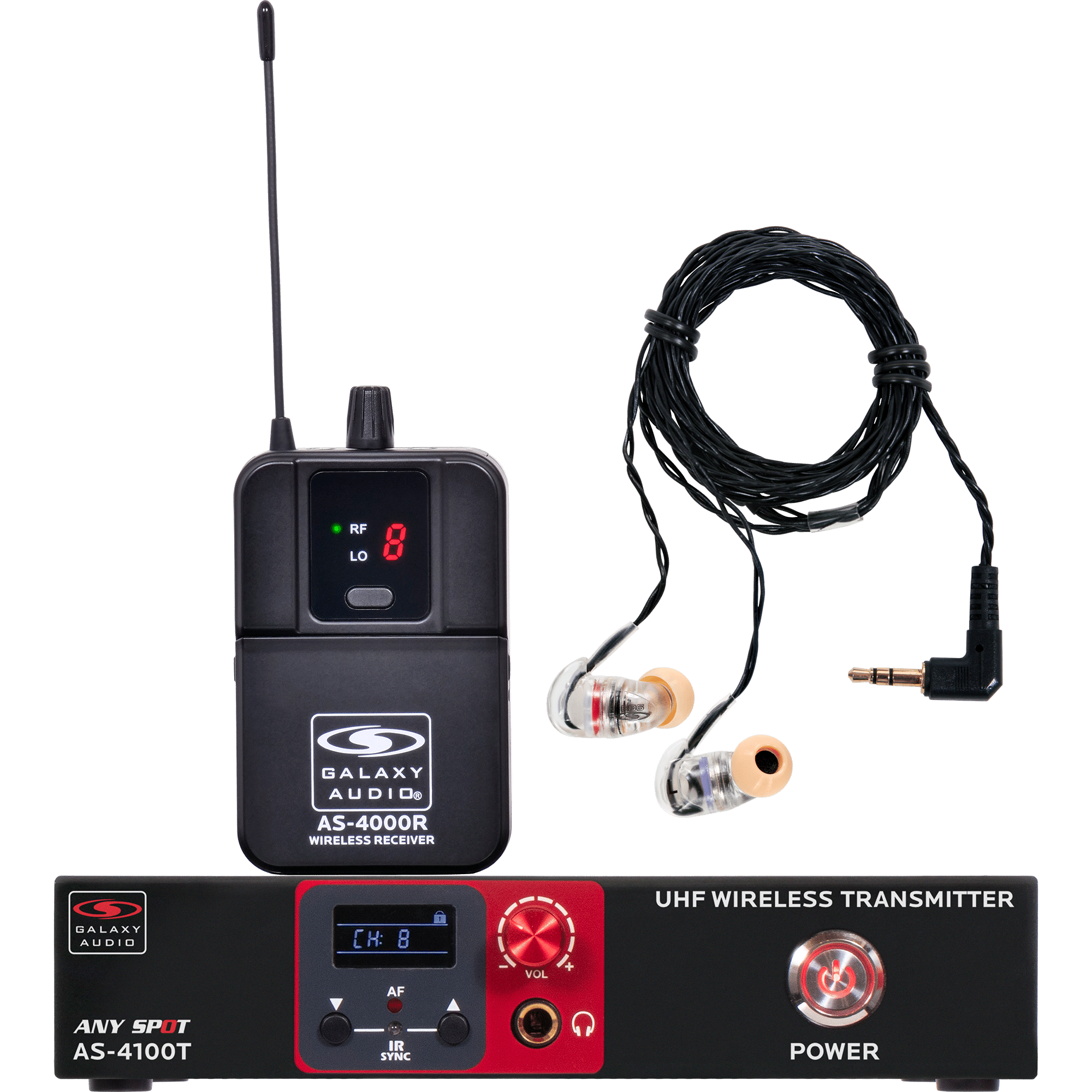

AS-4106 Wireless Personal In-Ear Monitor System with EB6 Ear Bud Upgrade
AS-4100 Wireless Personal In-Ear Monitor System
AS-4000R Wireless Personal In-Ear Monitor Receiver Top
AS-4000R Wireless Personal In-Ear Monitor Receiver Profile
AS-4000R Wireless Personal In-Ear Monitor Receiver Front – Profile - Top
AS-4100T Wireless Personal In-Ear Monitor Transmitter Back
AS-4000R Wireless Personal In-Ear Monitor Receiver
AS-4000R Wireless Personal In-Ear Monitor Receiver with EB5 Ear Buds
AS-4100T Wireless Personal In-Ear Monitor Transmitter Front
AS-4110-2 Twin-Pack Wireless Personal In-Ear Monitor EB10 Ear Bud Upgrade System
AS-4106-2 Twin- Pack Wireless Personal In-Ear Monitor EB6 Ear Bud Upgrade System
AS-4100-2 Twin-Pack Wireless Personal In-Ear Monitor System
AS-4100-4 Band-Pack Wireless Personal In-Ear Monitor System
AS-4106-4 Band-Pack Wireless Personal In-Ear Monitor EB6 Ear Bud Upgrade System
AS-4110-4 Band-Pack Wireless Personal In-Ear Monitor EB10 Ear Bud Upgrade System
AS-4110 Wireless Personal In-Ear Monitor System with EB10 Ear Bud Upgrade
AS-4106 Wireless Personal In-Ear Monitor System with EB6 Ear Bud Upgrade

AS-4100 Wireless In-Ear Personal Monitor System

This product is currently out of stock and unavailable.

Or

Description

COMING SOON

Galaxy Audio AS-4100 Wireless Personal In-Ear Monitor System
Professional Monitoring. Simplified.
The AS-4100 offers the same exceptional clarity and reliability as the AS-4400 Quad in a single-transmitter format. With 16 selectable UHF channels, easy IR sync, and up to 160 feet range, it’s the perfect solution for performers, educators, and AV professionals who need dependable wireless monitoring without complexity.

The AS-4100T Transmitter features a backlit LCD display, mono modulation, and 30mW RF output for solid signal strength. The AS-4100R Receiver delivers about 8 hours of use on standard AA Alkaline batteries, with a lightweight, comfortable design and clear LED indicators.

  • 160 Foot Range
  • 16 Selectable UHF Frequencies
  • Mono Transmission
  • Multiple Receivers can be used with each Transmitter.
  • EB5 Ear Buds Included

AS-4400T Transmitter

  • AF Indicator
  • LCD Display
  • Headphone Volume, Up/Down, and Power Button
  • Line Level 1/4″ Input
  • RF Output 30mW
  • 1/4″ Headphone Output Jack with Volume Control
  • Detachable BNC Antenna Included

 AS-4400R Receiver

  • 1/8″ Ear Bud Output
  • 1/8″ Line Output
  • Volume Control
  • LED Channel Display
  • IR Sync Receiver, Inside Battery Door
  • Operates on 2 AA Batteries (Alkaline or Rechargeable), About 8 Hours

What’s Included:

  • AS-4100T Transmitter
  • AS-4100R Receiver
  • EB5 Earbuds
  • 1/4″ Audio Cable
  • Antenna
  • Power Supply
  • Single/Dual Rack Mount Kit
  • Quick Start Guide

Configurations: Single, AS-4100-2 Twin, and AS-4100-4 Band Pack configurations

Accessories

EB10

GALAXY AUDIO EB10 PROFESSIONAL DUAL DRIVER EARBUDS: Upgrading your earbuds can be a great improvement to your wireless monitor system or media player. The Galaxy Audio EB10 is a professional dual driver earbud system. It has two built-in transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise to yield accurate audio reproduction. The EB10 has a standard 3.5mm stereo jack, allowing it to be used with any brand of Wireless Personal Monitor or Digital Media Player.

The Galaxy Audio EB10 incorporates dual performance drivers and built-in crossover. The EB10's lightweight ergonomic design assures excellent sound isolation and maximum comfort during periods of extended wear. The EB10 comes with a Silver Plated cable with a Gold Plated connector.  The EB10 has a MAX Power Input of 150mW and a Sensitivity of 120 dB/mW. The EB10 has a cable over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable). The EB10 includes zippered carrying case with a cleaning rod and three pairs of Silicon Sleeves (small, medium and large).

  • Professional Dual Driver Earbuds
  • Allows musicians to monitor their mix with full detail.
  • Design assures excellent sound isolation and maximum comfort during periods of extended wear.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Nylon Soft Case Included

EB6

The EB6 features a single driver delivering full frequency performance. The Galaxy Audio EB6 has a cable over 4 feet long and the ear buds weigh 6g (less than 0.25 oz; excluding cable). The EB6 in-ear wired single driver earphones include a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).

  • Wideband Dyna Driver ear buds reproduce the full frequency range with natural mids, full highs, and rich bass.
  • They allow musicians to monitor their mix with full detail.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Ergonomic mechanical structure ensures long time, low fatigue use.



19.69” BNC Cable & Connector Combo

This Includes:
One Wire BNC Connector Cable (Part# CN-BNCPM) and
One 19.69" (50 cm) RG58 Cable (Part# EXTBNC) for front mounting antenna.



Universal Power Adaptor AS-UA12-14.5

Universal Power Adaptor. The AS-UA12-14.5 supplies 12V DC at 1000mA to Our Wireless Microphone & Monitor systems such as the DHT, DHX, DHTRQUAD, DHXR4, PSE, ECM, ECD, EDX, AS-900, Galaxy Audio AS-1100 & AS-1800 using the common 5.5mm barrel plug with center positive. The universal AC power adaptor comes with 4 different AC plug adaptors, and will accept any input voltage from 100 to 240v AC, 50-60Hz, which means it will work in nearly every country on the planet.

  • 12V DC 1000mA
  • 5.5mm PLUG
  • Converts Systems To Accept 230 VAC.

Power Supply PS-13.5-.35.5

Microphone power supply for AS-900T, 950T, AS-1100T, AS-1200T AS-1400T, AS-4100T, VESR, VSCR, ECDR, EDXR, ECMR, PSER, DHTR, & DHXR.

  • 13.5 Volt 300 mA-
  • 5.5 mm PLUG
Specifications
AS-4100 SYSTEM
Band UHF
Frequencies Range CODE M3 508-535 MHz
CODE M4 534-551 MHz
Frequencies 16
RF Output power 30 mW
Operating Range Under Typical Conditions 160' (50m)
Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Audio Frequency Response 60Hz - 17kHz +/-3dB
Total Harmonic Distortion <0.5% @ 1kHz
Operating Temperature Range 14º F to 122º F (-10º C to 50º C)
Note: battery characteristics may limit this range

AS-4100T TRANSMITTER
Modulation Mode Mono
RF Output 30 mW
Max Audio Input Level +6dBV
Controls Headphone Volume, Channel Up/Down, and Power Button
Indicators LCD Display, Channel, Frequency Band, Frequency, Lock, & Mute
Audio Input Line Level, 1/4" (6.3mm) Jack
Transmitter Antenna Detachable 1/2 Wave BNC Antenna
Power Requirements 12-18 V DC at 500 mA, supplied by external power supply
Dimensions 1.73" x 8.34" x 3.77" (44 x 212 x 96 mm) (HxWxD)
Weight 19.75 oz (5604 g)

AS-4000R RECEIVER
Audio Output Level >65 mW
Output Connector 1/8" (3.5mm) Line Out & Earbud Connector
Controls Volume, Power Button
Indicators LCD Display, RF LED
Power Requirements 2 "AA" size alkaline or rechargeable batteries
Battery Life About 8 hours (alkaline)
Dimensions 3.8" x 2.4" x 8.26" (96 x 62 x 210mm) (WxDxH)
Weight 2.4 oz (65 g) without batteries
