AS-950

16 Channel Stereo Wireless Personal In-Ear Monitor System

Description

Affordable in-ear monitoring system.
The wireless Galaxy Audio AS-950 in-ear monitor system offers reliable quality and exceptional value. The receiver features a 50mW x 2 output with RF and stereo indicator. The transmitter features L/R level display, channel LCD display with channel up and down select, stereo XLR / 1/4″ inputs and a headphone output with volume control. The Galaxy Audio AS-950 In-Ear Monitor system also offers 16 selectable UHF frequencies. The Galaxy Audio EB4 ear buds feature titanium drivers, extended bass response, aluminum, alloy construction and come standard with all WPM models. This system comes in options of a Single system, Twin Pack system, and Band Pack system.  The Galaxy Audio AS-950 In-Ear Monitor system is perfect as an affordable in-ear monitor solution for the entry level user while providing a high quality sound for an economical price.

The Twin Pack and Band Pack Systems make it easy for any duo or band to Get Personal. The Twin Pack system includes two receivers and one transmitter. The Band Pack system includes four receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The AS-950-2 and AS-950-4 will allow a duo or band to send one stereo mix to 2 or 4 individuals. Additional transmitters may be purchased at a later date to add mixes.

An unlimited number of receivers may be added at any time.

See “Configurations” for system options.

  • 16 Selectable UHF Frequencies
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter
  • Single/Dual Rack Mount Kit Included
  • 200′ Range
  • EB4 Ear Buds Included

AS-950T Transmitter

  • 16 Selectable UHF Frequencies
  • AF L/R Indicator
  • Transmits in Stereo or Mono
  • Channel LCD Display
  • Up/Down Channel Select
  • XLR/1/4″ Combo Input
  • RF Output 10mW
  • Detachable 1/2 Wave BNC Antenna Included

AS-950R Receiver

  • Built-in Limiter
  • 50mW x 2 Earphone Out w/ Volume Control
  • Channel LCD Display
  • Up/Down Channel Select
  • Operates on 2 AA Batteries (Alkaline or Rechargeable)
  • 3.35 oz (95 g)
Configurations



AS-950
Wireless In-Ear Monitor with Standard EB4 Ear Buds: Includes 1 AS-950T, 1 AS-950R, EB4 ear buds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

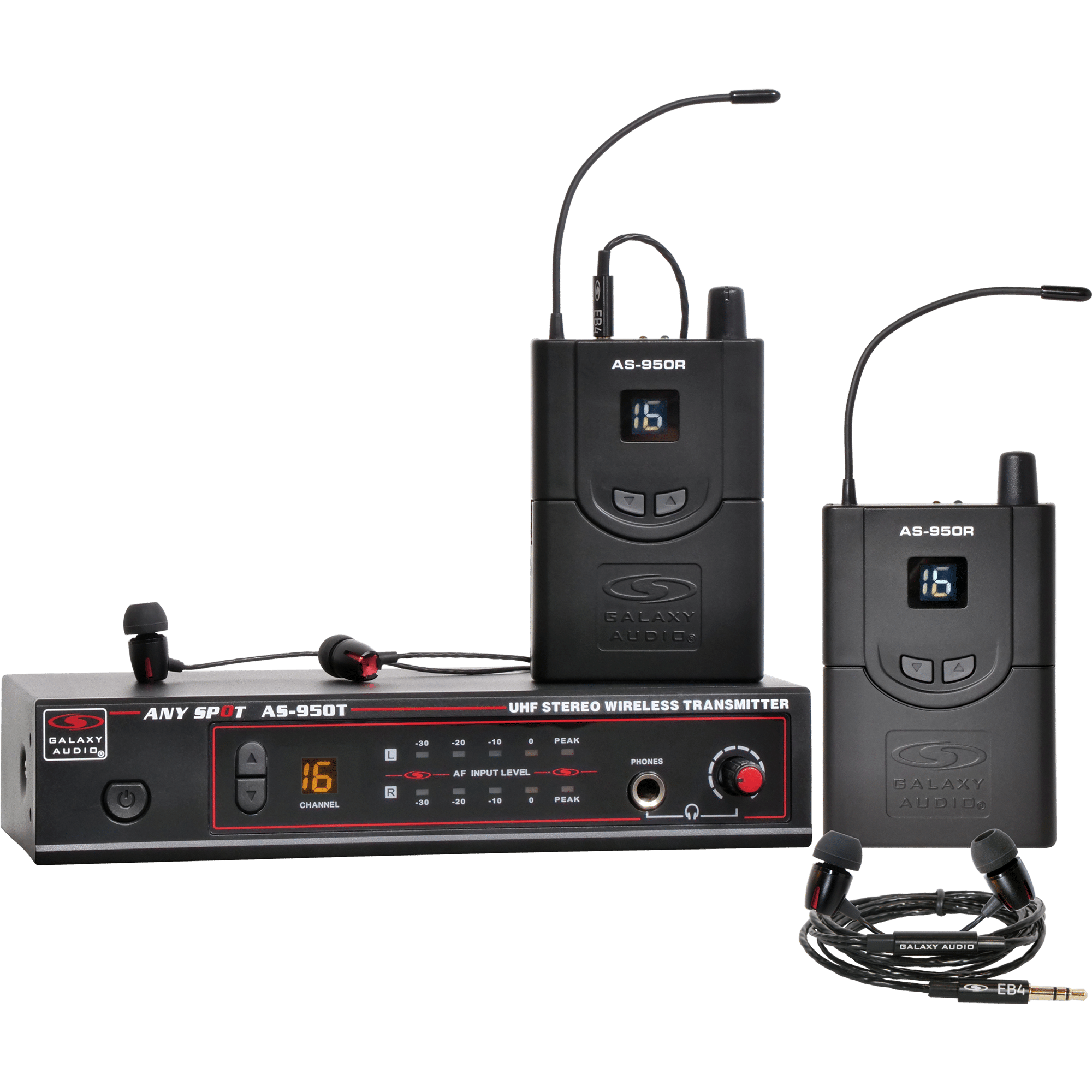

AS-950-2
Affordable Twin Pack in-ear monitoring system for the duo. An exceptional value for anyone needing to outfit a duo of performers with a twin pack in-ear monitoring system. This package includes (1) AS-950T, (2) AS-950R, (2) EB4 ear buds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

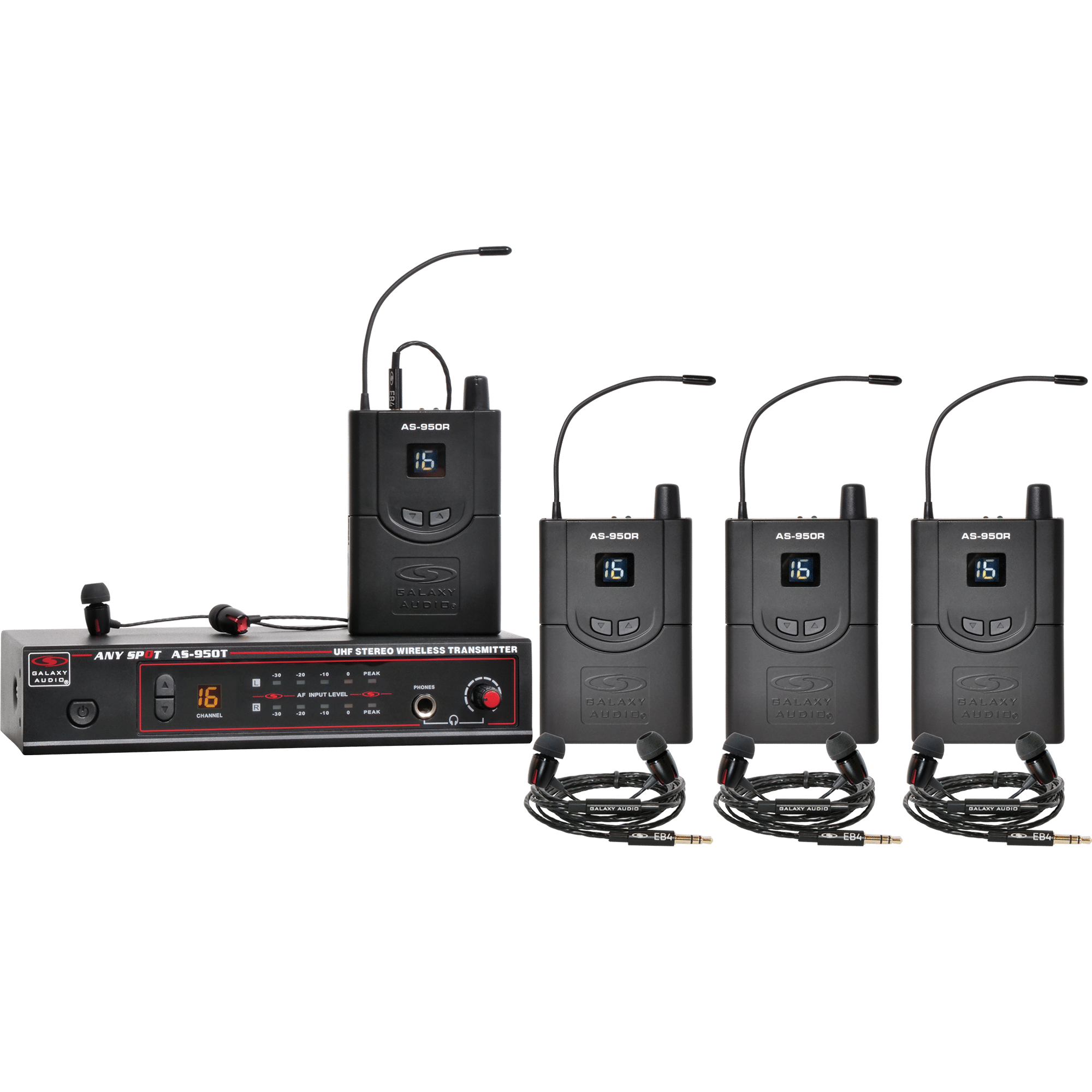

AS-950-4
Four sets of affordable in-ear monitoring. Reliable quality and exceptional value for anyone needing to outfit a band or a theater group with an in-ear monitoring system. This package includes (1) AS-950T, (4) AS-950R, (4) EB4 ear buds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:



Accessories

EB10

GALAXY AUDIO EB10 PROFESSIONAL DUAL DRIVER EARBUDS: Upgrading your earbuds can be a great improvement to your wireless monitor system or media player. The Galaxy Audio EB10 is a professional dual driver earbud system. It has two built-in transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise to yield accurate audio reproduction. The EB10 has a standard 3.5mm stereo jack, allowing it to be used with any brand of Wireless Personal Monitor or Digital Media Player.

The Galaxy Audio EB10 incorporates dual performance drivers and built-in crossover. The EB10's lightweight ergonomic design assures excellent sound isolation and maximum comfort during periods of extended wear. The EB10 comes with a Silver Plated cable with a Gold Plated connector.  The EB10 has a MAX Power Input of 150mW and a Sensitivity of 120 dB/mW. The EB10 has a cable over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable). The EB10 includes zippered carrying case with a cleaning rod and three pairs of Silicon Sleeves (small, medium and large).

  • Professional Dual Driver Earbuds
  • Allows musicians to monitor their mix with full detail.
  • Design assures excellent sound isolation and maximum comfort during periods of extended wear.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Nylon Soft Case Included

EB6

The EB6 features a single driver delivering full frequency performance. The Galaxy Audio EB6 has a cable over 4 feet long and the ear buds weigh 6g (less than 0.25 oz; excluding cable). The EB6 in-ear wired single driver earphones include a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).

  • Wideband Dyna Driver ear buds reproduce the full frequency range with natural mids, full highs, and rich bass.
  • They allow musicians to monitor their mix with full detail.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Ergonomic mechanical structure ensures long time, low fatigue use.

EB4

The EB4 are the standard Earbuds for the Galaxy Audio Wireless Personal Monitors.  The EB4 includes three pairs of Silicon sleeves (small, medium, and large) for fit and comfortable use.  The EB4 Earbuds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.

  • Stereo Personal Monitoring Earbuds
  • Single Titanium Drivers
  • High Fidelity with Extended Bass
  • Light and Comfortable
  • Aluminum Alloy Construction
  • Durable Cable

MREWD

Single and Dual Monitor Rack Mount Kit, includes 1 long rack ear, 2 short rack ear, 2 coupler plates, and assorted screws. The MREWD allows for racking a single or two wireless in-ear monitors systems or wireless mic systems in a 1U space. Works with PSE, DHX, CTS, AS-900, AS-1100, & AS-1400 systems.

19.69” BNC Cable & Connector Combo

This Includes:
One Wire BNC Connector Cable (Part# CN-BNCPM) and
One 19.69" (50 cm) RG58 Cable (Part# EXTBNC) for front mounting antenna.

AS-EC1

FIXED EAR CUP-BLACK Ear cup wraps around ear with 1/8" - 3.5mm Jack.

AS-EC2

RUBBER EAR CUP-BLUE Ear cup has rubber to wrap around ear for a more comfortable fit.

Universal Power Adaptor AS-UA12-14.5

Universal Power Adaptor. The AS-UA12-14.5 supplies 12V DC at 1000mA to Our Wireless Microphone & Monitor systems such as the DHT, DHX, DHTRQUAD, DHXR4, PSE, ECM, ECD, EDX, AS-900, Galaxy Audio AS-1100 & AS-1800 using the common 5.5mm barrel plug with center positive. The universal AC power adaptor comes with 4 different AC plug adaptors, and will accept any input voltage from 100 to 240v AC, 50-60Hz, which means it will work in nearly every country on the planet.

  • 12V DC 1000mA
  • 5.5mm PLUG
  • Converts Systems To Accept 230 VAC.

Power Supply PS-13.5-.35.5

Microphone power supply for AS-900T, AS-1100T, AS-1400T, VESR, VSCR, ECDR, EDXR, ECMR, PSER, DHTR, & DHXR.

  • 13.5 Volt 300 mA-
  • 5.5 mm PLUG
Specifications
AS-950 SYSTEM
Band UHF

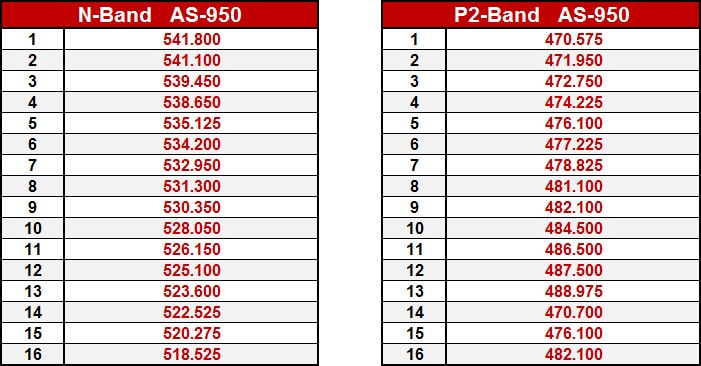

Frequencies Range CODE N 518 MHz - 542 MHz,
CODE P2 470 MHz - 489 MHz
Frequencies 16
Transmitter Output Level 10 mW
Operating Range Under Typical Conditions 200' (61m)
Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Audio Frequency Response +/-3dB 50Hz - 15kHz
Total Harmonic Distortion <1% @ 1kHz
Signal to Noise >80dBA
Maximum Deviation Range +/-40kHz
Dynamic Range >90dB A-weighted
Operating Temperature Range 14º F to 122º F (-10º C to 50º C)
Note: battery characteristics may limit this range

AS-950T TRANSMITTER
Main Frame Size EIA STANDARD 1/2 U
Modulation Mode FM Stereo Modulation
RF Output 10 mW
Max Audio Input Level +6dBV
Gain Adjustment Range 40dB
Controls Headphone Volume, Channel Up/Down, and Power Button
Indicators LCD Display, Input Level
Audio Input Line Level X 2, XLR / 1/4" Combo Jack
XLR Input Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Transmitter Antenna Detachable 1/2 Wave BNC Antenna
Dimensions 1.73" x 8.34" x 3.77"
(44 x 212 x 96 mm) (HxWxD)
Weight 19.75 oz (560 g)
Power Requirements 12-18 V DC at 300 mA, supplied by external power supply

AS-950R RECEIVER
Audio Output Level 50 mW x 2 Earphone Out with Volume Control
Sensitivity -94dBm for 30dB
Stereo Separation 40dB (at 1kHz)
Output Connector 1/8" (3.5 mm) Stereo Earphone Connector
Controls Volume, Channel Up/Down
Indicators LCD Display, Stereo LED, RF LED, Low Battery (LCD changes from Orange to Red and Flashes indicating less than an hour of Battery life left)
Dimensions 3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD)
Weight 3.35 oz (95 g) without batteries
Power Requirements 2 "AA" size alkaline or rechargeable batteries
Battery Life About 12 hours (alkaline)
Downloads
Quickstart Guide ( PDF - 2.45 MB )
Manual ( PDF - 5.07 MB )
Cutsheet ( PDF - 0.36 MB )
EQP Files ( 1.55 KB )
Support

AS-950 System Setup YouTube Link

AS-950R Receiver Battery Replacement Indicator YouTube Link   -   Galaxy Audio MP4

Changing Channels YouTube Link
