THIS PRODUCT HAS BEEN DISCONTINUED and replaced by the TQ8X

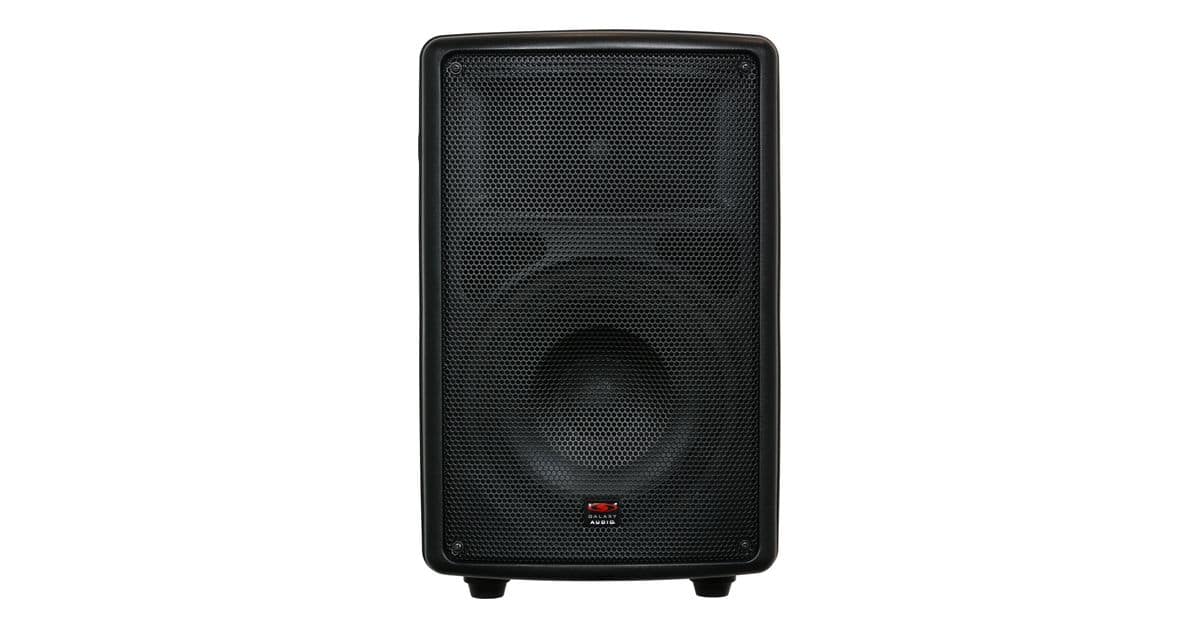

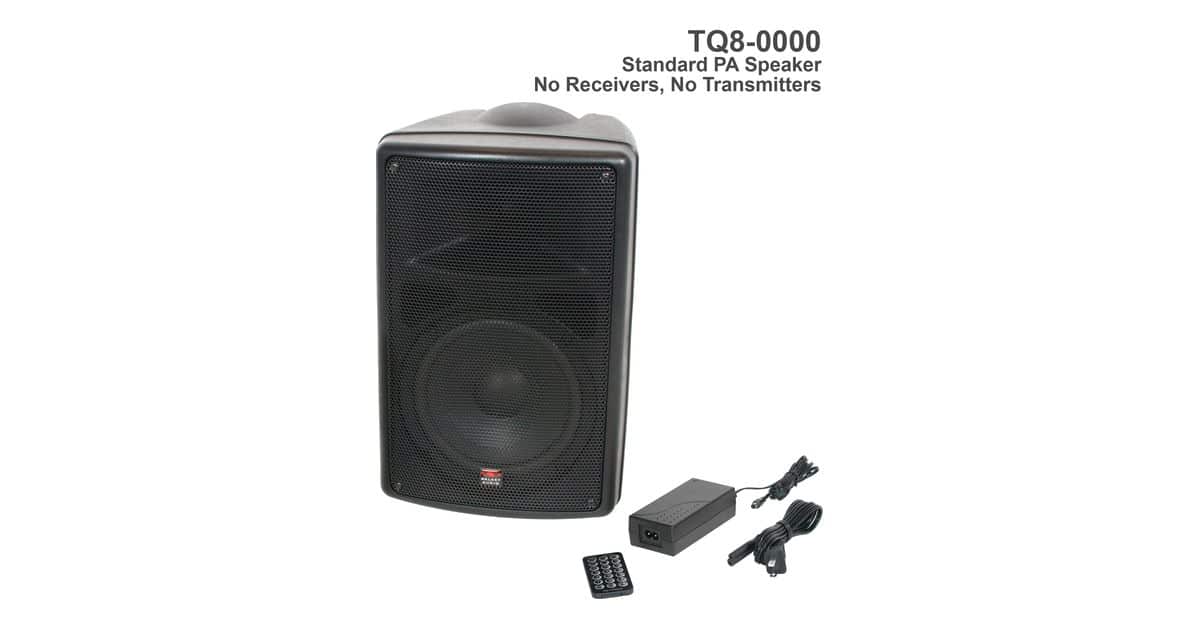

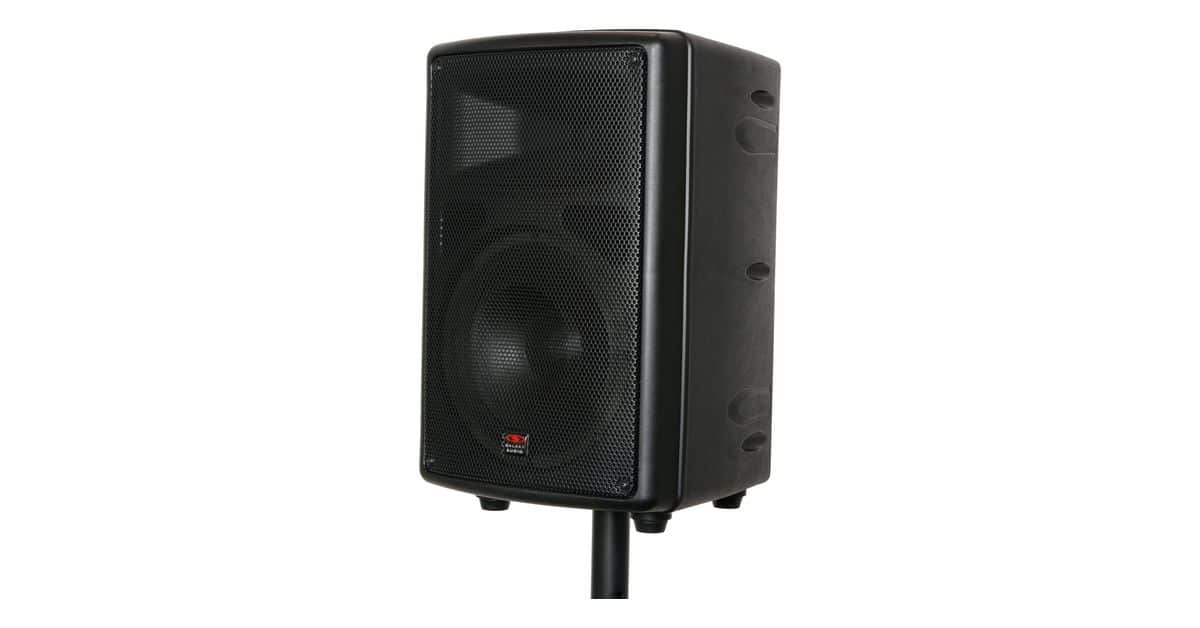

TQ8-0000 Base model includes the TQ8 PA Speaker, MP3 Remote, and Power Supply. |
|

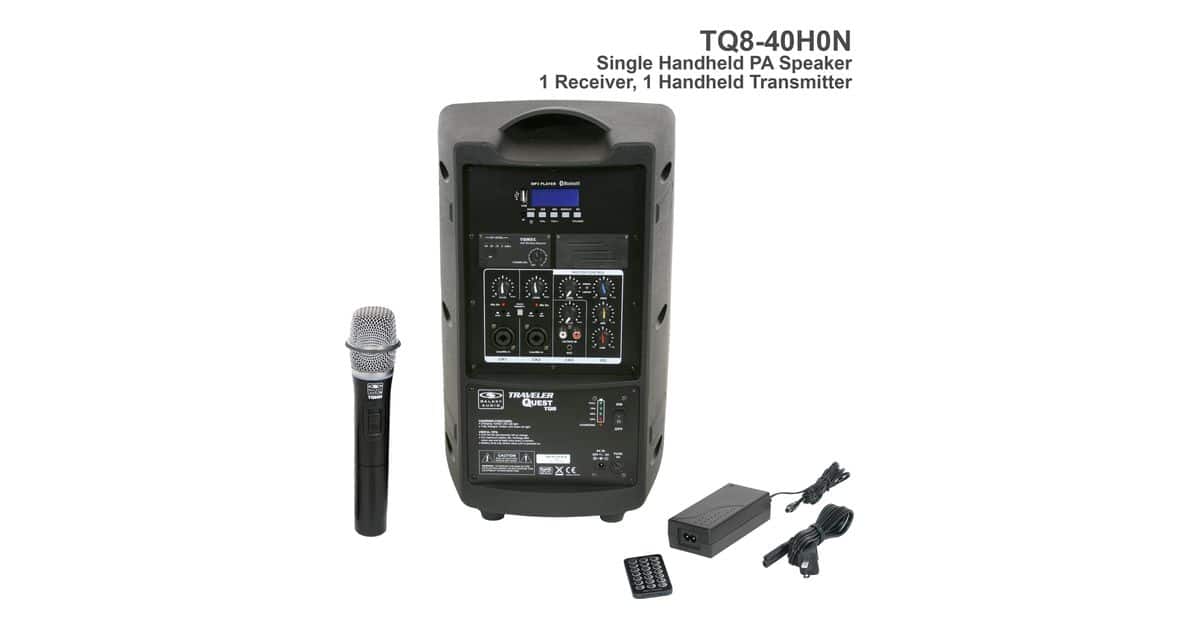

TQ8-20H0N / TQ8-40H0N Additional products in this configuration: |
|

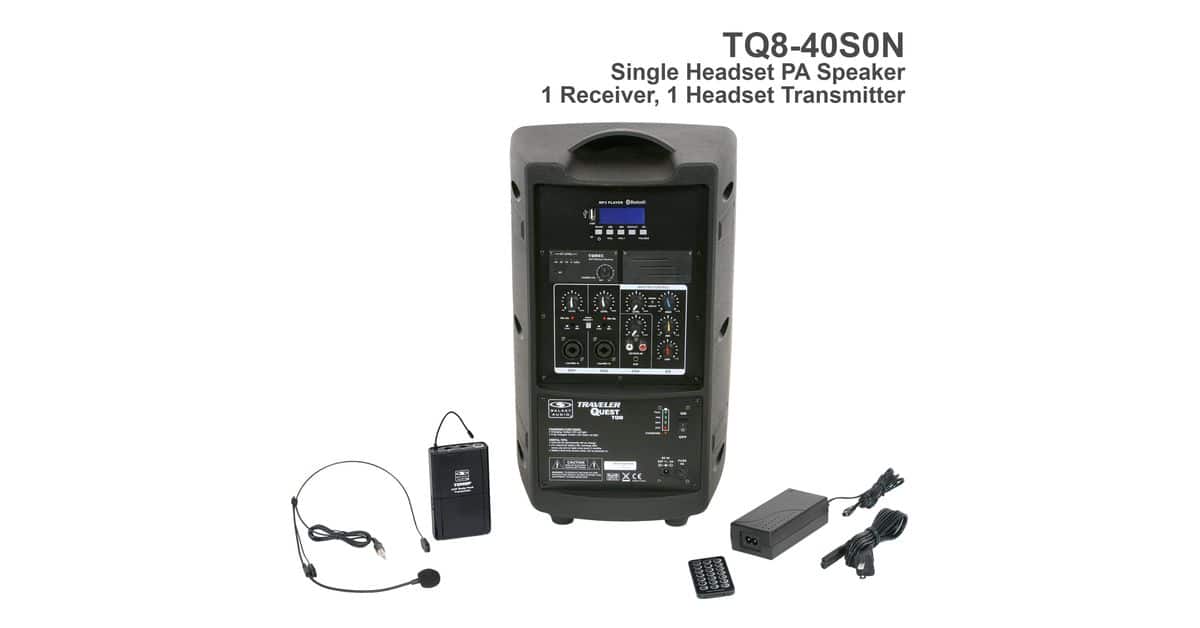

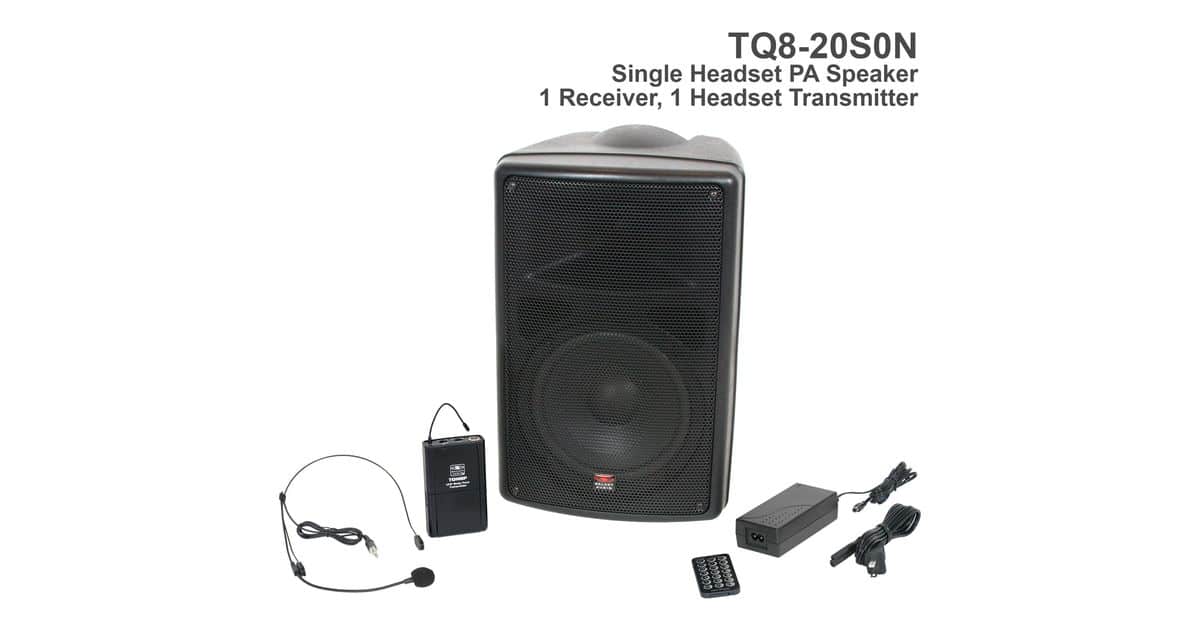

TQ8-20S0N / TQ8-40S0N Additional products in this configuration: |
|

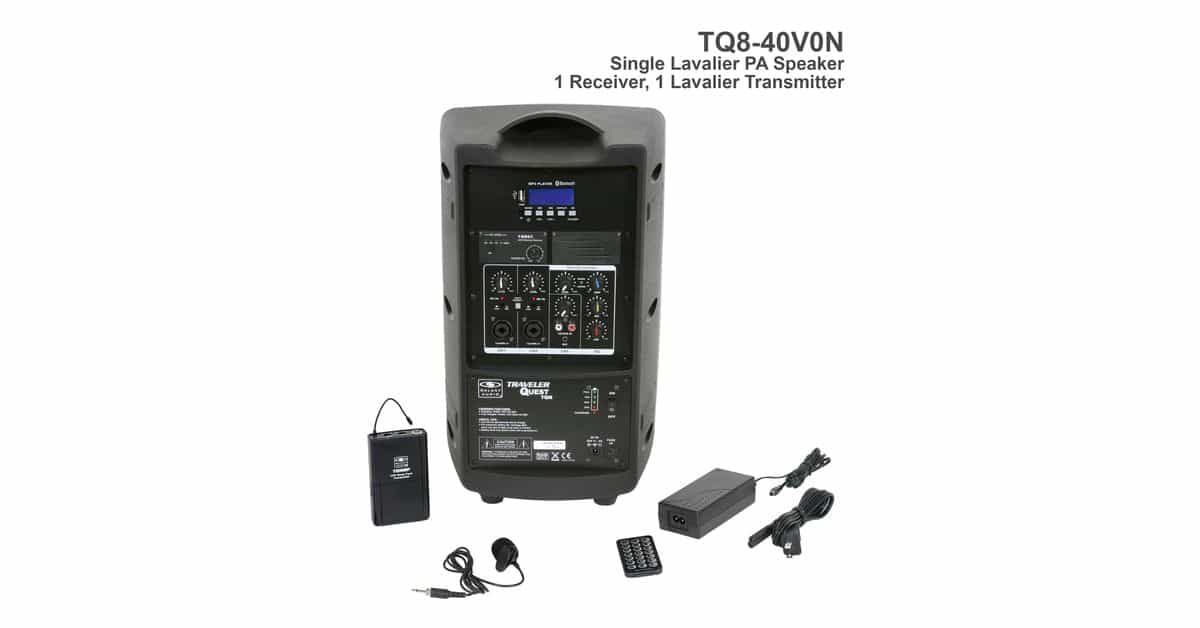

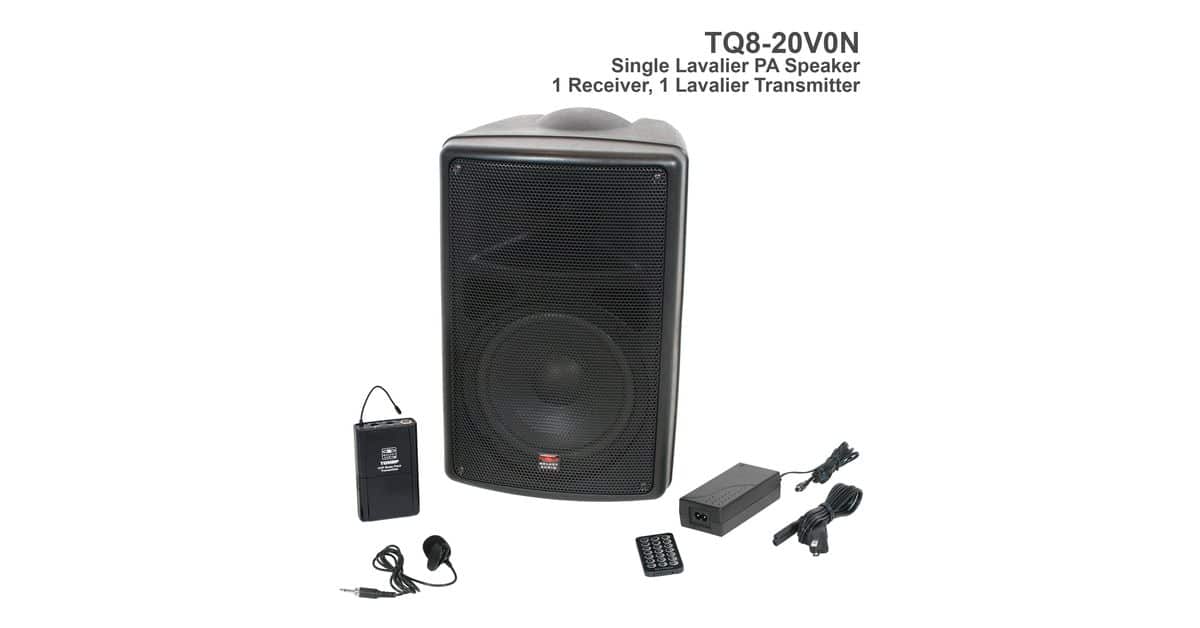

TQ8-20V0N / TQ8-40V0N Additional products in this configuration: |
|

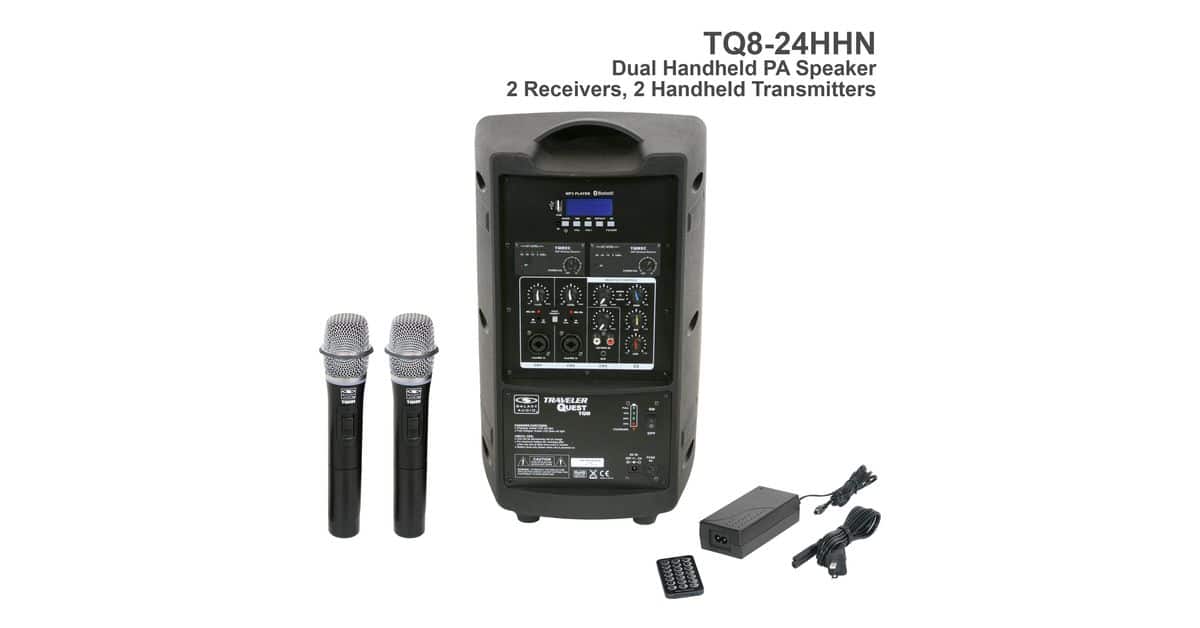

TQ8-24HHN Additional products in this configuration: |
|

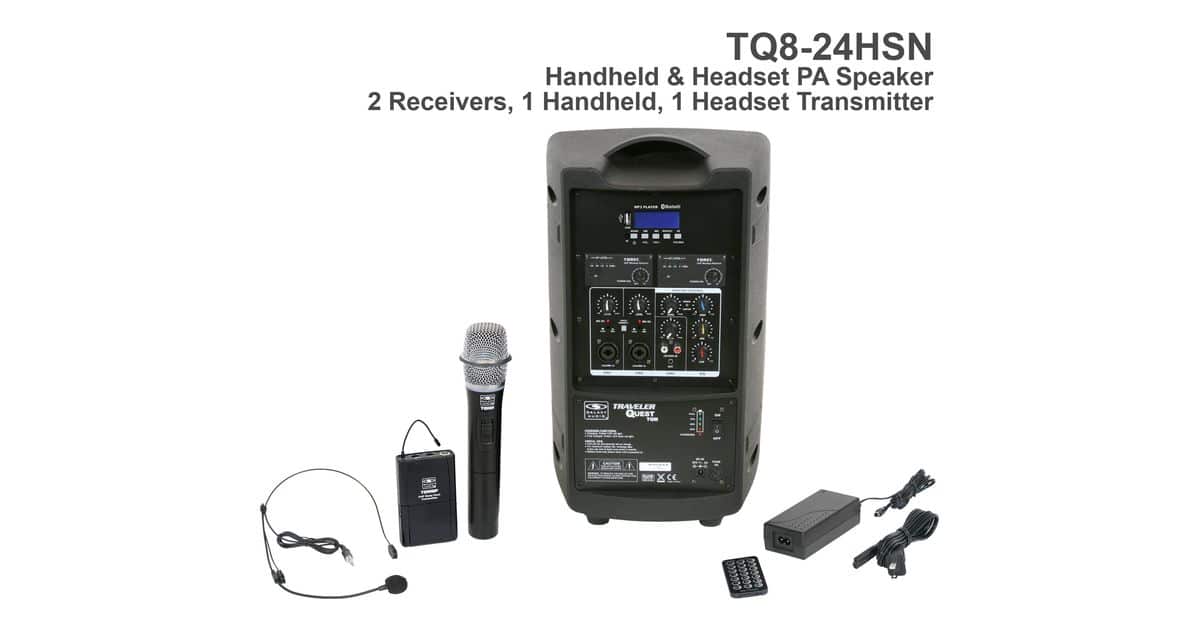

TQ8-24HSN Additional products in this configuration: |
|

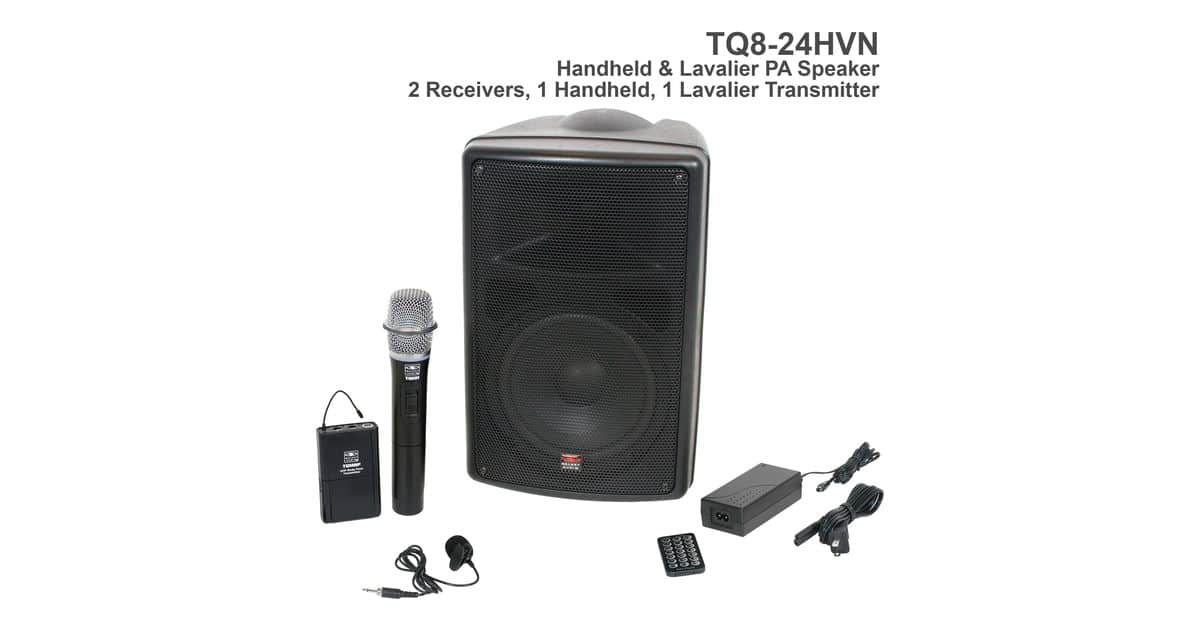

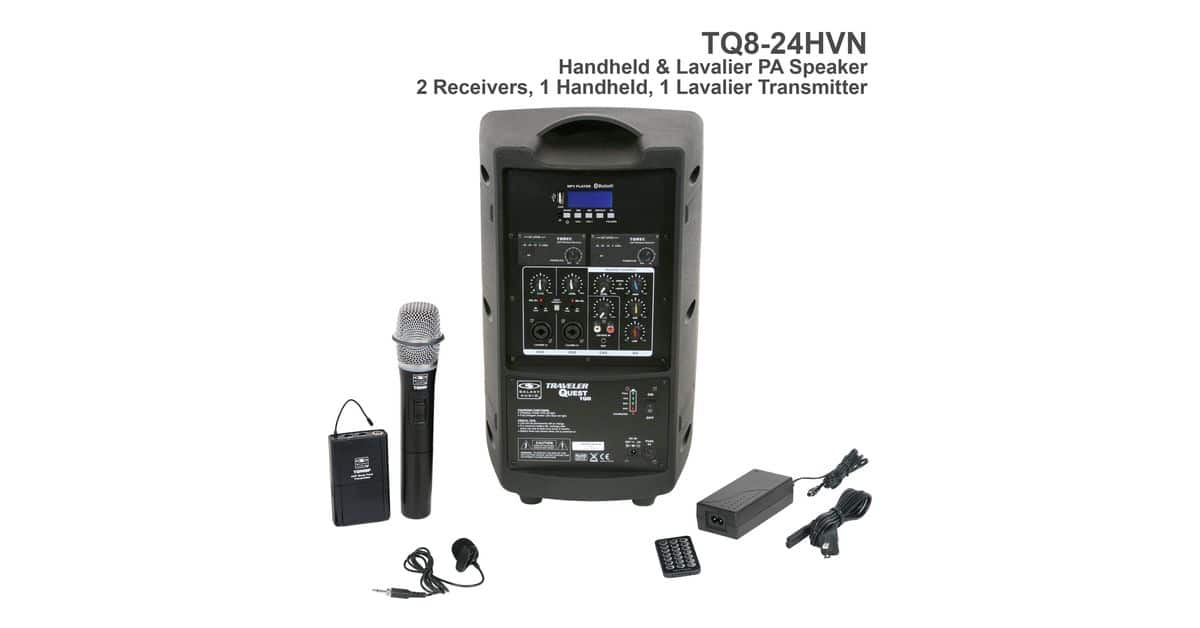

TQ8-24HVN Additional products in this configuration: |
|

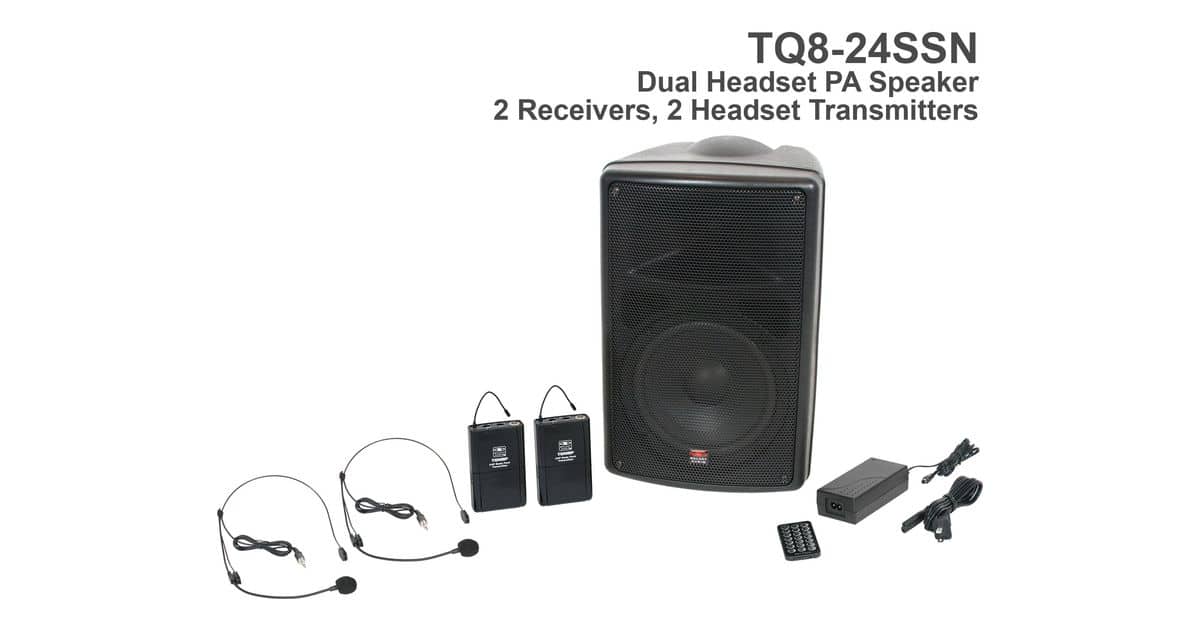

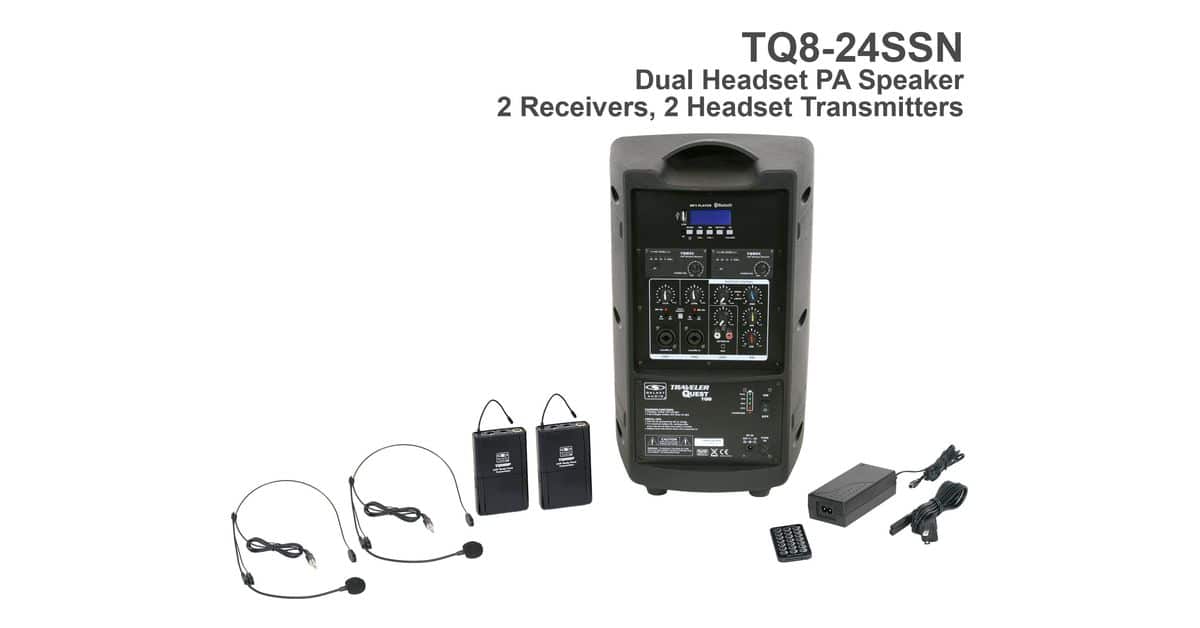

TQ8-24SSN Additional products in this configuration: |
|

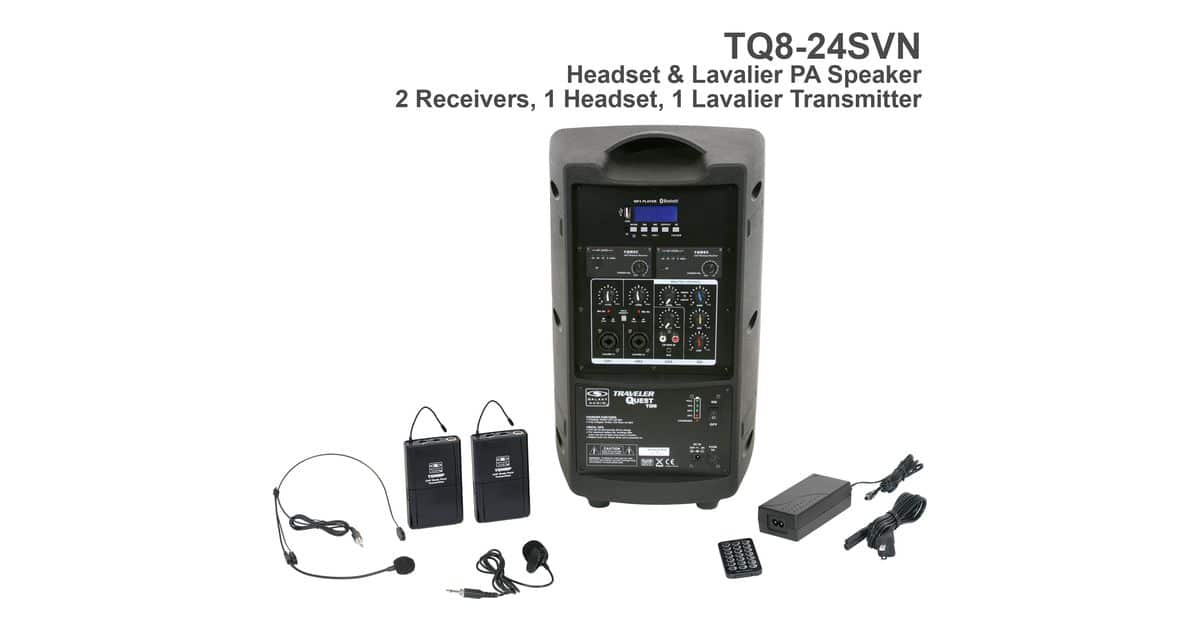

TQ8-24SVN Additional products in this configuration: |
|
TQ8-24VVN Additional products in this configuration: |
TQRECGalaxy Audio’s professional Single Channel UHF Receiver Module for the Traveler Quest Portable PA Systems will allow you to use a wireless microphone with a receiver card. This now means, with the Single Channel Receiver loaded into your Traveler Quest System, you can operate a wireless microphone!
|
|
TQHH Dynamic Wireless Handheld Mic for Traveler Quest 8Dynamic Handheld Microphone Transmitter for the Travel Quest 8 ● Cardioid Dynamic Element |
|
TQMBP Wireless Microphone Body Pack for Traveler Quest 8Body Pack Transmitter for the Traveler Quest 8 ● On/Off/Standby Switch |
|
HS13-UBK HeadsetThe Galaxy Audio HS13-UBK uni-directional headset comes as a standard option with the EDX Headset System. Its comfortable wrap-around design goes over both ears and helps ensure that this mic will stay in place. ● Uni-Directional |
|
LV13-UBK Uni-Directional LavThis uni-directional lavalier microphone comes as a standard option with the EDX Lavalier Systems. ● Uni-Directional |
|
SST-35 Speaker StandTripod Legs Portable Speaker Stand Dimensions:
|
|
SST-45 Speaker Stand
|
|
Life Saver Sand/Water Bag LSR38The Galaxy Audio Life Saver is a unique equipment stand stabilizer that may be used in a variety of ways in Audio, Video, Lighting, and Theatre applications. Any mic or speaker stand may become unstable because of a top-heavy center of gravity, a boom extended laterally, or simply because the stand is set on an uneven surface. When filled with Sand or Water the Life Saver provides enough weight at the bottom to stabilize most mic and speaker stand applications. The doughnut shape of the LSR38 ensures that the Life Saver will stay on the base of the stand, even if the stand is pushed or bumped. The LSR38 weighs 38lbs. when filled with sand, and 22lbs. when filled with water. The durable reinforced vinyl material and easy-fill water tight design allow the user to transport the Life Saver empty, and fill with water on location. The LSR38 dimensions are: 16" O.D. x 6" I.D. x 3" Thick. The Life Saver will pay for itself the first time it prevents your expensive mics or speakers from hitting the floor. (Sand/water not included)
|
|
Saddle Bag Sand/Water Bag SDB40The Saddle Bag Sand/Water Bag is designed to help improve the stability of speaker, keyboard, mic, lighting stands and many other types of stands. Also great as a boom counterweight. The Saddle Bag is constructed of a durable reinforced vinyl. When filled with sand (not included) the Saddle Bag weighs approximately 45lbs and 28lbs when filled with water. The filled Saddle Bag will help stabilize a top- heavy stand. Works great on keyboard, speaker, mic, lighting, and many other types of stands. Great for: bands, churches, theater, broadcast, recording & video production
Sand can be acquired at most home improvement centers, concrete supply warehouses, landscaping supply houses or a sand blasting supply company. Tip: Coarse dry commercial sand works best. Use a funnel for faster fills. Equipped with large 1-inch inner diameter plugs for ease of filling. WARNING |
|
Standformer MST-C60With the Galaxy Audio Standformer MST-C60 portable microphone stand, you can quickly transform from a standard straight microphone stand to a fully adjustable boom stand in seconds. The patented boom storage allows the boom to be concealed inside the extendable upright shaft for use as a standard straight mic stand. The boom will quickly and easily adjust out to convert to a boom arm stand. No extra pieces or parts are required. Because of the 5 Disc, Anti-Slip Cam, the boom arm can hold up to 2 lbs. fully extended. The aluminum alloy base and durable clutch design make this your next and last choice for a microphone stand.
|
|
Standformer MST-C90The Galaxy Audio MST-C90 Microphone Standformer design, you can quickly transform from a standard straight microphone stand to a fully adjustable boom stand in seconds. The patented boom storage allows the boom to be concealed inside the extendable upright shaft for use as a standard straight mic stand. The boom will quickly and easily adjust out to convert to a boom arm stand. No extra pieces or parts are required for this unique mic stand. Because of the 5 Disc, Anti-Slip Cam, the boom arm can hold up to 2 lbs. fully extended. The aluminum alloy base and durable clutch design make this your next and last choice for a compact microphone stand.
|
Frequencies | N2 517.550MHz N4 521.850MHz |
---|---|
Output | 150 Watt |
Max SPL | 105 dB |
Frequency Response | 70Hz ~ 18kHz ±3 dB |
Battery | 12V, 2.8Ah * 2 (Lead-Acid) Rechargeable Batteries |
Battery Operation | 24+ Hours (dependent on program) |
Battery Charging | 7 ~ 8 Hours |
Speaker | 8" LF Woofer / 1" Horn |
S/N Ratio | >70dB |
Sensitivity | Input Dependent |

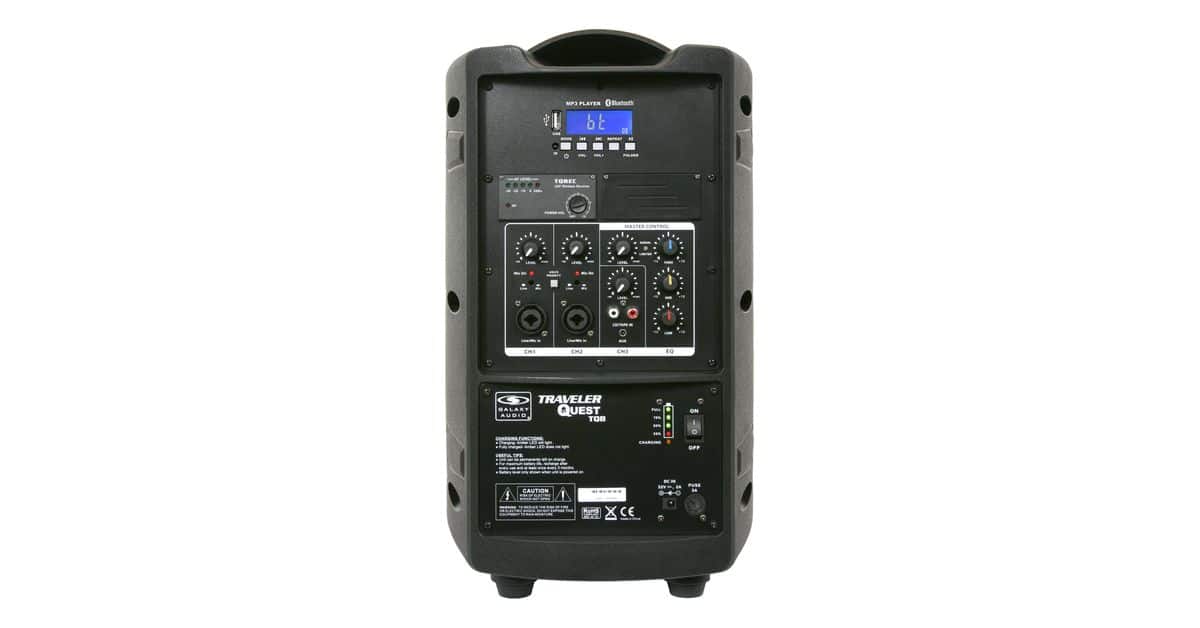

Audio Input | Two XLR/1/4" Combo Mic/Line In, RCA -1/8" Stereo-Aux Input, Bluetooth, & USB (thumb/stick drive only) |
E.Q. | Low, Mid, High |
Indicators | Charging Meter LED, Signal/Limiter, Mic On |
Power Requirements | 32 VDC 2A (Universal 100-240VAC 50/60Hz Power Supply Included) |
Antenna | Built-in Antenna |
Master Controls | Master Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, Voice Priority |
MP3 Player Controls | Power/Mode, Play/Pause, Folder, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down |
Bluetooth Operating Distance | Tested up to 100' (30 m) (Under Optimum Conditions) |
Operating Distance | Tested up to 200' (60 m) (Under Optimum Conditions) |

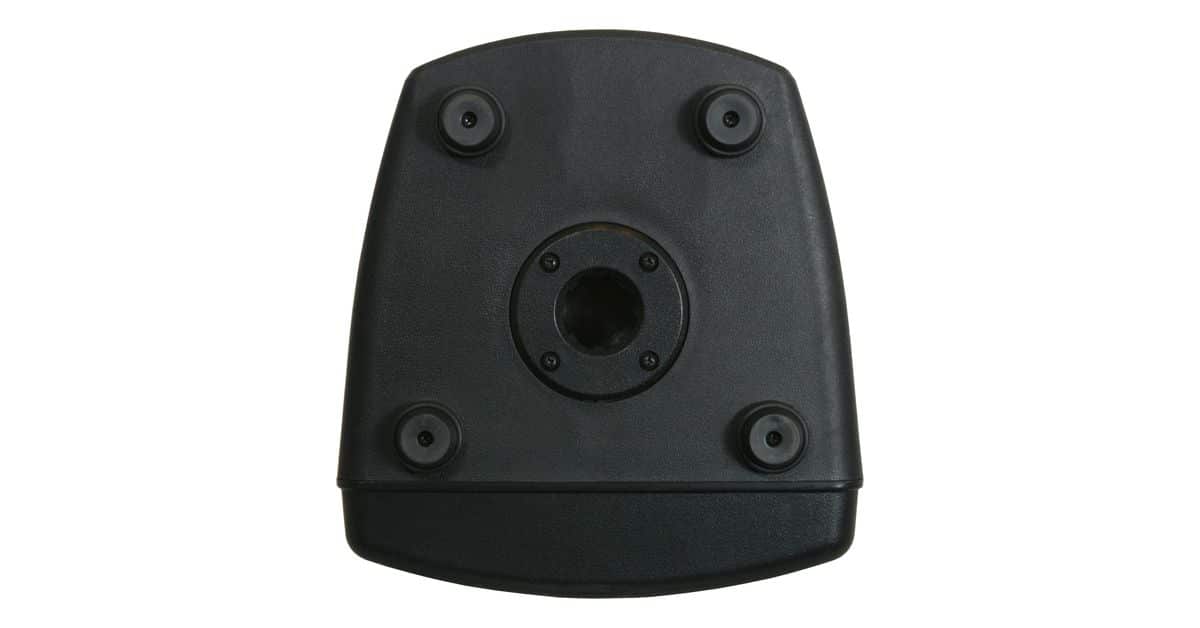

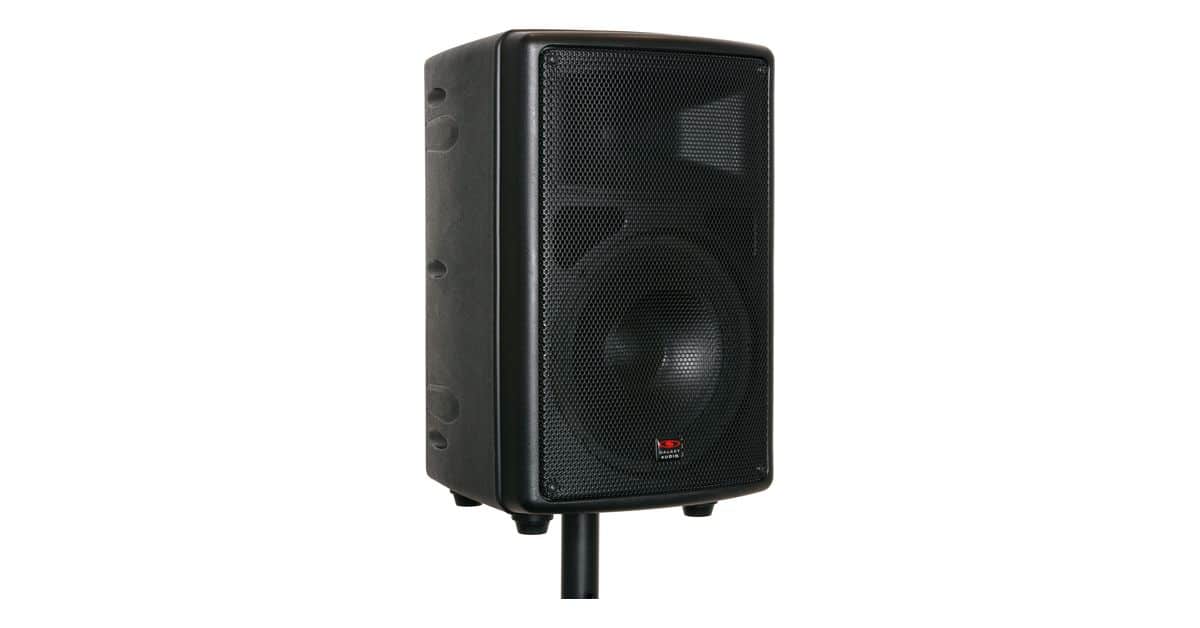

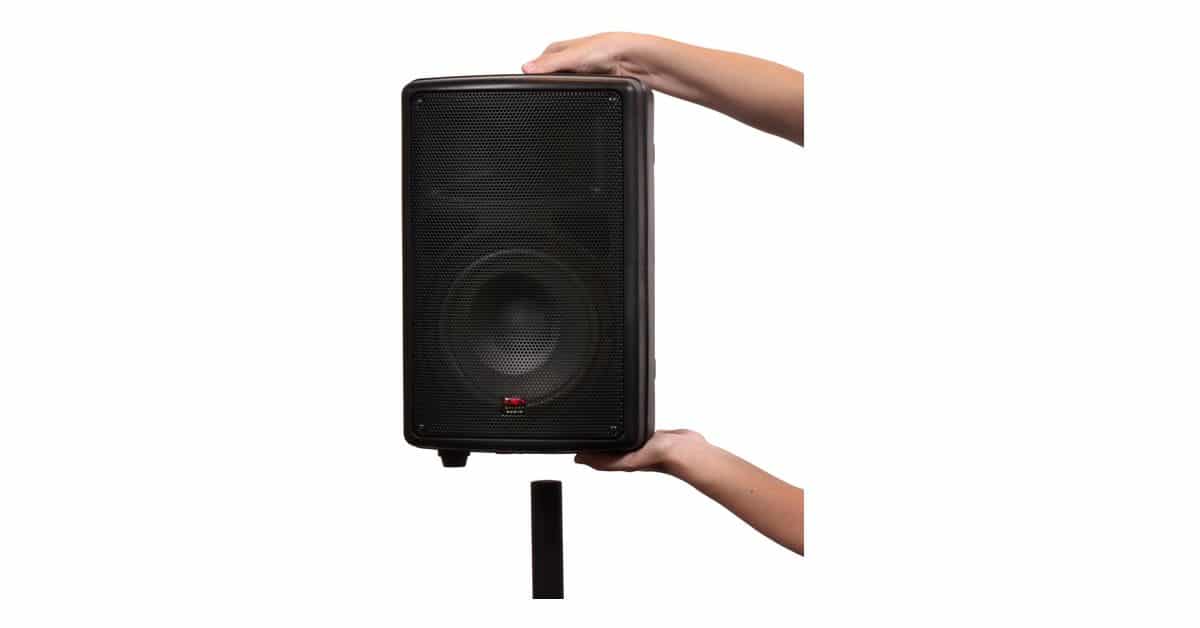

Stand Mountable | 1 3/8" (35 mm) speaker stand |
Dimensions | 17.25" x 10.5" x 11.5" (438 x 267 x 292 mm) |
Weight | 18.85 lbs (8.55 kg) (batteries included) |
TQ8 Manual ( PDF - 7.45 MB )
