MSPA5 Micro Spot - Powered 100-Watt Personal Vocal Monitor with EQ

Rated 0 out of 5
(be the first to review)

$229.99

Description

The Powered Micro Spot model MSPA5, incorporates design features of it both its big & little brother, the Powered Hot Spot & Powered Nano Spot, maintaining a similar compact design.

The Micro Spot Series is designed to be used in a wide array of applications: churches, schools, courtrooms, fixed installations, or on stage. The Galaxy Audio MSPA5 is powered by an internal 100-watt amplifier, delivering quality sound through the specially designed 5″ full-range speaker. This portable powered active speaker provides superior vocal clarity. The Powered Micro Spot will accept mic or line level with its XLR (+48V phantom power), 1/4″, or 1/8″ input.

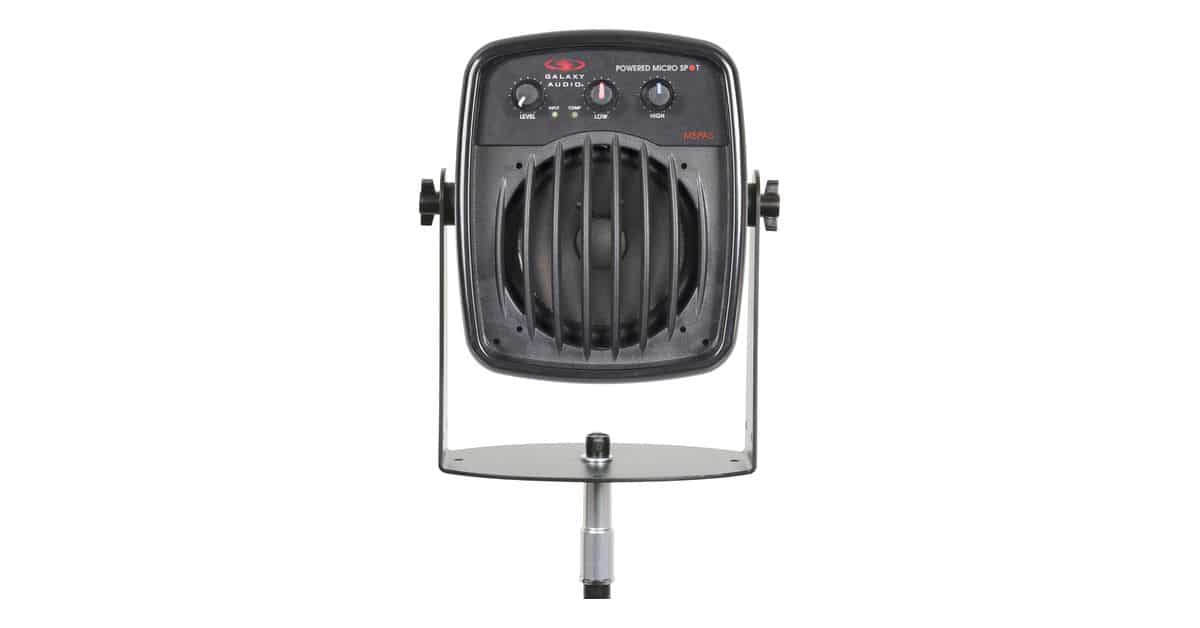

Volume and EQ controls are conveniently located on the front of the portable powered active speaker. Additionally, the Galaxy Audio MSPA5 has an indicator for the built-in compressor/limiter, which helps prevent overdriving of the speaker and distortion.

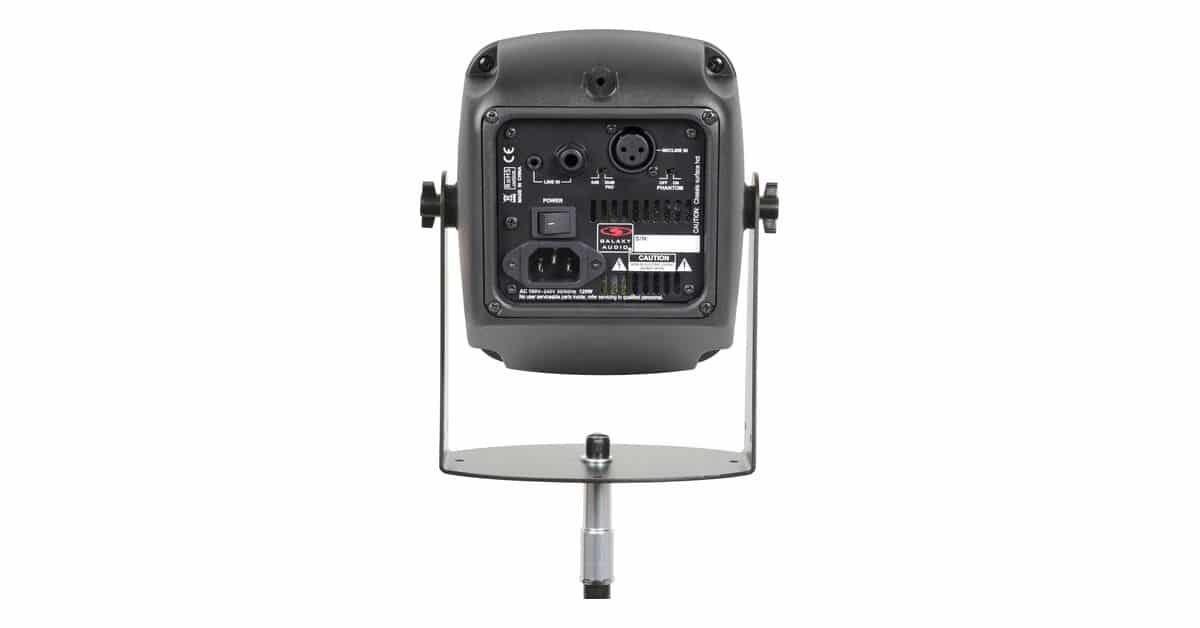

The Powered Micro Spot can be mounted to a mic stand or be wall/ceiling mounted with the included hardware.

  • 100 Watts
  • 5″ Ceramic Driver

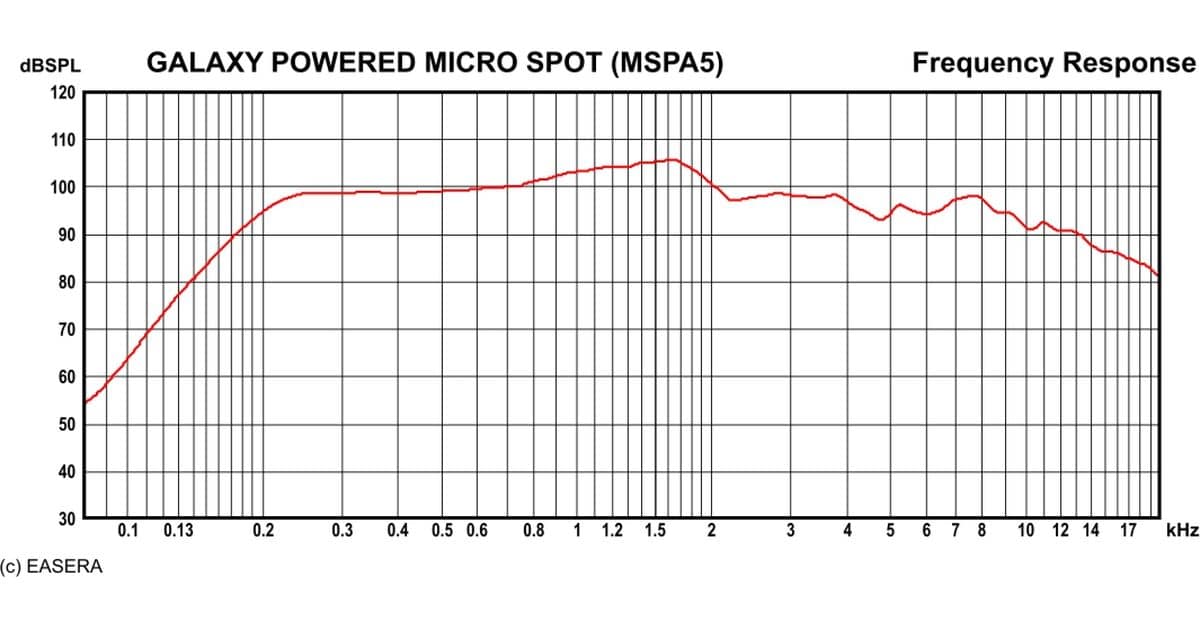

  • Freq. Response 160Hz – 20kHz
  • Sensitivity: 88dB, 1 W @ 1 m
  • Max SPL 108dB
  • Input Connections: Mic Line, XLR, 1/4″ & 1/8″
  • High Impact ABS Plastic
  • 20dB Pad
  • 2 Band EQ
  • Built-in Compressor
  • +48V Phantom Power
  • Internal Power Supply
  • Stand/Wall Mount Bracket Included
Accessories

Life Saver Sand/Water Bag LSR38

The Galaxy Audio Life Saver is a unique equipment stand stabilizer that may be used in a variety of ways in Audio, Video, Lighting, and Theatre applications. Any mic or speaker stand may become unstable because of a top-heavy center of gravity, a boom extended laterally, or simply because the stand is set on an uneven surface. When filled with Sand or Water the Life Saver provides enough weight at the bottom to stabilize most mic and speaker stand applications. The doughnut shape of the LSR38 ensures that the Life Saver will stay on the base of the stand, even if the stand is pushed or bumped. The LSR38 weighs 38lbs. when filled with sand, and 22lbs. when filled with water. The durable reinforced vinyl material and easy-fill water tight design allow the user to transport the Life Saver empty, and fill with water on location. The LSR38 dimensions are: 16" O.D. x 6" I.D. x 3" Thick. The Life Saver will pay for itself the first time it prevents your expensive mics or speakers from hitting the floor. (Sand/water not included)

  • May be filled with sand or water
  • Protects mics and speakers from damage
  • Helps keep microphone, speaker and lighting stands upright
  • Sand/Water not included
  • Unique doughnut shape keeps bag on the stand

Saddle Bag Sand/Water Bag SDB40

The Saddle Bag Sand/Water Bag is designed to help improve the stability of speaker, keyboard, mic, lighting stands and many other types of stands. Also great as a boom counterweight. The Saddle Bag is constructed of a durable reinforced vinyl. When filled with sand (not included) the Saddle Bag weighs approximately 45lbs and 28lbs when filled with water. The filled Saddle Bag will help stabilize a top- heavy stand.

Works great on keyboard, speaker, mic, lighting, and many other types of stands.

Great for: bands, churches, theater, broadcast, recording & video production

  • Dual wing design
  • Nylon handle with clip
  • May be filled with sand or water
  • Helps protect equipment from damage and keeps stands upright and stable

Sand can be acquired at most home improvement centers, concrete supply warehouses, landscaping supply houses or a sand blasting supply company. Tip: Coarse dry commercial sand works best. Use a funnel for faster fills. Equipped with large 1-inch inner diameter plugs for ease of filling.

WARNING
1. We are not responsible for any damage caused by the use or misuse of the bag.
2. The water filled bag should not be used near electrical wiring.
3. Only dry sand should be used in a dry bag.
4. Water should not be left in the bag for long periods.
5. Do not subject the bag to freezing weather when filled with water.
6. The bag is not intended as a flotation device.

MSA-1

Spun aluminum mic stand adapter with 5/8" Female thread insert and 3/8" female threaded insert at opposite end.

The MSA-1 will mount a unit to any microphone stand. Works with all HOT SPOT MONITORS.

YBMS

Included Yoke Bracket and hardware kit for MS5 and MSPA5. Will allow for mounting to wall or mic stand.

  • Mounts any MS5 or MSPA5 to a wall or stand
  • Available in black
  • Hardware Kit Included
Specifications
Frequency Response 160Hz - 20kHz
Output 100 Watts @ 16 Ohms
Sensitivity 88dB, 1 W @ 1 m
Max SPL 108dB
Speaker Complement 5" Ceramic Driver
Nominal impedance 16 Ohms
Equalization Two Band Center Detent:
Lo: 200Hz
Hi:10kHz
Input Connections One Balanced 1/4", One Balanced XLR with +48 VDC Phantom Power, and One 1/8" Stereo Summing
Controls Input Level, High Frequency, Low Frequency, 20dB Pad, Phantom Power
Indicators Power LED, Compressor LED
Power Requirements Internal Power Supply, 120-230 VAC~ 1.5A, 50/60Hz
Splowt 25.11
Enclosure Materials High Impact ABS Plastic
Mounting/Rigging Built-in yoke bracket points
Color Black
Accessories IEC Power Cable, Wall/Stand Bracket Mount Kit, Rubber Feet, Quick Start Guide
Dimensions 6.26" x 6" x 7.52" (159 x 152.4 x 191 mm)(HxWxD)
Weight 4.3 lbs (1.95 kg)
Downloads
Manual ( PDF - 8.57 MB )
Cut Sheet ( PDF - 0.45 MB )
Quick Start Guide ( PDF - 2.01 MB )
