$59.99$99.99

JIB/BT4R XLR Bluetooth Receiver

Rated 0 out of 5
(be the first to review)
Description

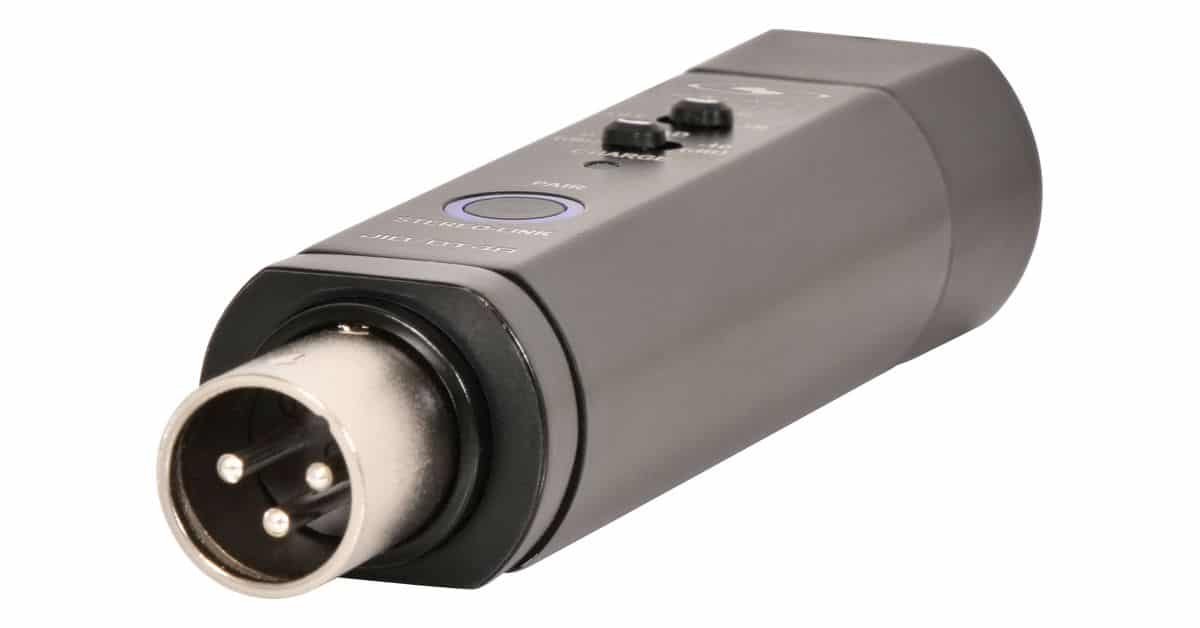

The JIB/BT4R is a lightweight, compact, portable XLR Bluetooth® receiver that allows a user to transmit high quality mono Bluetooth® audio wirelessly from a smart phone to an active speaker or mixing console. The receiver offers a practical, straightforward audio solution for venues that require a quick wireless set up. Just pair the receiver to a Bluetooth® enabled device such as a smart phone and plug it into an active speaker or mixing console. Using the JIB/BT4R eliminates cable clutter for a clean, hassle free set up. The rechargeable receiver enlists an internal 3.7V Lithium battery and comes standard with a micro USB charging cable that can be plugged into a computer or A/C adapter to charge. For a more permanent mixer installation, it can stay plugged in for a continuous power source. DJs accepting requested songs that they might not have in their track list can allow a user to Bluetooth® a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver while using another mic input for vocals. The JIB/BT4R can also be used for a number of other audio streaming applications including dance studios, aerobics classes, school and gym classes, house of worship, karaoke, weddings, and many more.

  • Transmit Audio from Phone to Active Speaker or Mixer
  • Single/Dual Receivers for Mono or Stereo Playback
  • Lightweight, Compact, & Portable
  • Micro USB Rechargeable

JIB/BT4RS Dual Receivers

The JIB/BT4RS wireless Bluetooth® receiver system comes with two receivers to create a stereo-link. After pairing a phone to a receiver via Bluetooth®, a second receiver can be linked to the first receiver to work in tandem. This turns audio transmission into a stereo playback to better fill a room with more sound. Both receivers can then be plugged into two XLR inputs on a mixing console and be outputted to two active speakers or amplifiers.

Configurations
JIB/BT4R
Comes as a single receiver with a micro USB charging cable.
JIB/BT4RS
Comes as two receivers that work in tandem for a stereo-link playback with a micro USB charging cable.
Specifications
Bluetooth® Version V4.0
Frequency Range 2.4GHz - 2.48GHz

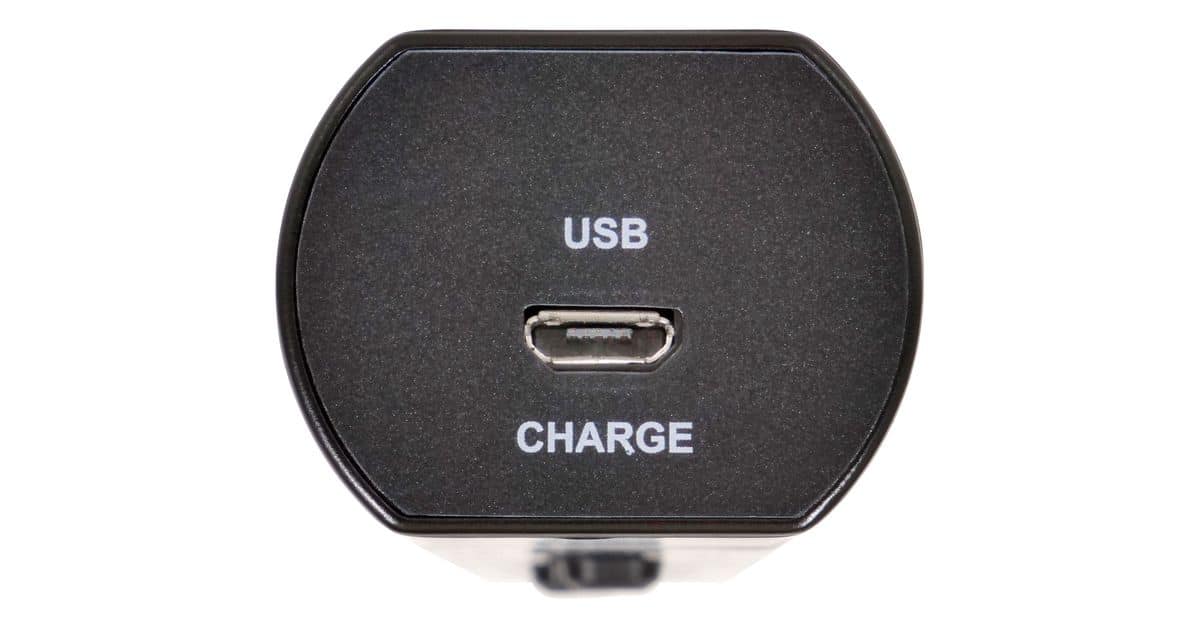

Input Connector Micro USB Charging Input

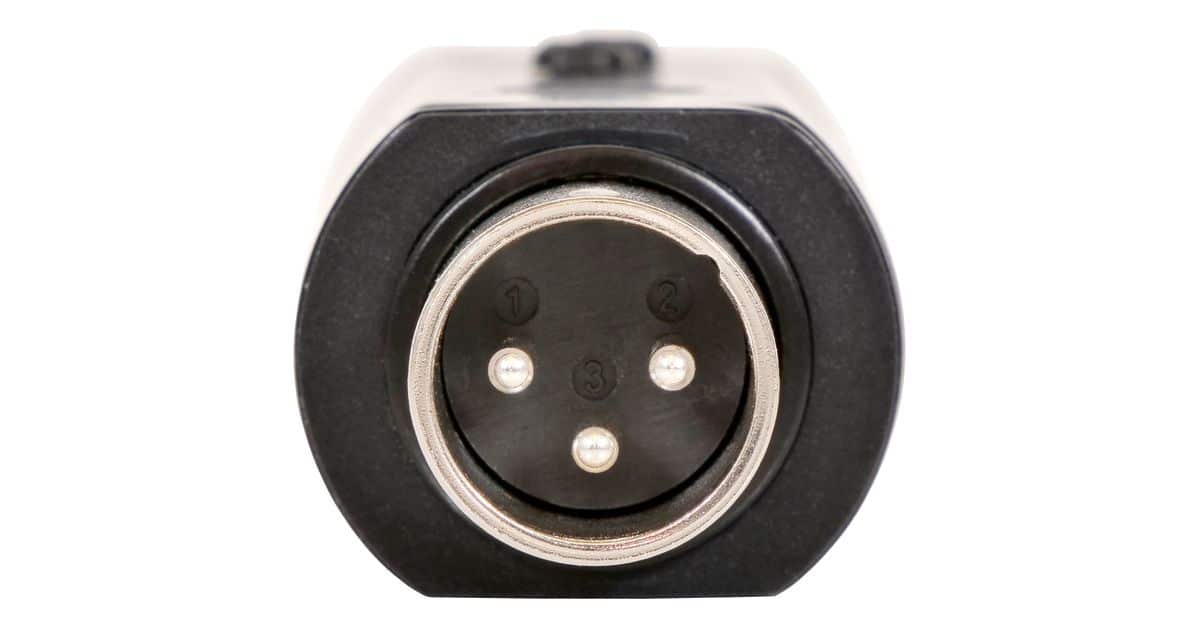

Output Connector XLR/M
Controls Power, PAD Switch, Bluetooth Pair/Stereo-Link Button
Indicators Charging LED, Stereo-Link/Pair LED
Sensitivity -80dBm < +/-0.1% BER
Signal to Noise >75dB
Total Harmonic Distortion <0.1%
Operating Range Under Typical Conditions 32.8' (10 m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Operating Temperature Range -40º F to 176º F (-40 Cº to +80 Cº)
Note: battery characteristics may limit this range
Dimensions 4.9" x 1.32" x 1.1"
(124 x 33.4 x 27.5 mm)(HxWxD)
Weight 3.35 oz (95 g)
Power Requirements Internal 3.7V Rechargeable Lithium Battery Power Supply
Battery Operation About 10 hours
Downloads
JIB/BT4R Manual ( PDF - 3.86 MB )
JIB/BT4R Quickstart Guide ( PDF - 1.59 MB )
JIB/BT4R Cutsheet ( PDF - 0.26 MB )
