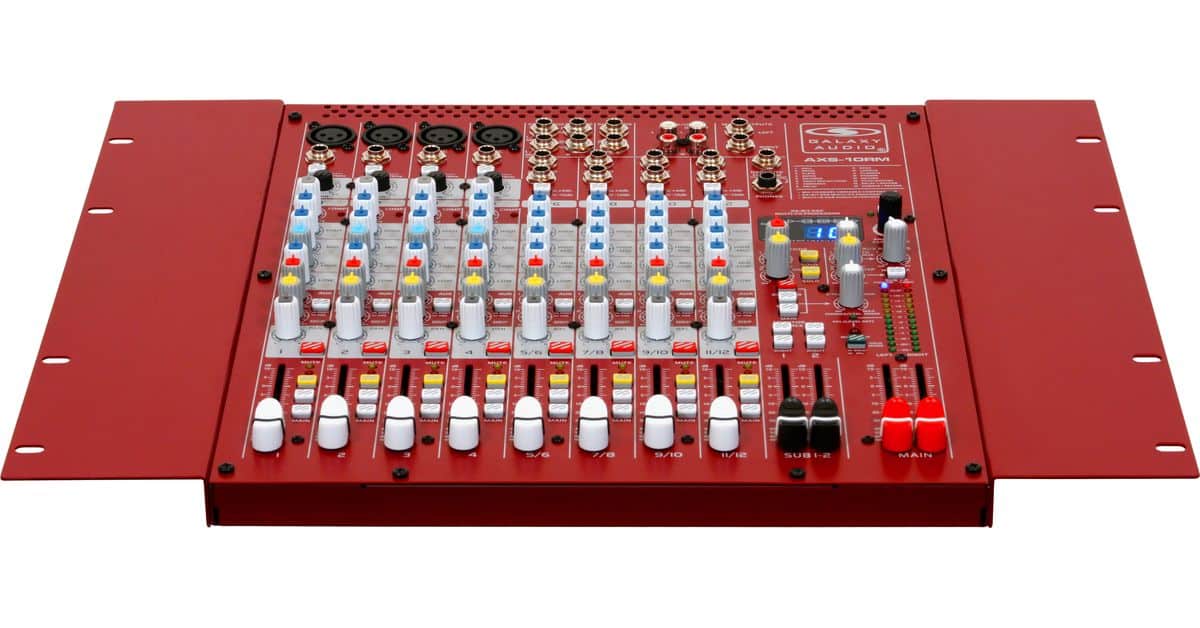

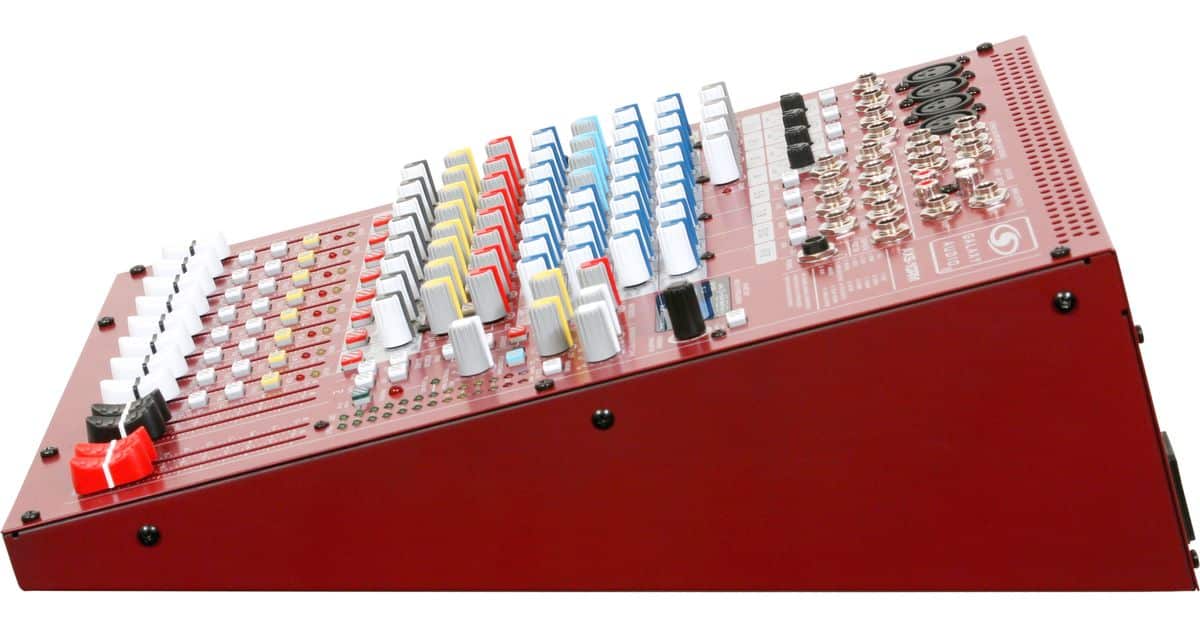

AXS-10RM MIXER

Or

Rated 0 out of 5
(be the first to review)
Description

THIS PRODUCT HAS BEEN DISCONTINUED.

The AXS line features a full line of analog audio mixers. The AXS series offers 5 different desk top models with 3 available in a rack mount version. All models have a USB connection to link to a computer for stereo playback or recording and have +48V phantom power to the XLR inputs. Additionally, all mono inputs provide an easy to use single knob compression. Most models feature a 3 band EQ with sweep-able mid-range and low cut filter. All models include AUX sends on each channel which are either pre/post or switchable for monitoring/FX or external send.

All AXS models have built-in Studio Grade DSP FX with 16 effects. Effects include Reverb, Chorus, Flanger, Delay, Pitch Shifter, and Multi-Effects. Each effect has a storable user parameter and a tap button with a tempo light that provides for delay and echo settings.

Each channel also provides the user with Clip LEDs, Mute, Subgroup Routing, Solo, L/R Panning and PFL. The mono channels also feature 1/4″ TRS inserts for flexible connection to outboard effects and processing. Whether using in a fixed install or on the road, the 60mm logarithmic faders and sealed rotary controls will provide clean, reliable sound.

  • 10 Input, 4 XLR Mic Input & 4 Stereo Inputs
  • 4 +48V Phantom Powered Mic Preamps
  • 4 Easy to use Built in Compressors
  • 3 Band EQ with Sweep Mids on Each Channel
  • 16 Effects with Tap
  • USB Audio Interface
  • 4 Channel Inserts
  • 2 AUX Sends Per Channel
  • PFL on Each Channel
  • Balanced Main Outputs
  • Headphone Output
  • Control Room Controls
  • 60 mm Logarithmic Faders
  • Sealed Rotary Controls
  • Switching Power Supply
Specifications
Max. Input Level Mic +22dBu, Other Line +20dBu
Max. Output Level Main XLR +28dBu, Other Output +22dBu
Meters 3 Color LED
Sensitivity 0VU=+4dBu
Master Meter 12 Segment, -30dB to clip
Channel Meter Red LED, clip
Frequency Response +/- 1dB, 20Hz - 30KHz
Mic CMRR at 1kHz >70dB typical
THD+n at +14dBu at 1kHz Mic to mix out <0.005%
Crosstalk (@1KHz) Fader shutoff >89dB, Mute shutoff >89dB
Noise, rms 20Hz to 20kHz Mic Input E.I.N -129dBu
Main mix fader unity, Channel fader down <-95dBu(-97dB S/N)
Main mix fader unity, Channel fader unity <-82dBu(-86dB S/N)
Channel HPF 18dB/oct below 75Hz
Mono EQ - Lo +/-15dB shelving at 80Hz
Mono EQ - Mid +/-15dB peak at 100Hz to 8kHz
Mono EQ - Hi +/-15dB shelving 12kHz
Stereo EQ - Lo +/-15dB shelving at 80Hz
Stereo EQ - Mid-Lo +/-15dB peak at 500Hz
Stereo EQ - Hi-Mid +/-15dB peak at 3kHz
Stereo EQ - Hi +/-15dB shelving at 12kHz
DSP Converter 24-bit sigma-delt, 64/128-times oversampling, Sampling Rate 40kHz
USB Converter 24-bit sigma-delt, 64/128-times oversampling, Sampling Rate 40kHz
Power Supply 110-240VAC, 50/60kHz
Power Consumption 50 watts
Fuse 100-240VAC, T 1.6A, 250V, 5x20mm

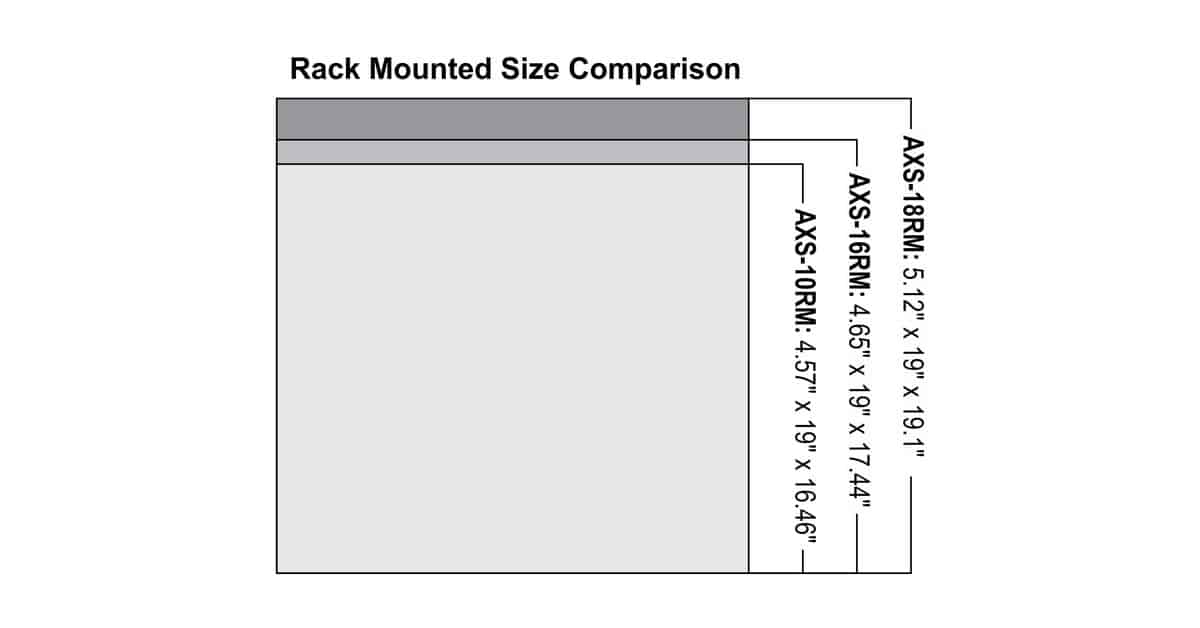

Dimensions 4.57" x 19" x 16.46" (116 x 483 x 418 mm)
Weight 11.7 lb (5.31 kgs)
Downloads
Manual ( PDF - 13.05 MB )
Cut Sheet ( PDF - 0.2 MB )
