THIS PRODUCT HAS BEEN DISCONTINUED.

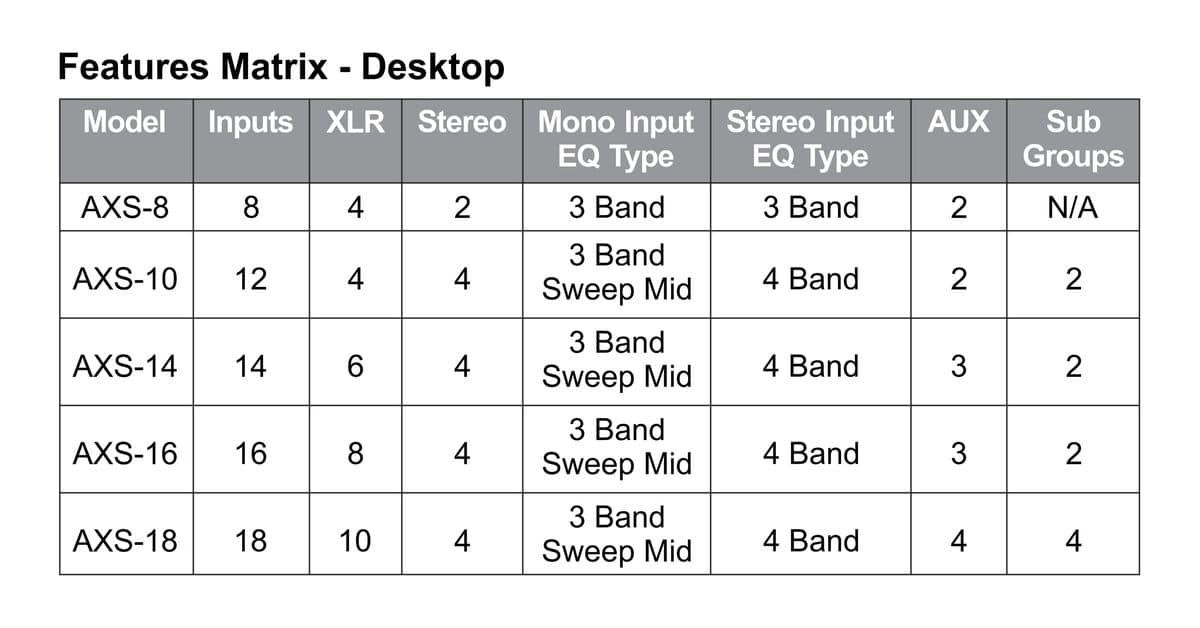

The AXS line features a full line of analog audio mixers. The AXS series offers 5 different desk top models with 3 available in a rack mount version. All models have a USB connection to link to a computer for stereo playback or recording and have +48V phantom power to the XLR inputs. Additionally, all mono inputs provide an easy to use single knob compression. Most models feature a 3 band EQ with sweep-able mid-range and low cut filter. All models include AUX sends on each channel which is either pre/post or switchable for monitoring/FX or external send.
All AXS models have built-in Studio Grade DSP FX with 16 effects. Effects include Reverb, Chorus, Flanger, Delay, Pitch Shifter, and Multi-Effects. Each effect has a storable user parameter and a tap button with a tempo light that provides for delay and echo settings.
Each channel also provides the user with Clip LEDs, Mute, Subgroup Routing, Solo, L/R Panning, and PFL. The mono channels also feature 1/4″ TRS inserts for flexible connection to outboard effects and processing. Whether used in a fixed install or on the road, the 60mm logarithmic faders and sealed rotary controls will provide clean, reliable sound.
- 10 Input, 4 XLR Mic Input & 4 Stereo Inputs
- 4 +48V Phantom Powered Mic Preamps
- 4 Easy to use Built-in Compressors
- 3 Band EQ with Sweep Mids on Each Channel
- 16 Effects with Tap
- USB Audio Interface
- 4 Channel Inserts
- 2 AUX Sends Per Channel
- PFL on Each Channel
- Balanced Main Outputs
- Headphone Output
- Control Room Controls
- 60 mm Logarithmic Faders
- Sealed Rotary Controls
- Switching Power Supply
