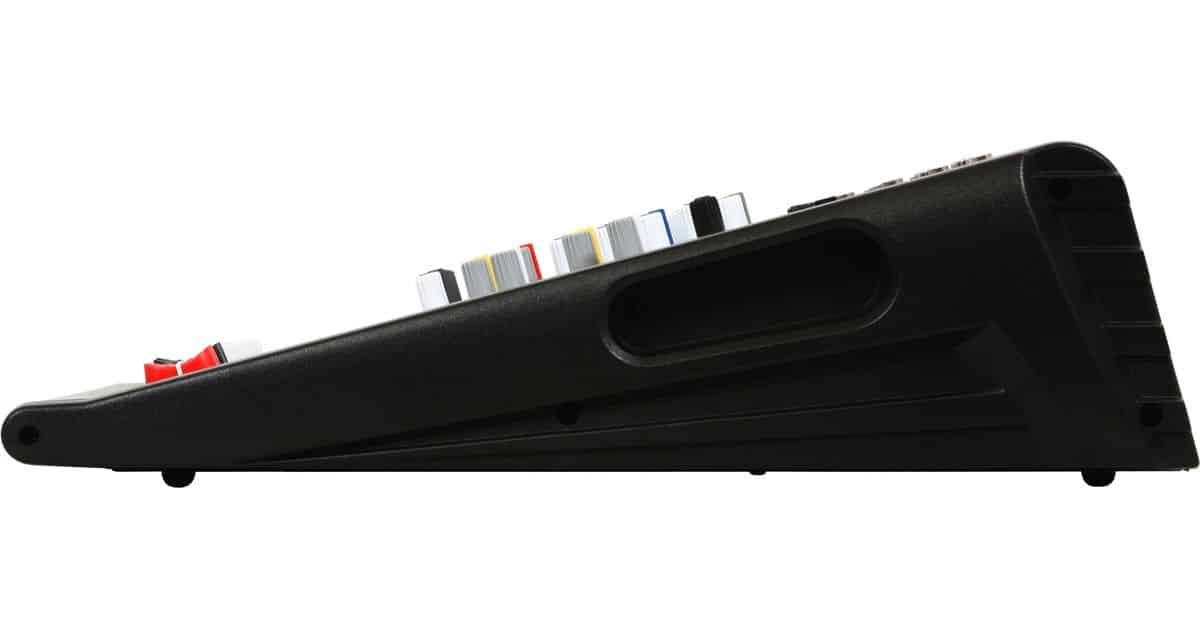

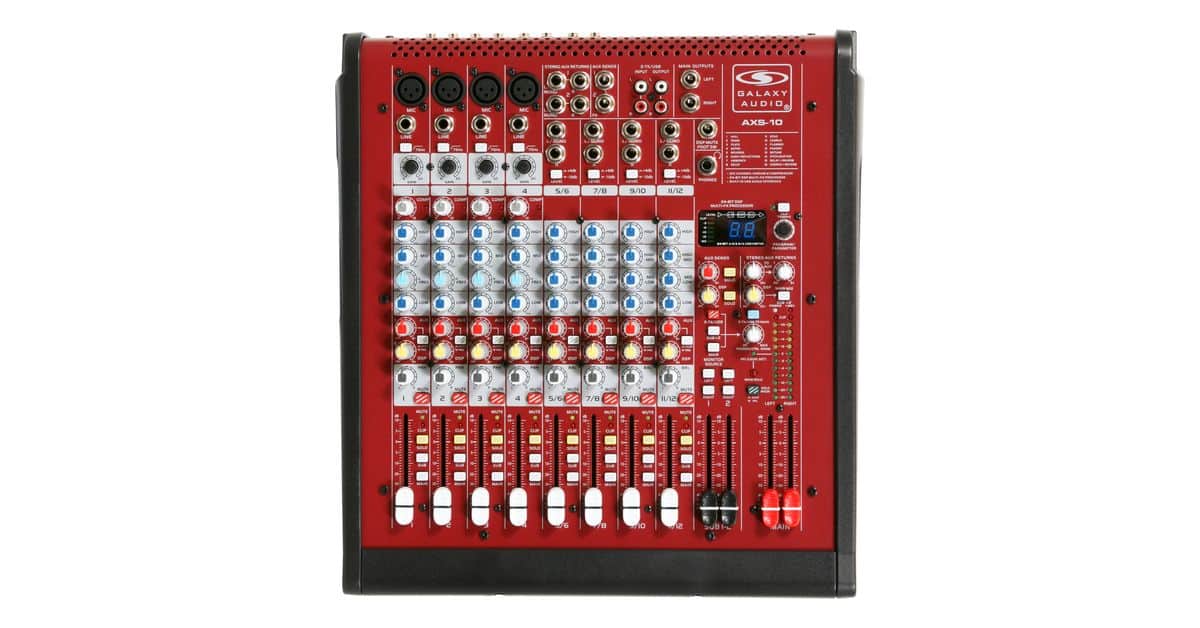

AXS-10 MIXER

THIS PRODUCT HAS BEEN DISCONTINUED.

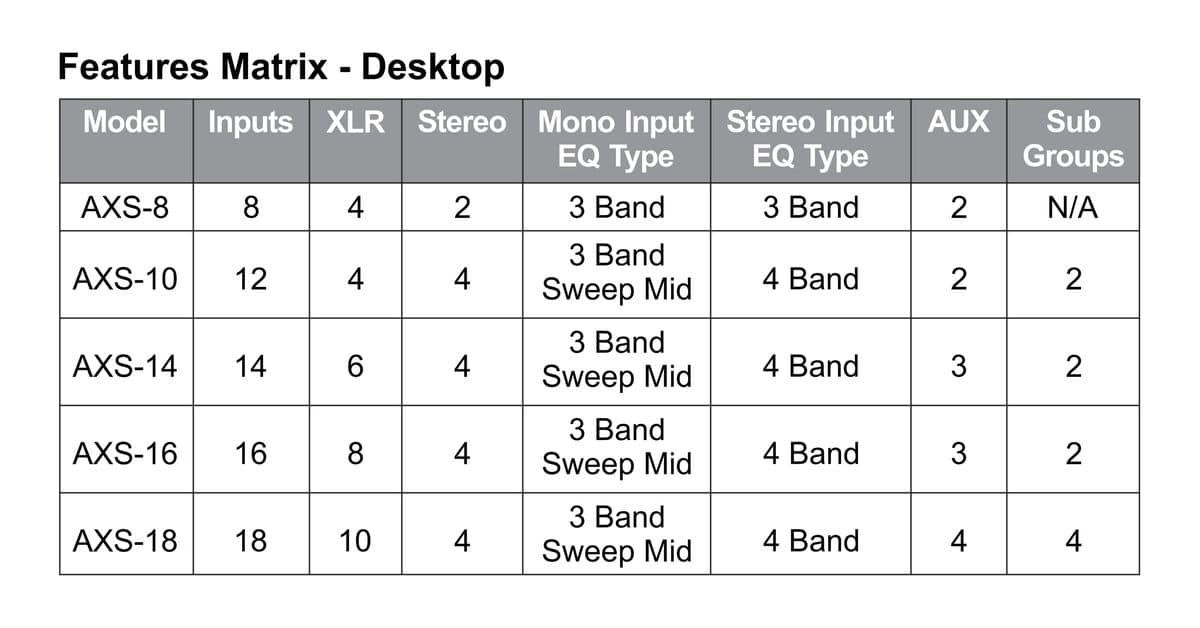

The AXS line features a full line of analog audio mixers. The AXS series offers 5 different desk top models with 3 available in a rack mount version. All models have a USB connection to link to a computer for stereo playback or recording and have +48V phantom power to the XLR inputs. Additionally, all mono inputs provide an easy to use single knob compression. Most models feature a 3 band EQ with sweep-able mid-range and low cut filter. All models include AUX sends on each channel which is either pre/post or switchable for monitoring/FX or external send.

All AXS models have built-in Studio Grade DSP FX with 16 effects. Effects include Reverb, Chorus, Flanger, Delay, Pitch Shifter, and Multi-Effects. Each effect has a storable user parameter and a tap button with a tempo light that provides for delay and echo settings.

Each channel also provides the user with Clip LEDs, Mute, Subgroup Routing, Solo, L/R Panning, and PFL. The mono channels also feature 1/4″ TRS inserts for flexible connection to outboard effects and processing. Whether used in a fixed install or on the road, the 60mm logarithmic faders and sealed rotary controls will provide clean, reliable sound.

• 10 Input, 4 XLR Mic Input & 4 Stereo Inputs
• 4 +48V Phantom Powered Mic Preamps
• 4 Easy to use Built-in Compressors
• 3 Band EQ with Sweep Mids on Each Channel
• 16 Effects with Tap
• USB Audio Interface
• 4 Channel Inserts
• 2 AUX Sends Per Channel
• PFL on Each Channel
• Balanced Main Outputs
• Headphone Output
• Control Room Controls
• 60 mm Logarithmic Faders
• Sealed Rotary Controls
• Switching Power Supply
