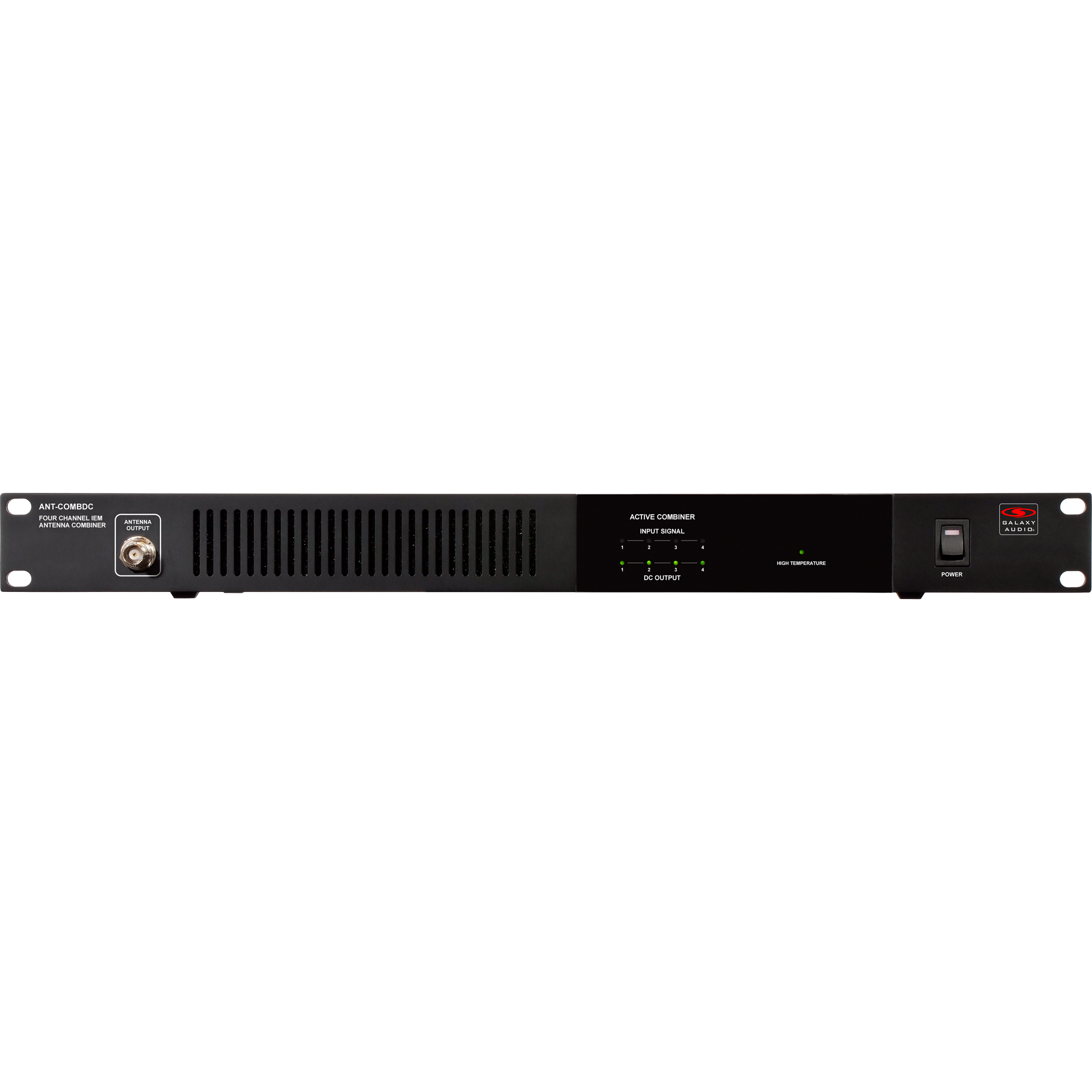

ANT-COMBDC
Four-Channel Wireless IEM Wideband Antenna Combiner
Clean Stage. Strong Signal. Simplified RF.
When running multiple wireless in-ear monitor transmitters, clutter and interference can quickly become a problem. The Galaxy Audio ANT-COMBDC Four Channel IEM Wideband Antenna Combiner eliminates antenna chaos by combining four transmitter antenna outputs into a single antenna — reducing stage clutter while improving RF performance.
Designed for professional installs, churches, touring rigs, and working musicians, the ANT-COMBDC keeps your wireless setup clean, reliable, and easy to manage.
Why Use an Antenna Combiner?
Running multiple IEM transmitters with separate antennas can cause:
- RF interference
- Intermodulation issues
- Stage clutter
- Reduced signal stability
The ANT-COMBDC combines four RF outputs into one antenna system, creating a cleaner, more controlled RF environment.
Features
- Combines 4 IEM Transmitters into 1 Antenna
- Wideband Operation: 450–950 MHz
- Front Mount Antenna Output (BNC)
- Rear Panel BNC Inputs
- DC Outputs to Power Transmitters
- Includes 4 BNC-BNC & 4 DC Power Cables
- Overload Protection
Power Your Entire IEM Rack
The ANT-COMBDC doesn’t just combine RF — it also simplifies power management. With built-in DC outputs, you can power up to four compatible IEM transmitters directly from the combiner. Fewer power supplies. Fewer wall warts. Cleaner rack builds.
